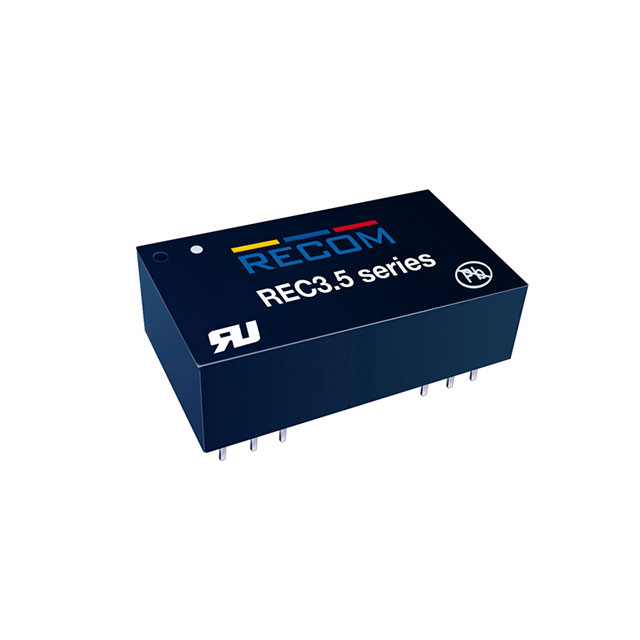

REC3.5-S_DRW/R Series

Isolated DC/DC Converters - Through Hole 3.5W DC/DC 10kV REG 5Vin 5Vout

Manufacturer: RECOM Power

Catalog

Isolated DC/DC Converters - Through Hole 3.5W DC/DC 10kV REG 5Vin 5Vout

Catalog

Isolated DC/DC Converters - Through Hole 3.5W DC/DC 10kV REG 5Vin 5Vout

...

Part	Package / Case	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Voltage - Output 1	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Voltage - Isolation	Control Features	Type	Power (Watts)	Mounting Type	Applications	Efficiency	Package / Case	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
RECOM Power REC3.5-4805DRW/R10/A/CTRL	24-DIP Module 7 Leads	2	75 V	36 V	85 °C	-40 °C	-5 V	5 V	350 mA	350 mA	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	Remote On/Off SCP	10 kV	Active Low Enable	Isolated Module	3.5 W	Through Hole	ITE (Commercial) Medical
RECOM Power REC3.5-0505DRW/R8/C	24-DIP Module	2	9 V	4.5 V	85 °C	-40 °C	-5 V	5 V	350 mA	350 mA	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	SCP	8 kV		Isolated Module	3.5 W	Through Hole	ITE (Commercial) Medical	77 %	9 PC Pad
RECOM Power REC3.5-4805DRW/R8/C	24-DIP Module	2	75 V	36 V	85 °C	-40 °C	-5 V	5 V	350 mA	350 mA	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	SCP	8 kV		Isolated Module	3.5 W	Through Hole	ITE (Commercial) Medical		9 PC Pad
RECOM Power REC3.5-1212SRW/R8/A	24-DIP Module 6 Leads	1	18 V	9 V	85 °C	-40 °C		12 V		290 mA	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	SCP	8 kV		Isolated Module	3.5 W	Through Hole	ITE (Commercial) Medical
RECOM Power REC3.5-0515DRW/R8/C	24-DIP Module	2	9 V	4.5 V	85 °C	-40 °C	-15 V	15 V			0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	SCP	8 kV		Isolated Module	3.5 W	Through Hole	ITE (Commercial) Medical	80 %	9 PC Pad	117 mA	117 mA
RECOM Power REC3.5-4809DRW/R10/A/X1	24-DIP Module 6 Leads	2	75 V	36 V	85 °C	-40 °C	-9 V	9 V			0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	SCP UVLO	10 kV		Isolated Module	3.5 W	Through Hole	ITE (Commercial) Medical	83 %			194 mA	194 mA
RECOM Power REC3.5-1205DRW/R8/C	24-DIP Module	2	18 V	9 V	85 °C	-40 °C	-5 V	5 V	350 mA	350 mA	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	SCP	8 kV		Isolated Module	3.5 W	Through Hole	ITE (Commercial) Medical	80 %	9 PC Pad
RECOM Power REC3.5-0512DRW/R8/C	24-DIP Module	2	9 V	4.5 V	85 °C	-40 °C	-12 V	12 V			0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	SCP	8 kV		Isolated Module	3.5 W	Through Hole	ITE (Commercial) Medical		9 PC Pad	145 mA	145 mA
RECOM Power REC3.5-4824SRW/R8/A/CTRL/X1	24-DIP Module 7 Leads	1	75 V	36 V	85 °C	-40 °C		24 V		145 mA	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	Remote On/Off SCP UVLO	8 kV	Active Low Enable	Isolated Module	3.5 W	Through Hole	ITE (Commercial) Medical	85 %
RECOM Power REC3.5-0512DRW/R8/A	24-DIP Module 6 Leads	2	9 V	4.5 V	85 °C	-40 °C	-12 V	12 V			0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	SCP	8 kV		Isolated Module	3.5 W	Through Hole	ITE (Commercial) Medical			145 mA	145 mA
