65771 Series

Catalog

MINI JUMP 2POS 200CC

Part	Color	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Gender	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Material Flammability Rating	Height [z]	Height [z]	Contact Finish	Type	Pitch [x]	Pitch [x]	Housing Material	Contact Finish Thickness

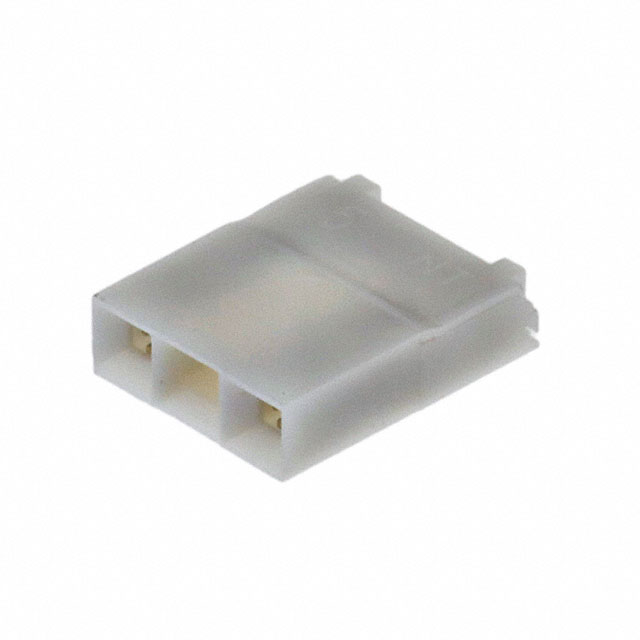

Amphenol ICC (FCI) 65771-001LF	White	1.02 Ám	40 Áin	2.5 A	Female Sockets	1 x 2	2	UL94 V-0	9.55 mm	0.376 in	Gold or Gold GXT™	Closed Top	0.2 in	5.08 mm	Polyester Thermoplastic

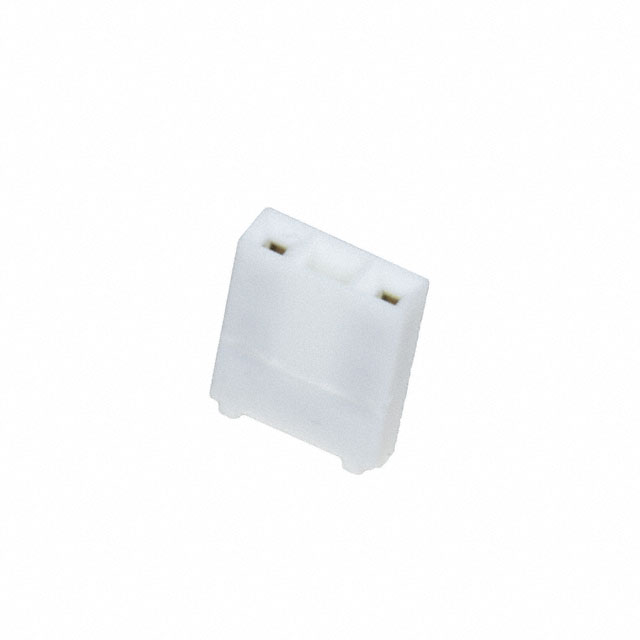

Amphenol ICC (FCI) 65771-001	White	1.02 Ám	40 Áin	2.5 A	Female Sockets	1 x 2	2	UL94 V-0	9.55 mm	0.376 in	Gold or Gold GXT™	Closed Top	0.2 in	5.08 mm	Polyester Thermoplastic
Amphenol ICC (FCI) 65771-004	White			2.5 A	Female Sockets	1 x 2	2	UL94 V-0	9.55 mm	0.376 in	Gold	Closed Top	0.2 in	5.08 mm	Polybutylene Terephthalate (PBT)	Flash

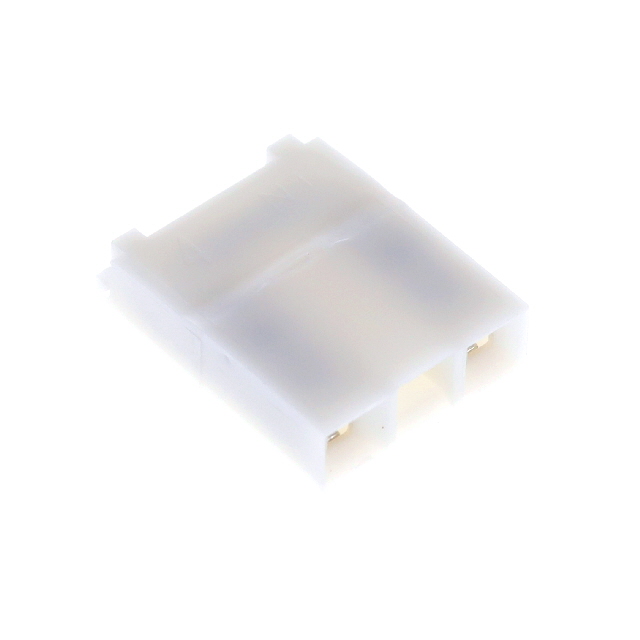

Amphenol ICC (FCI) 65771-002LF	White	2.54 µm	100 µin	2.5 A	Female Sockets	1 x 2	2	UL94 V-0	9.55 mm	0.376 in	Tin	Closed Top	0.2 in	5.08 mm	Polyester Thermoplastic
Amphenol ICC (FCI) 65771-002	White			2.5 A	Female Sockets	1 x 2	2	UL94 V-0	9.55 mm	0.376 in	Tin-Lead	Closed Top	0.2 in	5.08 mm	Polybutylene Terephthalate (PBT)
