110-87 Series
Manufacturer: Preci-Dip
Catalog
CONN IC DIP SOCKET 16POS GOLD
| Part | Pitch - Mating | Features | Contact Material - Mating | Contact Finish - Post | Mounting Type | Contact Finish - Mating | Row Spacing | Type | Grid Rows | Number of Positions or Pins (Grid) | Grid Columns | Termination | Pitch - Post | Housing Material | Contact Material - Post | Operating Temperature (Max) | Operating Temperature (Min) | Contact Finish Thickness - Mating | Material Flammability Rating | Termination Post Length | Current Rating | Contact Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

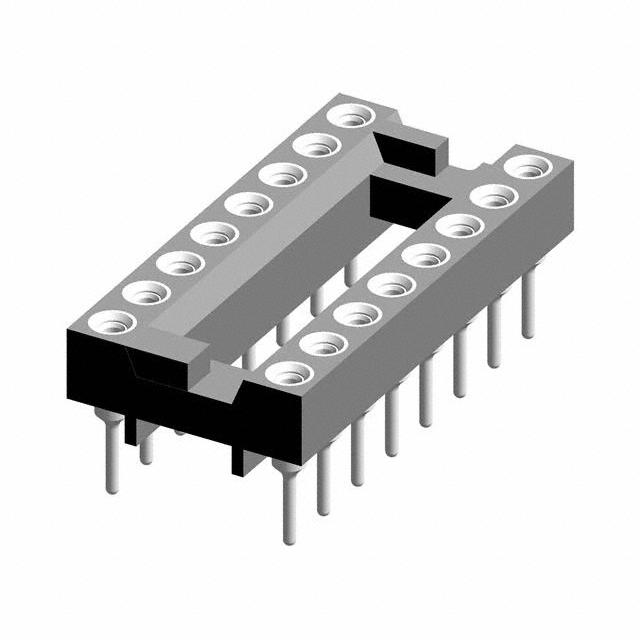

 Preci-Dip | 0.1 in | Open Frame | Beryllium Copper | Tin | Through Hole | Gold | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | 2 | 16 | 8 | Solder | 0.1 in | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Brass | 125 °C | -55 °C | Flash | UL94 V-0 | 0.125 in | 1 A | 10 mOhm |

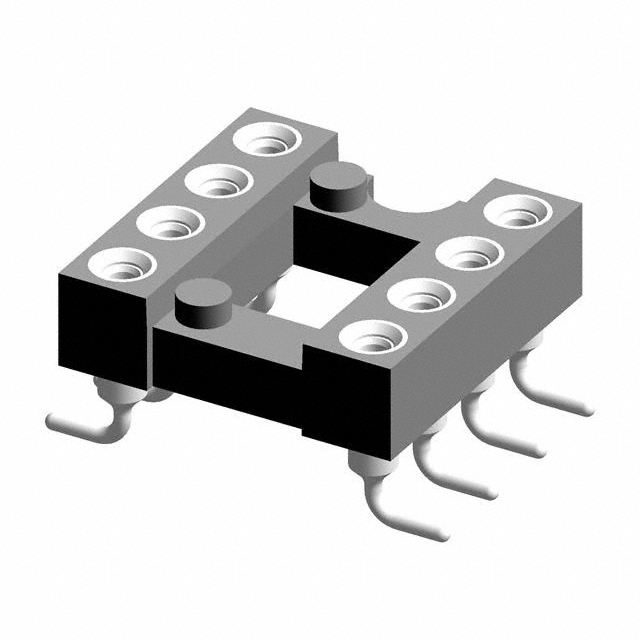

 Preci-Dip | 0.1 in | Open Frame | Beryllium Copper | Tin | Surface Mount | Gold | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | 2 | 8 | 4 | Solder | 0.1 in | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Brass | 125 °C | -55 °C | Flash | UL94 V-0 | 0.118 in | 1 A | 10 mOhm |

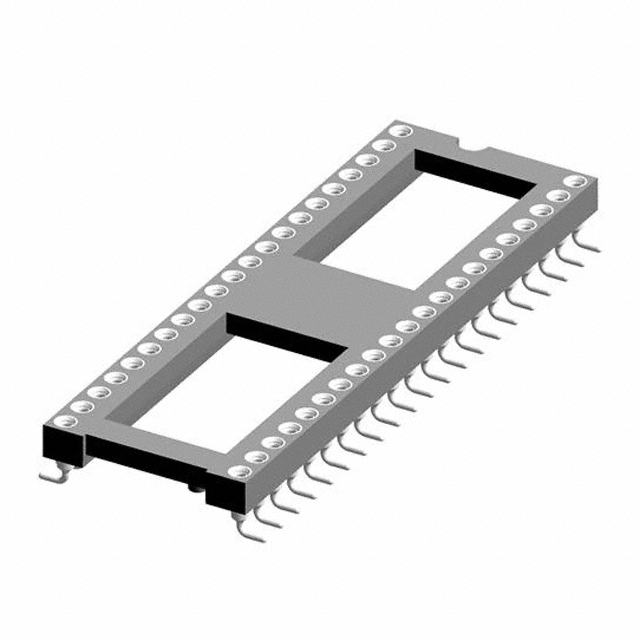

 Preci-Dip | 0.1 in | Open Frame | Beryllium Copper | Tin | Surface Mount | Gold | 0.6 in | 0.6" (15.24mm) Row Spacing DIP | 2 | 42 | 21 | Solder | 0.1 in | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Brass | 125 °C | -55 °C | Flash | UL94 V-0 | 0.118 in | 1 A | 10 mOhm |

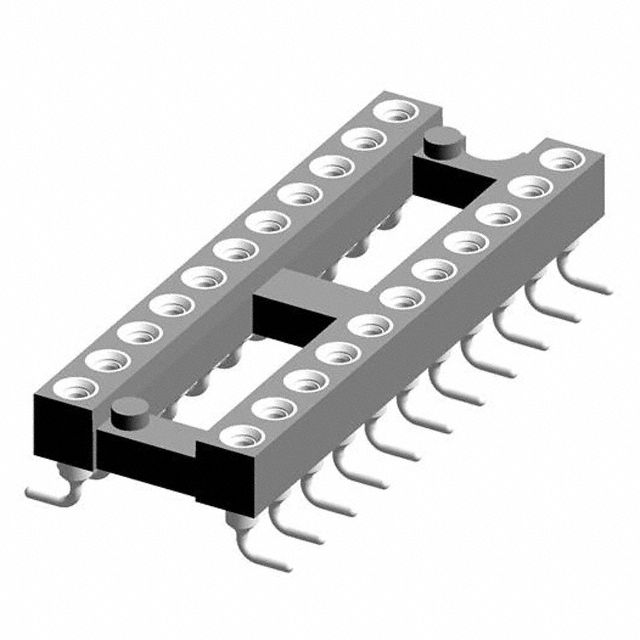

 Preci-Dip | 0.1 in | Open Frame | Beryllium Copper | Tin | Surface Mount | Gold | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | 2 | 22 | 11 | Solder | 0.1 in | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Brass | 125 °C | -55 °C | Flash | UL94 V-0 | 0.118 in | 1 A | 10 mOhm |
 Preci-Dip | 0.1 in | Open Frame | Beryllium Copper | Tin | Surface Mount | Gold | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | 2 | 14 | 7 | Solder | 0.1 in | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Brass | 125 °C | -55 °C | Flash | UL94 V-0 | 0.118 in | 1 A | 10 mOhm |
 Preci-Dip | 0.1 in | Open Frame | Beryllium Copper | Tin | Through Hole | Gold | 0.9 in | 0.9" (22.86mm) Row Spacing DIP | 2 | 50 | 25 | Solder | 0.1 in | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Brass | 125 °C | -55 °C | Flash | UL94 V-0 | 0.125 in | 1 A | 10 mOhm |

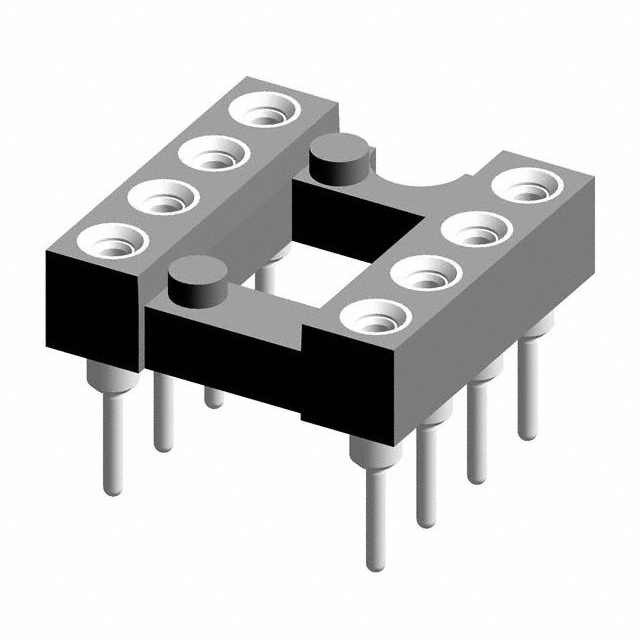

 Preci-Dip | 0.1 in | Open Frame | Beryllium Copper | Tin | Through Hole | Gold | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | 2 | 8 | 4 | Solder | 0.1 in | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Brass | 125 °C | -55 °C | Flash | UL94 V-0 | 0.125 in | 1 A | 10 mOhm |
Preci-Dip | 0.1 in | Open Frame | Beryllium Copper | Tin | Surface Mount | Gold | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | 2 | 10 | 5 | Solder | 0.1 in | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Brass | 125 °C | -55 °C | Flash | UL94 V-0 | 0.118 in | 1 A | 10 mOhm |

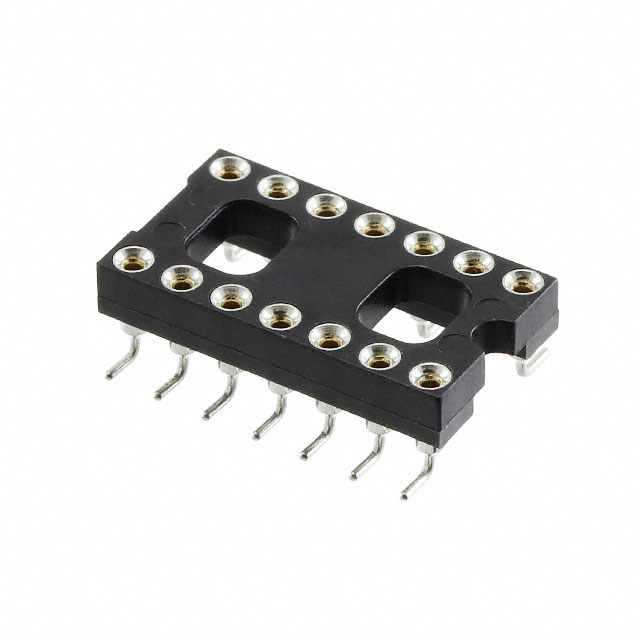

 Preci-Dip | 0.1 in | Open Frame | Beryllium Copper | Tin | Surface Mount | Gold | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | 2 | 14 | 7 | Solder | 0.1 in | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Brass | 125 °C | -55 °C | Flash | UL94 V-0 | 0.118 in | 1 A | 10 mOhm |

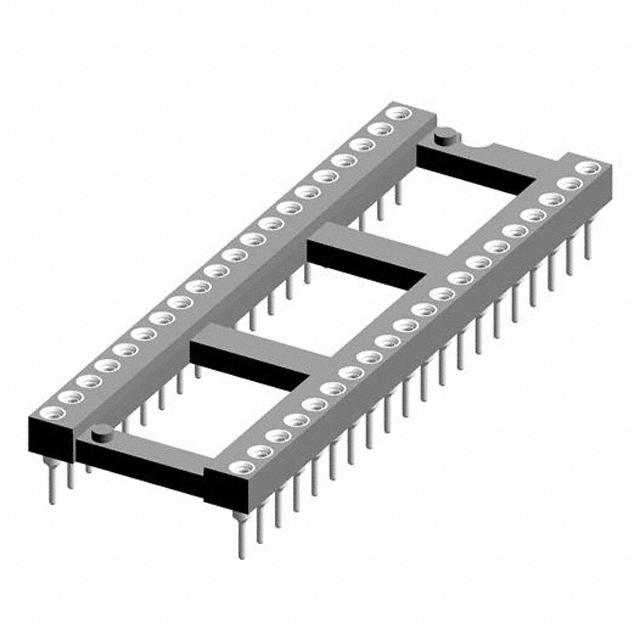

 Preci-Dip | 0.1 in | Open Frame | Beryllium Copper | Tin | Through Hole | Gold | 0.6 in | 0.6" (15.24mm) Row Spacing DIP | 2 | 40 | 20 | Solder | 0.1 in | Glass Filled PCT Polycyclohexylenedimethylene Terephthalate Polyester | Brass | 125 °C | -55 °C | Flash | UL94 V-0 | 1 A | 10 mOhm |
