284541 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

4 POS TERMI-BLOK 900 SF 3,81 M

Part	Type	Contact Tail Length	Contact Tail Length	Insulation Height	Insulation Height	Contact Material	Positions Per Level	Contact Mating Finish	Termination Style	Color	Current - UL	Header Orientation	Number of Levels	Pitch [x]	Pitch [x]	Voltage - UL	Mounting Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Features	Number of Positions

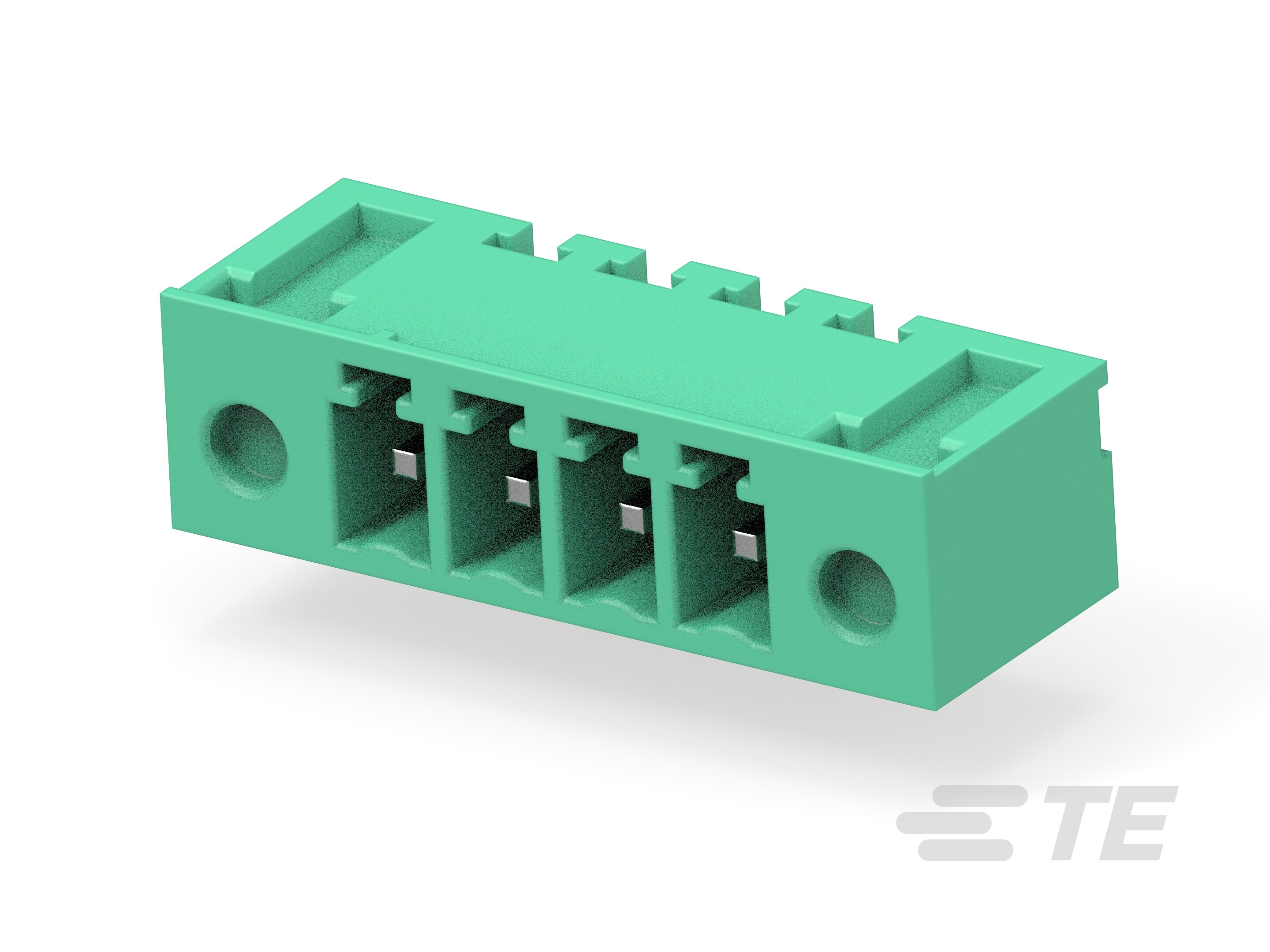

TE Connectivity Raychem Cable Protection 284541-4	Header Male Pins Shrouded (4 Side)	3.4 mm	0.134 in	0.285 in	7.25 mm	Phosphor Bronze	4	Tin	Solder	Green	11 A	90° Right Angle	1	0.15 in	3.81 mm	300 V	Through Hole	UL94 V-0	-40 °C	110 °C	4	Mating Flange
TE Connectivity Raychem Cable Protection 284541-9	Header Male Pins Shrouded (4 Side)	3.4 mm	0.134 in	0.285 in	7.25 mm	Phosphor Bronze	9	Tin	Solder	Green	11 A	90° Right Angle	1	0.15 in	3.81 mm	300 V	Through Hole	UL94 V-0	-40 °C	110 °C	9	Mating Flange
TE Connectivity Raychem Cable Protection 1-284541-6	Header Male Pins Shrouded (4 Side)	3.4 mm	0.134 in	0.285 in	7.25 mm	Phosphor Bronze	16	Tin	Solder	Green	11 A	90° Right Angle	1	0.15 in	3.81 mm	300 V	Through Hole	UL94 V-0	-40 °C	110 °C		Mating Flange	16

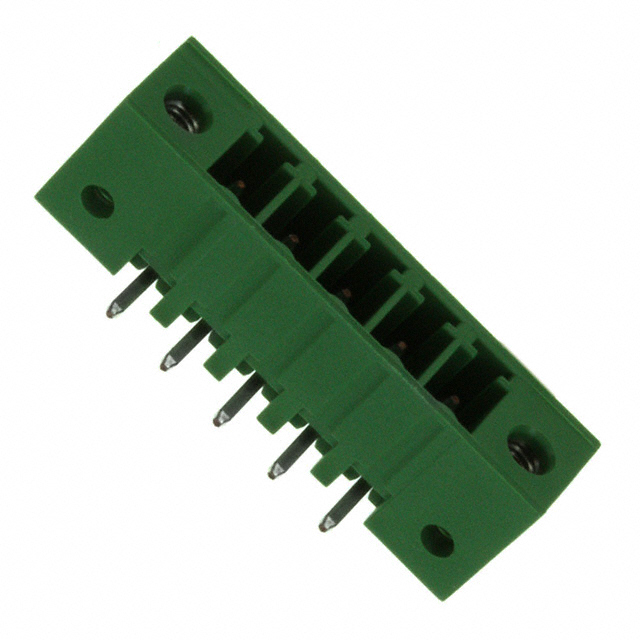

TE Connectivity Raychem Cable Protection 284541-5	Header Male Pins Shrouded (4 Side)	3.4 mm	0.134 in	0.285 in	7.25 mm	Phosphor Bronze	5	Tin	Solder	Green	11 A	90° Right Angle	1	0.15 in	3.81 mm	300 V	Through Hole	UL94 V-0	-40 °C	110 °C		Mating Flange

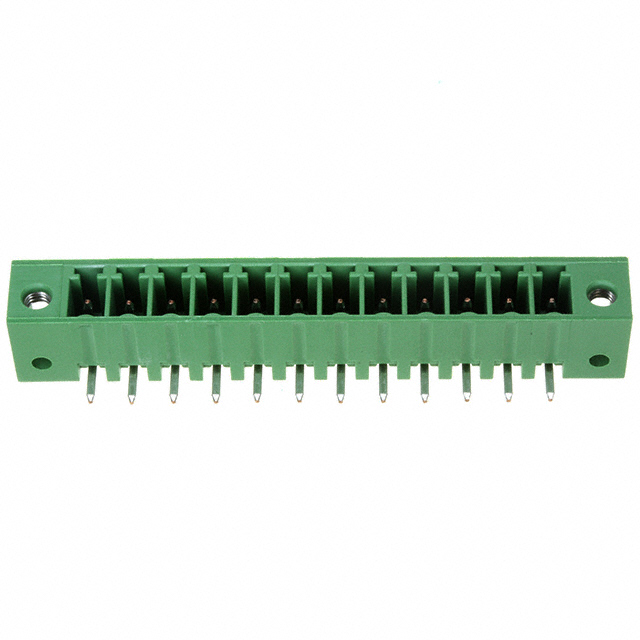

TE Connectivity Raychem Cable Protection 1-284541-2	Header Male Pins Shrouded (4 Side)	3.4 mm	0.134 in	0.285 in	7.25 mm	Phosphor Bronze	12	Tin	Solder	Green	11 A	90° Right Angle	1	0.15 in	3.81 mm	300 V	Through Hole	UL94 V-0	-40 °C	110 °C	12	Mating Flange
