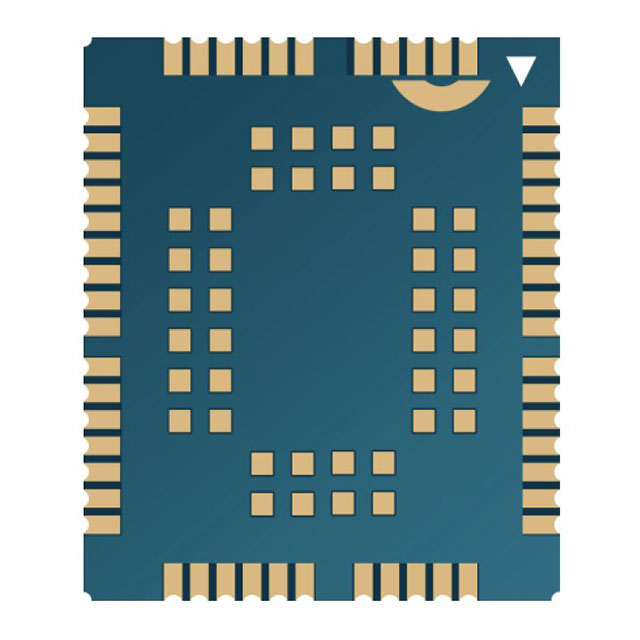

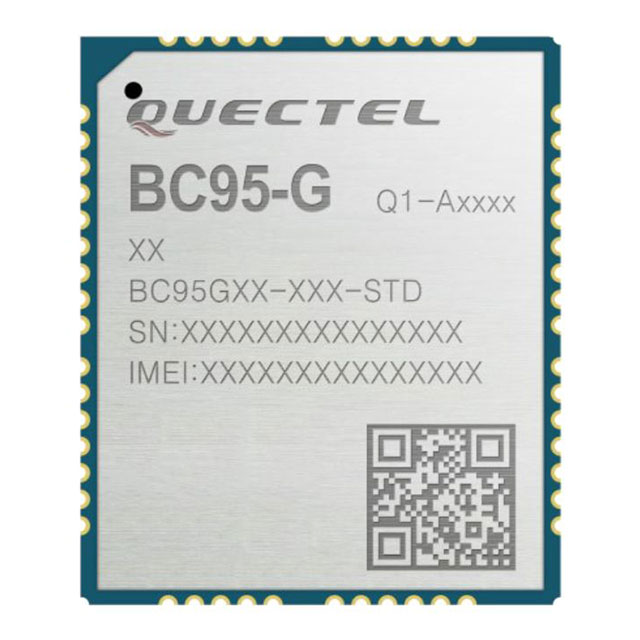

BC95 Series

Manufacturer: Quectel

Catalog

RF TXRX MODULE CELL SMD

Part	Current - Transmitting (Min)	Current - Transmitting (Max)	Power - Output	Frequency	Frequency	RF Family/Standard	Protocol	Data Rate	Mounting Type	Sensitivity	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Current - Receiving	Serial Interfaces	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Antenna Type

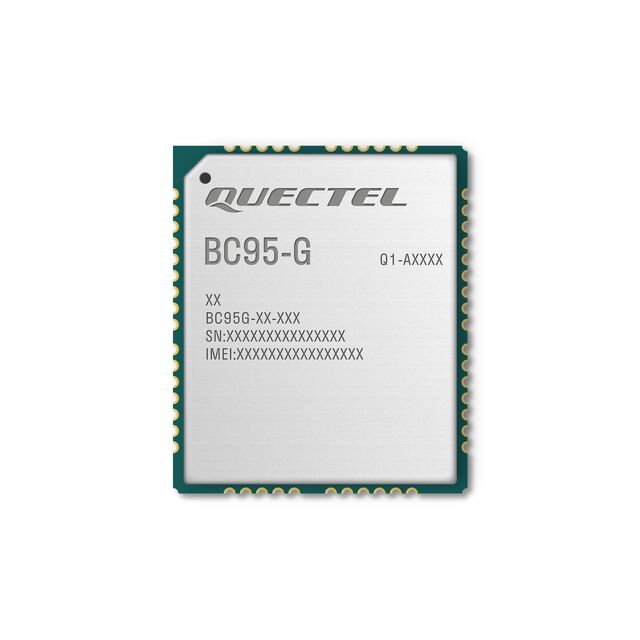

Quectel BC95GJB-02-SBK	70 mA	280 mA	23 dBm	1.8GHz 2.1GHz 700MHz 800MHz 850MHz 900MHz	1.8 GHz 2.1 GHz 700 MHz 800 MHz 850 MHz 900 MHz	Cellular	GPRS GSM LTE	150 kbps	Surface Mount	-129 dBm	4.2 V	3.1 V	60 mA	ADC UART	Module	75 °C	-35 °C

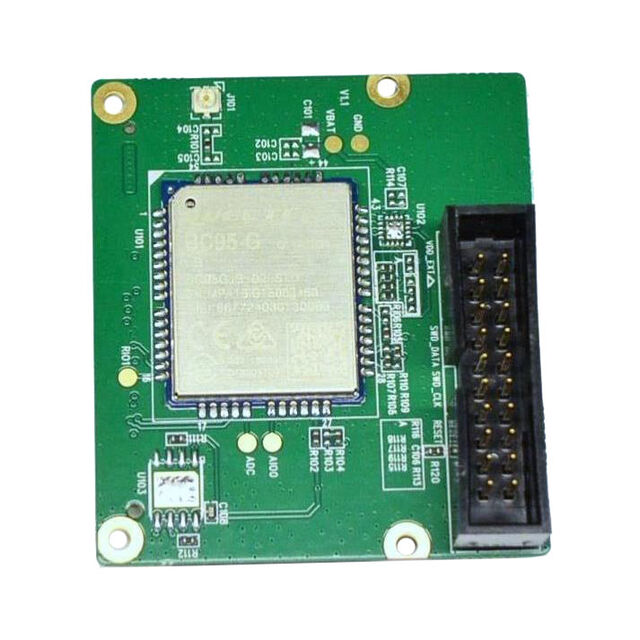

Quectel BC95GJBTEA-02-STD	70 mA	280 mA	23 dBm	1.8GHz 2.1GHz 700MHz 800MHz 850MHz 900MHz	1.8 GHz 2.1 GHz 700 MHz 800 MHz 850 MHz 900 MHz	Cellular	GPRS GSM LTE	150 kbps	Surface Mount	-129 dBm	4.2 V	3.1 V	60 mA	ADC UART	Module	75 °C	-35 °C	Antenna Not Included
Quectel BC95GVBA-I01-ATEX	70 mA	280 mA	23 dBm	1.8GHz 2.1GHz 700MHz 800MHz 850MHz 900MHz	1.8 GHz 2.1 GHz 700 MHz 800 MHz 850 MHz 900 MHz	Cellular	GPRS GSM LTE	150 kbps	Surface Mount	-129 dBm	4.2 V	3.1 V	60 mA	ADC UART	Module	75 °C	-35 °C
Quectel BC95GJB-02-STD	70 mA	280 mA	23 dBm	1.8GHz 2.1GHz 700MHz 800MHz 850MHz 900MHz	1.8 GHz 2.1 GHz 700 MHz 800 MHz 850 MHz 900 MHz	Cellular	GPRS GSM LTE	150 kbps	Surface Mount	-129 dBm	4.2 V	3.1 V	60 mA	ADC UART	Module	75 °C	-35 °C	Antenna Not Included
Quectel BC95GVBA-I01-SBK	70 mA	280 mA	23 dBm	1.8GHz 2.1GHz 700MHz 800MHz 850MHz 900MHz	1.8 GHz 2.1 GHz 700 MHz 800 MHz 850 MHz 900 MHz	Cellular	GPRS GSM LTE	150 kbps	Surface Mount	-129 dBm	4.2 V	3.1 V	60 mA	ADC UART	Module	75 °C	-35 °C
Quectel BC95GVBA-I01-CNASA	70 mA	280 mA	23 dBm	1.8GHz 2.1GHz 700MHz 800MHz 850MHz 900MHz	1.8 GHz 2.1 GHz 700 MHz 800 MHz 850 MHz 900 MHz	Cellular	GPRS GSM LTE	150 kbps	Surface Mount	-129 dBm	4.2 V	3.1 V	60 mA	ADC UART	Module	75 °C	-35 °C
Quectel BC95GJB-02-ATEX	70 mA	280 mA	23 dBm	1.8GHz 2.1GHz 700MHz 800MHz 850MHz 900MHz	1.8 GHz 2.1 GHz 700 MHz 800 MHz 850 MHz 900 MHz	Cellular	GPRS GSM LTE	150 kbps	Surface Mount	-129 dBm	4.2 V	3.1 V	60 mA	ADC UART	Module	75 °C	-35 °C
