BC084 Series

Manufacturer: GCT

Catalog

CONN RCPT 6POS 0.039 GOLD SMD

Part	Contact Shape	Contact Finish Thickness - Post	Contact Material	Insulation Material	Connector Type	Number of Positions	Material Flammability Rating	Current Rating (Amps)	Voltage Rating	Contact Finish - Mating	Contact Type	Contact Finish - Post	Contact Finish Thickness - Mating	Features	Mounting Type	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Termination

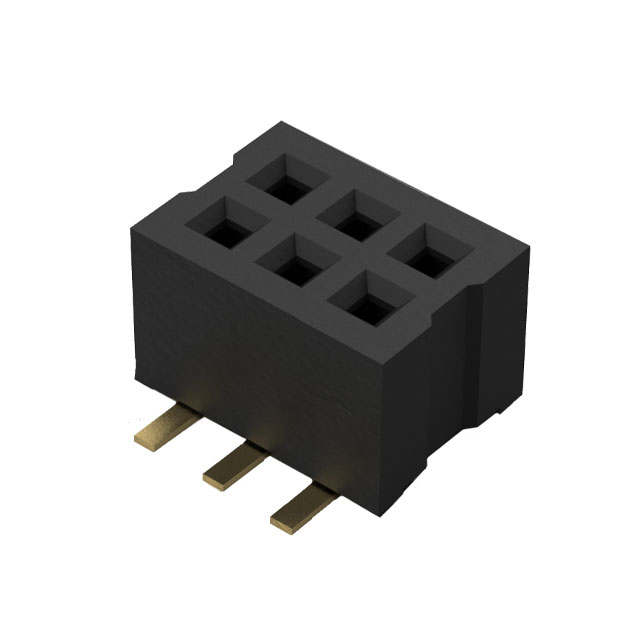

GCT BC084-06-A-0390-L-C	Square	Flash	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Receptacle Bottom or Top Entry	6	UL94 V-0	1 A	250 VAC	Gold	Female Socket	Gold	Flash	Board Guide	Surface Mount	2	-40 C	105 ░C	1 mm	0.039 in	Black	All	0.039 in	1 mm	Push-Pull	Solder

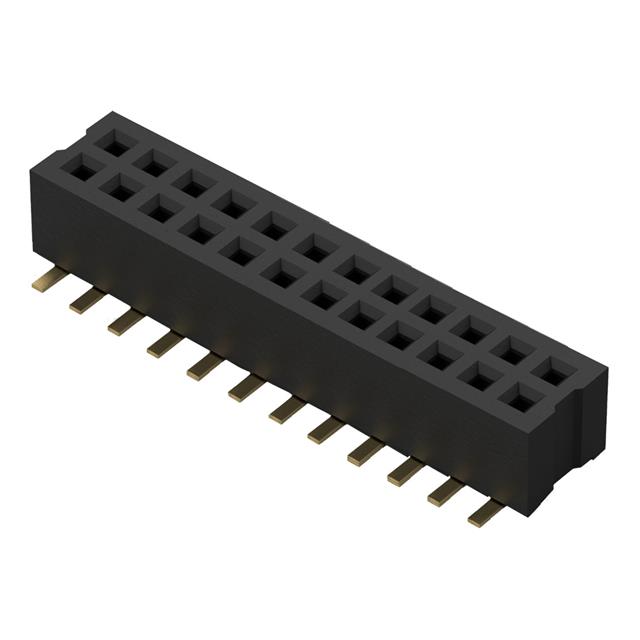

GCT BC084-24-A-0390-L-C	Square	Flash	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Receptacle Bottom or Top Entry	24	UL94 V-0	1 A	250 VAC	Gold	Female Socket	Gold	Flash	Board Guide	Surface Mount	2	-40 C	105 ░C	1 mm	0.039 in	Black	All	0.039 in	1 mm	Push-Pull	Solder

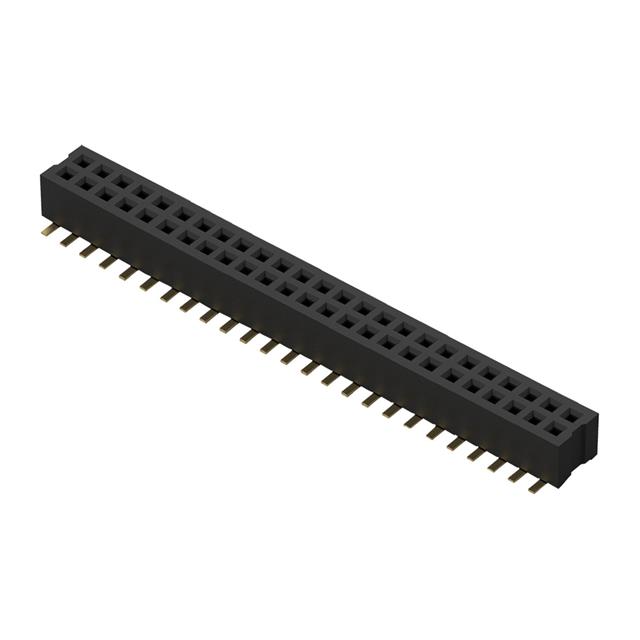

GCT BC084-50-A-0390-L-C	Square	Flash	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Receptacle Bottom or Top Entry	50	UL94 V-0	1 A	250 VAC	Gold	Female Socket	Gold	Flash	Board Guide	Surface Mount	2	-40 C	105 ░C	1 mm	0.039 in	Black	All	0.039 in	1 mm	Push-Pull	Solder

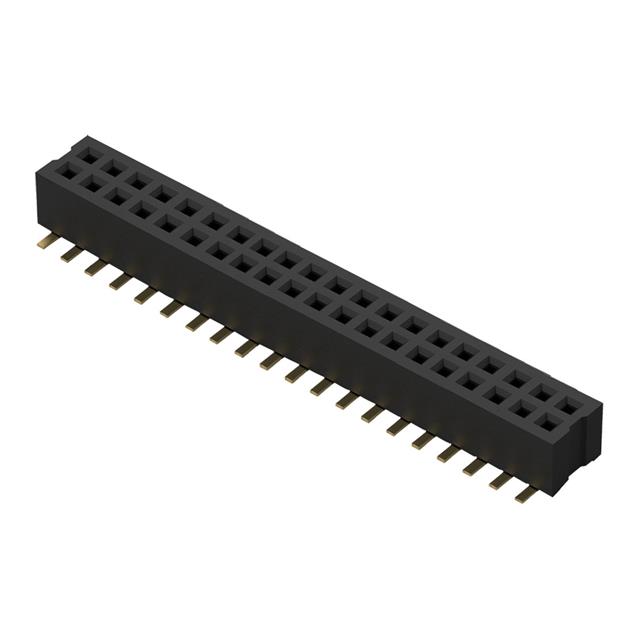

GCT BC084-40-A-0390-L-C	Square	Flash	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Receptacle Bottom or Top Entry	40	UL94 V-0	1 A	250 VAC	Gold	Female Socket	Gold	Flash	Board Guide	Surface Mount	2	-40 C	105 ░C	1 mm	0.039 in	Black	All	0.039 in	1 mm	Push-Pull	Solder
