044193 Series
Manufacturer: Molex
Beta
⌘K

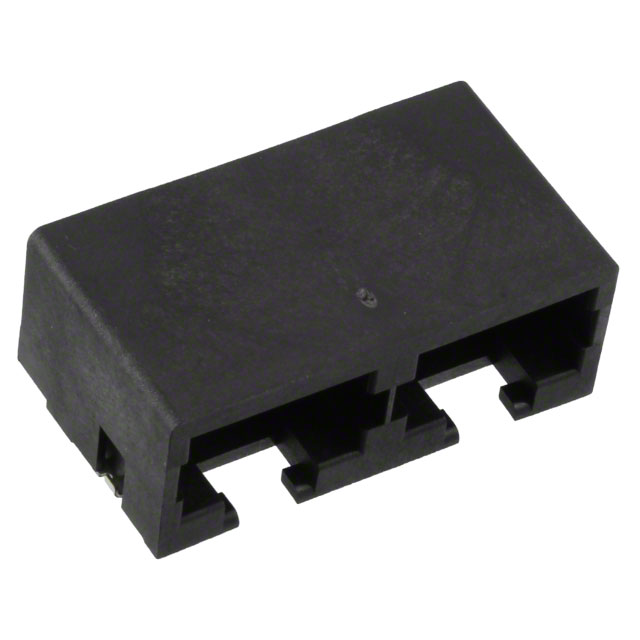

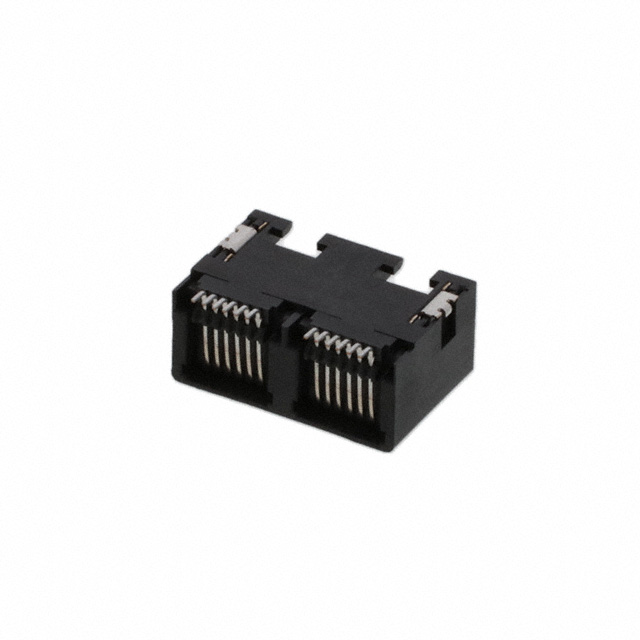

CONN MOD JACK 6P4C R/A UNSHLD
| Part | Connector Type | Tab Direction | Termination | Orientation | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Ratings | Contact Material | LED Color | Contact Finish | Mounting Type | Number of Positions/Contacts | Features | Number of Ports | Contact Finish Thickness | Contact Finish Thickness | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Jack | Down | Solder | 90 ° | Unshielded | -40 °C | 70 °C | Polyamide (PA) Nylon Glass Filled | Cat4 | Phosphor Bronze | Does Not Contain LED | Gold | Surface Mount | 6p4c | Solder Retention | 2 | 15 µin | 0.38 µm | 1 |
Molex | |||||||||||||||||||
 Molex | Jack | Down | Solder | 90 ° | Unshielded | -40 °C | 70 °C | Polyamide (PA) Nylon Glass Filled | Cat4 | Phosphor Bronze | Does Not Contain LED | Gold | Surface Mount | 6p6c (RJ11 RJ12 RJ14 RJ25) | Solder Retention | 2 | 50 µin | 1.27 µm | 1 |
Molex | Jack | Down | Solder | 90 ° | Unshielded | -40 °C | 70 °C | Polyamide (PA) Nylon Glass Filled | Cat4 | Phosphor Bronze | Does Not Contain LED | Gold | Surface Mount | 8p8c (RJ45 Ethernet) | Solder Retention | 2 | 30 Áin | 0.76 Ám | 1 |
 Molex | Jack | Down | Solder | 90 ° | Unshielded | -40 °C | 70 °C | Polyamide (PA) Nylon Glass Filled | Cat3 | Phosphor Bronze | Does Not Contain LED | Gold | Surface Mount | 8p8c (RJ45 Ethernet) | Solder Retention | 2 | 50 µin | 1.27 µm | 1 |
Molex | Jack | Down | Solder | 90 ° | Unshielded | -40 °C | 70 °C | Polyamide (PA) Nylon Glass Filled | Cat4 | Phosphor Bronze | Does Not Contain LED | Gold | Surface Mount | 6p4c | Solder Retention | 2 | 30 Áin | 0.76 Ám | 1 |
Molex | Jack | Down | Solder | 90 ° | Unshielded | -40 °C | 70 °C | Polyamide (PA) Nylon Glass Filled | Cat4 | Phosphor Bronze | Does Not Contain LED | Gold | Surface Mount | 6p6c (RJ11 RJ12 RJ14 RJ25) | Solder Retention | 2 | 15 µin | 0.38 µm | 1 |
