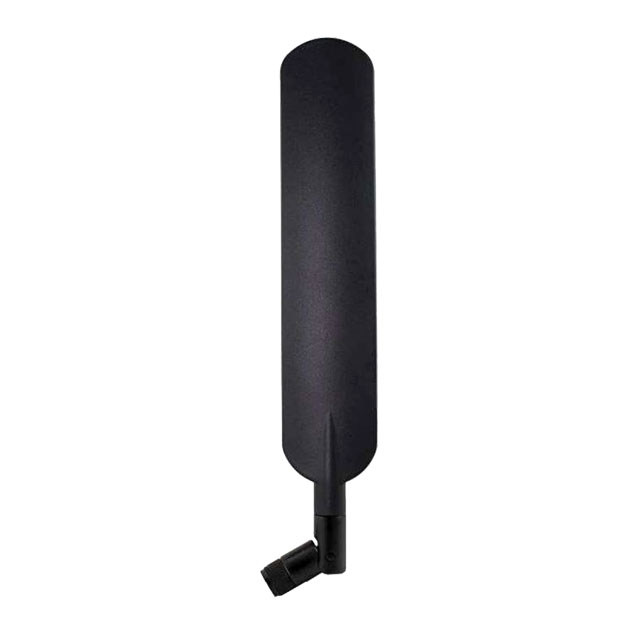

AETC2303 Series

Catalog

LTE 4G/5G & WI-FI 6E WHIP ANTENN

Part	Frequency Range [Max]	Frequency Range [Min]	Frequency Group	RF Family/Standard	Gain	VSWR	Applications	Mounting Type	Return Loss	Number of Bands	Frequency (Center/Band)	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Power - Max [Max]	Antenna Type
Abracon LLC AETC2303XS-SS	1.575 GHz 2.69 GHz 4.2 GHz 5 GHz 7.125 GHz 960 MHz	1.452 GHz 1.71 GHz 3.3 GHz 4.4 GHz 5.15 GHz 617 MHz	Wide Band	Cellular WiFi	2 dBi 2.5 dBi 3 dBi	3	2G 3G 4G 5G IoT LTE M2M UWB	Connector Mount	12 dB	6	1.513 GHz 2.2 GHz 3.75 GHz 4.7 GHz 6.137 GHz 788.5 MHz	9.331 in	237 mm	500 mW	Tilt Whip
