DD12.2321 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Filter	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Filter Type	Termination	Termination	Termination	Accomodates a Fuse	Material Flammability Rating	Connector Style	Current Rating - Appliance Inlet	Fuse Holder, Drawer	Features	Approval Agency	Switch Features	Voltage Rating - Appliance Inlet	Connector Type	Panel Thickness	Panel Thickness	Mounting Type	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]
SCHURTER Inc. DD12.2321.111	2 A	29.8 mm	49.3 mm	IP40	Filtered (EMI RFI) - Commercial Medical	6.3 mm	Quick Connect	0.25 "		UL94 V-0	IEC 320-C14	10 A	Drawer Sold Separate	Earth Line Choke Shielded V-Lock Notch	cURus ENEC	Switch On-Off	250 VAC	Receptacle Male Blades - Module	8 mm	0.315 in	Flange Panel Mount

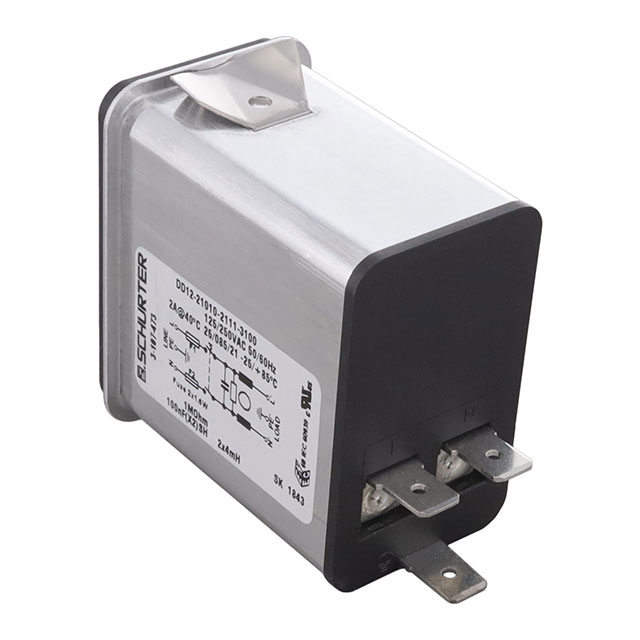

SCHURTER Inc. DD12.2321.131	2 A	29.8 mm	49.3 mm	IP40	Filtered (EMI RFI) - Commercial Medical	6.3 mm	Quick Connect	0.25 "		UL94 V-0	IEC 320-C14	10 A	Drawer Sold Separate	Earth Line Choke Shielded V-Lock Notch	cURus ENEC	Switch On-Off	250 VAC	Receptacle Male Blades - Module			Panel Mount Snap-In	0.118 in	3 mm	1 mm	0.039 in
