TLV62150A Series

4-17V, 1A STEP-DOWN CONVERTER with DCS-Control in 3x3 QFN Package

Catalog

4-17V, 1A STEP-DOWN CONVERTER with DCS-Control in 3x3 QFN Package

Part	Supplier Device Package	Topology	Voltage - Input (Max) [Max]	Output Type	Mounting Type	Package / Case	Function	Voltage - Output (Min/Fixed)	Output Configuration	Frequency - Switching	Voltage - Output (Max)	Voltage - Input (Min) [Min]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Board Type	Regulator Topology	Supplied Contents	Outputs and Type	Outputs and Type	Utilized IC / Part
Texas Instruments TLV62150RGTR	16-VQFN (3x3)	Buck	17 V	Adjustable	Surface Mount	16-VFQFN Exposed Pad	Step-Down	0.9 V	Positive	2.5 MHz	5 V	4 V	1	85 °C	-40 °C	1 A
Texas Instruments TLV62150ARGTR	16-VQFN (3x3)	Buck	17 V	Adjustable	Surface Mount	16-VFQFN Exposed Pad	Step-Down	0.9 V	Positive	2.5 MHz	5 V	4 V	1	85 °C	-40 °C	1 A

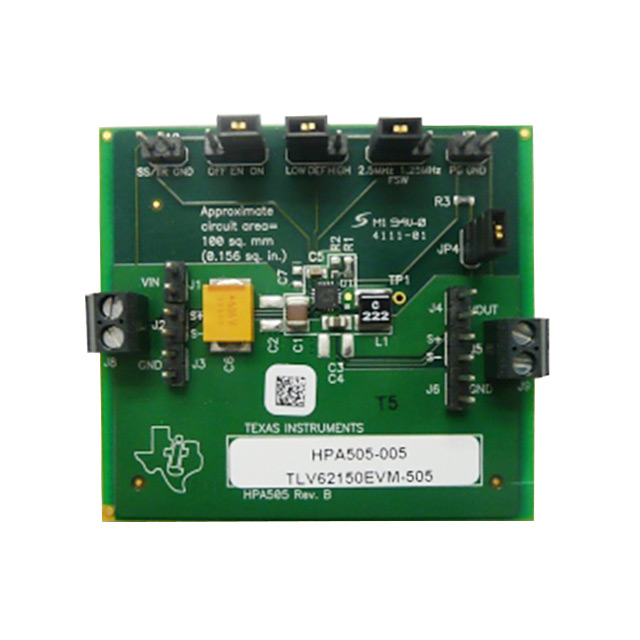

Texas Instruments TLV62150EVM-505										1.25 MHz 2.5 MHz						1 A	DC/DC Step Down	4 V	17 V	3.3 V	Fully Populated	Buck	Board(s)	Non-Isolated	1	TLV62150

Catalog

4-17V, 1A STEP-DOWN CONVERTER with DCS-Control in 3x3 QFN Package

Key Features

• DCS-Control™ TopologyInput Voltage Range: 4 V to 17 VUp to 1-A Output CurrentAdjustable Output Voltage from 0.9 to 5 VPin-Selectable Output Voltage (nominal, + 5%)Programmable Soft Start and TrackingSeamless Power Save Mode TransitionQuiescent Current of 19 µA (Typical)Selectable Operating FrequencyPower Good Output100% Duty Cycle ModeShort Circuit ProtectionOver Temperature ProtectionFor Improved Feature Set, seeTPS62150Pin to Pin compatible withTLV62130Available in a 3-mm × 3-mm, VQFN-16 PackageDCS-Control™ TopologyInput Voltage Range: 4 V to 17 VUp to 1-A Output CurrentAdjustable Output Voltage from 0.9 to 5 VPin-Selectable Output Voltage (nominal, + 5%)Programmable Soft Start and TrackingSeamless Power Save Mode TransitionQuiescent Current of 19 µA (Typical)Selectable Operating FrequencyPower Good Output100% Duty Cycle ModeShort Circuit ProtectionOver Temperature ProtectionFor Improved Feature Set, seeTPS62150Pin to Pin compatible withTLV62130Available in a 3-mm × 3-mm, VQFN-16 Package

Description

The TLV62150x device is an easy-to-use synchronous step-down DC-DC converter optimized for applications with high power density. A high switching frequency of typically 2.5 MHz allows the use of small inductors and provides fast transient response as well as high output voltage accuracy by use of the DCS-Control™ topology. With their wide operating input voltage range of 4 V to 17 V, the devices are ideally suited for systems powered from either a Li-Ion or other batteries as well as from 12 V intermediate power rails. It supports up to 1-A continuous output current at output voltages between 0.9 V and 5 V (with 100% duty cycle mode). The output voltage startup ramp is controlled by the soft-start pin, which allows operation as either a standalone power supply or in tracking configurations. Power sequencing is also possible by configuring the Enable and open-drain Power Good pins. In Power Save Mode, the devices draw quiescent current of about 19 µA from VIN. Power Save Mode, entered automatically and seamlessly if load is small, maintains high efficiency over the entire load range. In Shutdown Mode, the device is turned off and shutdown current consumption is less than 2 µA. The devices is packaged in a 16-pin VQFN package measuring 3 mm × 3 mm (RGT). The TLV62150x device is an easy-to-use synchronous step-down DC-DC converter optimized for applications with high power density. A high switching frequency of typically 2.5 MHz allows the use of small inductors and provides fast transient response as well as high output voltage accuracy by use of the DCS-Control™ topology. With their wide operating input voltage range of 4 V to 17 V, the devices are ideally suited for systems powered from either a Li-Ion or other batteries as well as from 12 V intermediate power rails. It supports up to 1-A continuous output current at output voltages between 0.9 V and 5 V (with 100% duty cycle mode). The output voltage startup ramp is controlled by the soft-start pin, which allows operation as either a standalone power supply or in tracking configurations. Power sequencing is also possible by configuring the Enable and open-drain Power Good pins. In Power Save Mode, the devices draw quiescent current of about 19 µA from VIN. Power Save Mode, entered automatically and seamlessly if load is small, maintains high efficiency over the entire load range. In Shutdown Mode, the device is turned off and shutdown current consumption is less than 2 µA. The devices is packaged in a 16-pin VQFN package measuring 3 mm × 3 mm (RGT).
