HPH1-B Series

Manufacturer: Adam Tech

Catalog

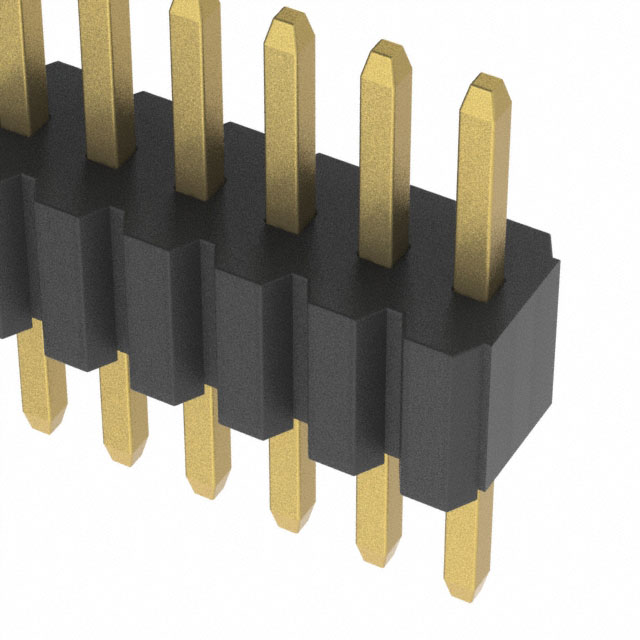

CONN UNSHROUDED HEADER HDR 7 POS 1.27MM SOLDER ST TOP ENTRY THRU-HOLE

Part	Contact Finish Thickness - Post	Fastening Type	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Termination	Shrouding	Insulation Material	Insulation Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish Thickness - Mating	Mounting Type	Contact Shape	Contact Material	Insulation Height	Insulation Height	Number of Rows	Contact Type	Material Flammability Rating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating
Adam Tech HPH1-B-07-UA	Flash	Push-Pull	Gold	3 mm	0.118 in	7	8.2 mm	0.323 in	Gold	Solder	Unshrouded	Thermoplastic	Black	Header	-40 C	105 ░C	250 VAC	Flash	Through Hole	Square	Brass	0.1 in	2.54 mm	1	Male Pin	UL94 V-0	All	2.67 mm	0.105 in	1.27 mm	0.05 in
Adam Tech HPH1-B-10-UA	Flash	Push-Pull	Gold	3 mm	0.118 in	10	8.2 mm	0.323 in	Gold	Solder	Unshrouded	Thermoplastic	Black	Header	-40 C	105 ░C	250 VAC	Flash	Through Hole	Square	Brass	0.1 in	2.54 mm	1	Male Pin	UL94 V-0	All	2.67 mm	0.105 in	1.27 mm	0.05 in
Adam Tech HPH1-B-19-UA	Flash	Push-Pull	Gold	3 mm	0.118 in	19	8.2 mm	0.323 in	Gold	Solder	Unshrouded	Thermoplastic	Black	Header	-40 C	105 ░C	250 VAC	Flash	Through Hole	Square	Brass	0.1 in	2.54 mm	1	Male Pin	UL94 V-0	All	2.67 mm	0.105 in	1.27 mm	0.05 in
Adam Tech HPH1-B-17-UA	Flash	Push-Pull	Gold	3 mm	0.118 in		8.2 mm	0.323 in	Gold	Solder	Unshrouded	Thermoplastic	Black	Header	-40 C	105 ░C	250 VAC	Flash	Through Hole	Square	Brass	0.1 in	2.54 mm	1	Male Pin	UL94 V-0	All	2.67 mm	0.105 in	1.27 mm	0.05 in
Adam Tech HPH1-B-15-UA	Flash	Push-Pull	Gold	3 mm	0.118 in	15	8.2 mm	0.323 in	Gold	Solder	Unshrouded	Thermoplastic	Black	Header	-40 C	105 ░C	250 VAC	Flash	Through Hole	Square	Brass	0.1 in	2.54 mm	1	Male Pin	UL94 V-0	All	2.67 mm	0.105 in	1.27 mm	0.05 in
Adam Tech HPH1-B-04-UA	Flash	Push-Pull	Gold	3 mm	0.118 in	4	8.2 mm	0.323 in	Gold	Solder	Unshrouded	Thermoplastic	Black	Header	-40 C	105 ░C	250 VAC	Flash	Through Hole	Square	Brass	0.1 in	2.54 mm	1	Male Pin	UL94 V-0	All	2.67 mm	0.105 in	1.27 mm	0.05 in
Adam Tech HPH1-B-18-UA	Flash	Push-Pull	Gold	3 mm	0.118 in	18	8.2 mm	0.323 in	Gold	Solder	Unshrouded	Thermoplastic	Black	Header	-40 C	105 ░C	250 VAC	Flash	Through Hole	Square	Brass	0.1 in	2.54 mm	1	Male Pin	UL94 V-0	All	2.67 mm	0.105 in	1.27 mm	0.05 in
Adam Tech HPH1-B-05-UA	Flash	Push-Pull	Gold	3 mm	0.118 in	5	8.2 mm	0.323 in	Gold	Solder	Unshrouded	Thermoplastic	Black	Header	-40 C	105 ░C	250 VAC	Flash	Through Hole	Square	Brass	0.1 in	2.54 mm	1	Male Pin	UL94 V-0	All	2.67 mm	0.105 in	1.27 mm	0.05 in
Adam Tech HPH1-B-03-UA	Flash	Push-Pull	Gold	3 mm	0.118 in		8.2 mm	0.323 in	Gold	Solder	Unshrouded	Thermoplastic	Black	Header	-40 C	105 ░C	250 VAC	Flash	Through Hole	Square	Brass	0.1 in	2.54 mm	1	Male Pin	UL94 V-0	All	2.67 mm	0.105 in	1.27 mm	0.05 in
Adam Tech HPH1-B-20-UA	Flash	Push-Pull	Gold	3 mm	0.118 in	20	8.2 mm	0.323 in	Gold	Solder	Unshrouded	Thermoplastic	Black	Header	-40 C	105 ░C	250 VAC	Flash	Through Hole	Square	Brass	0.1 in	2.54 mm	1	Male Pin	UL94 V-0	All	2.67 mm	0.105 in	1.27 mm	0.05 in
