LM337_XFCS Series

Linear Voltage Regulator, Negative, Adjustable Output, 1.5 A

Manufacturer: ON Semiconductor

Catalog

Linear Voltage Regulator, Negative, Adjustable Output, 1.5 A

Catalog

Linear Voltage Regulator, Negative, Adjustable Output, 1.5 A

Part	Current - Output	Output Configuration	Voltage - Output (Max) [Max]	Mounting Type	PSRR	Protection Features	Current - Quiescent (Iq)	Output Type	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of Regulators	Voltage - Input (Max) [Max]	Package / Case	Voltage - Output (Min/Fixed)

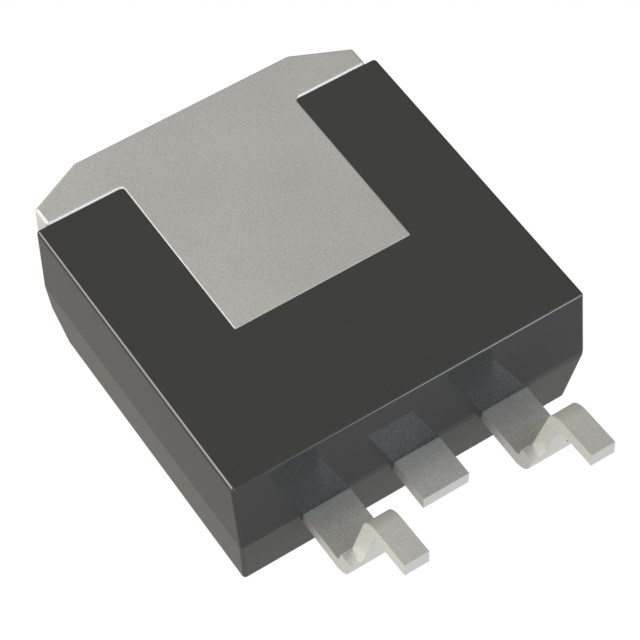

ON Semiconductor LM337BD2T	1.5 A	Negative	-37 V	Surface Mount	77 dB	Over Current Over Temperature	6 mA	Adjustable	10 mA	125 °C	-40 °C	D2PAK-3	1	-40 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	-1.2 V
ON Semiconductor LM337TG	1.5 A	Negative	-37 V	Through Hole	77 dB	Over Current Over Temperature	6 mA	Adjustable	10 mA	125 °C	0 °C	TO-220	1	-40 V	TO-220-3	-1.2 V
ON Semiconductor LM337T	1.5 A	Negative	-37 V	Through Hole	60 dB			Adjustable		125 °C	0 °C	TO-220-3	1	-40 V	TO-220-3	-1.2 V
ON Semiconductor LM337PWD	1.5 A	Negative	-37 V		77 dB	Over Current Over Temperature	6 mA	Adjustable	10 mA				1	-40 V		-1.2 V
