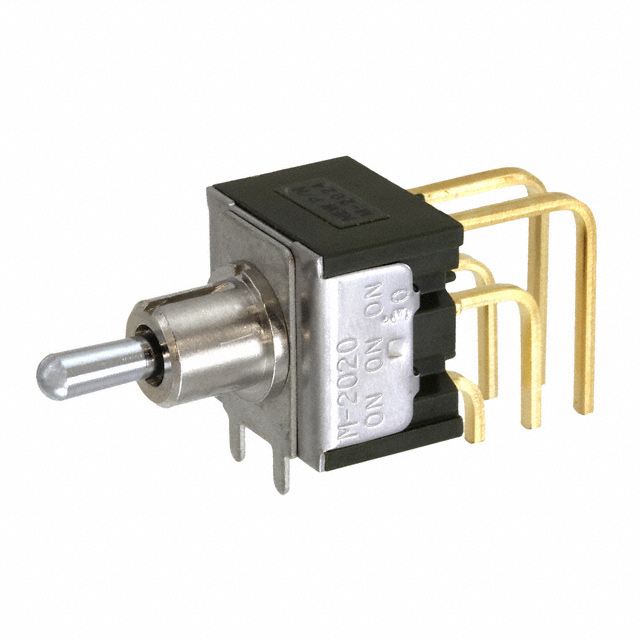

M2024S2 Series

Catalog

SWITCH TOGGLE SP3T 0.4VA 28V

Part	Actuator Material	Electrical Life	Illumination	Circuit	Current Rating (Amps)	Features	Voltage Rating - AC	Actuator Length	Mounting Type	Bushing Thread	Actuator Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - DC	Panel Cutout Dimensions [diameter]

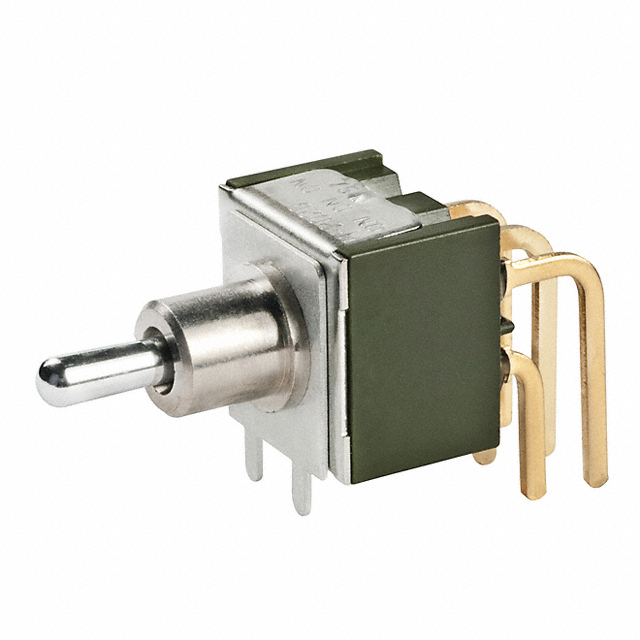

NKK Switches M2024S2A2G30	Brass Chrome Plated	50000 Cycles	Non-Illuminated	SP3T	0.4 VA	Jumper needed to achieve triple throw	28 V	6.86 mm	Right Angle Through Hole	Unthreaded	Standard Round	PC Pin	85 °C	-30 ░C	On-On-On	28 V	6.5 mm
NKK Switches M2024S2A2G40	Brass Chrome Plated	50000 Cycles	Non-Illuminated	SP3T	0.4 VA	Jumper needed to achieve triple throw	28 V	6.86 mm	Right Angle Through Hole Vertical	Unthreaded	Standard Round	PC Pin	85 °C	-30 ░C	On-On-On	28 V	6.5 mm
NKK Switches M2024S2A2W13	Brass Chrome Plated	25000 Steps	Non-Illuminated	SP3T	3 A 6 A	Jumper needed to achieve triple throw	125 V	6.86 mm	Through Hole	Unthreaded	Standard Round	PC Pin	85 °C	-30 ░C	On-On-On	30 V	6.5 mm
