3580-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

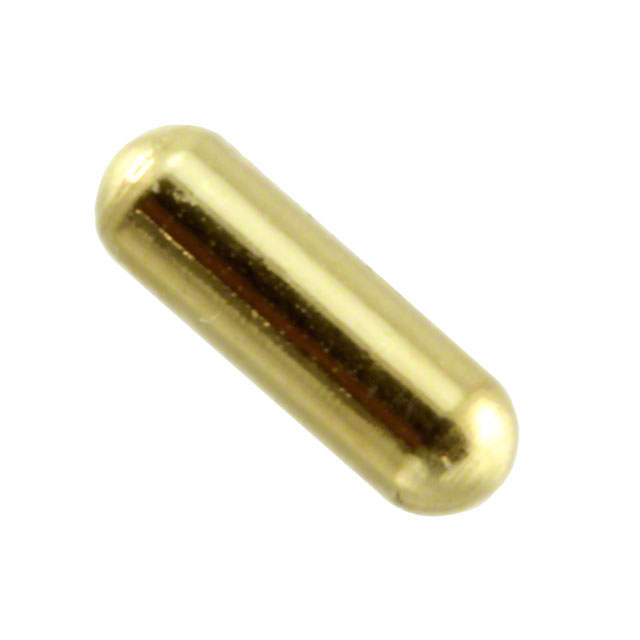

.080" DIAMETER STRAIGHT PINS
| Part | Termination | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Pin Size - Above Flange | Pin Size - Above Flange [diameter] | Terminal Type | Length - Overall [x] | Length - Overall [x] | Mounting Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Terminal Style | Contact Finish | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Solder | 0.08 in | 2.03 mm | 2.03 mm | 0.08 in | Single Post | 6.35 mm | 0.25 in | Through Hole | Brass Alloy | 0.25 Ám | 10 Áin | Smooth | Gold | Non-Insulated |
 Mill-Max Manufacturing Corp. | Solder | 0.08 in | 2.03 mm | 2.03 mm | 0.08 in | Single Post | 6.35 mm | 0.25 in | Through Hole | Brass Alloy | 5.08 Ám | 200 Áin | Smooth | Tin | Non-Insulated |
