AWH 26G Series

Catalog

CONN HEADER 26POS IDC GOLD

Part	Contact Finish	Fastening Type	Contact Type	Pitch	Pitch	Row Spacing	Row Spacing	Color	Number of Positions	Cable Termination	Number of Rows [custom]	Features	Mounting Type	Wire Type	Connector Type	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Shrouding	Contact Finish Thickness - Mating	Contact Shape	Material Flammability Rating	Contact Material	Insulation Height	Insulation Height	Insulation Color	Termination	Contact Length - Post	Contact Length - Post	Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Finish - Mating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating
Assmann WSW Components AWH 26G-0232-IDC	Gold	Latch Lock/Eject Hooks Long	Male Pin	0.1 "	2.54 mm	2.54 mm	0.1 "	Gray	26	IDC	2	Feed Through	Free Hanging (In-Line)	Ribbon Cable	Header

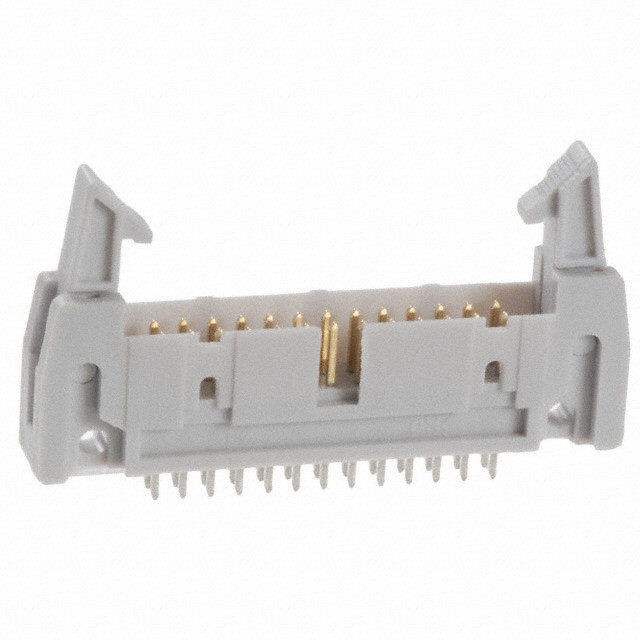

Assmann WSW Components AWH26G-0232-T-R		Latch Lock/Eject Hooks Long	Male Pin						26		2	Keying Slot	Through Hole		Header	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	All	Shrouded - 4 Wall	Flash	Square	UL94 V-0	Brass	17 mm	0.669 in	Gray	Solder	0.13 "	3.3 mm	Board to Cable/Wire	-40 C	105 ░C	Tin	Gold	3 A	0.1 "	2.54 mm

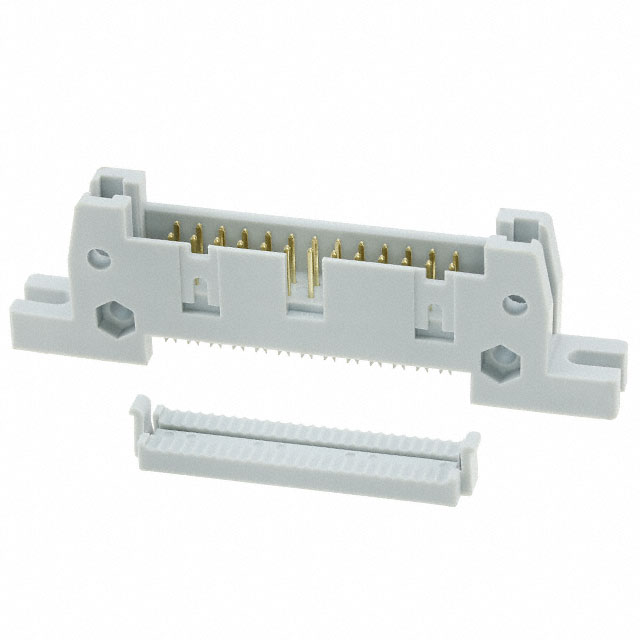

Assmann WSW Components AWH 26G-E202-IDC	Gold		Male Pin	0.1 "	2.54 mm	2.54 mm	0.1 "	Gray	26	IDC	2	Feed Through	Panel Mount	Ribbon Cable	Header
