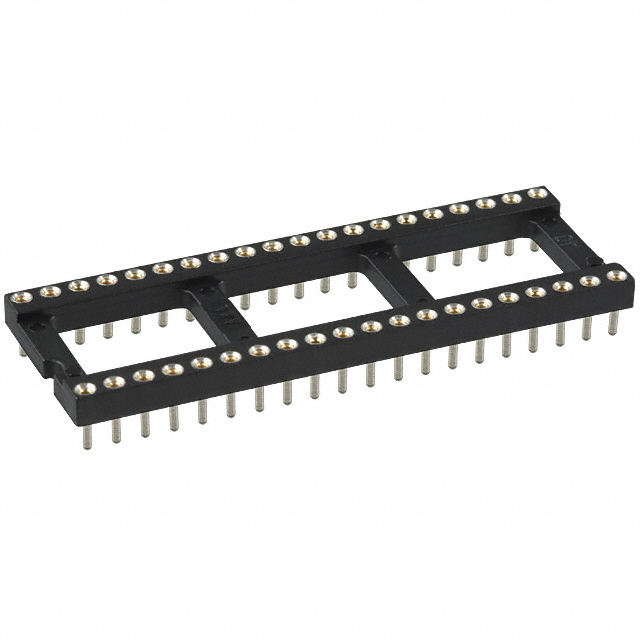

115-47 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN IC DIP SOCKET 40POS GOLD

Part	Pitch - Post	Pitch - Post	Termination Post Length [x]	Termination Post Length [x]	Type	Type	Type	Mounting Type	Contact Finish - Post	Termination	Contact Finish - Mating	Contact Material - Post	Features	Housing Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish Thickness - Mating	Contact Resistance	Material Flammability Rating	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 115-47-640-41-001000	2.54 mm	0.1 in	0.108 in	2.74 mm	DIP	0.6 in	15.24 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	40	20	2	Flash
Mill-Max Manufacturing Corp. 115-47-428-41-003000	2.54 mm	0.1 in			DIP	0.4 in	10.16 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	28			Flash	10 mOhm	UL94 V-0	2.41 mm	0.095 in
Mill-Max Manufacturing Corp. 115-47-636-41-001000	2.54 mm	0.1 in	0.108 in	2.74 mm	DIP	0.6 in	15.24 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	36			Flash	10 mOhm	UL94 V-0
Mill-Max Manufacturing Corp. 115-47-428-41-001000	2.54 mm	0.1 in	0.108 in	2.74 mm	DIP	0.4 in	10.16 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	28			Flash	10 mOhm	UL94 V-0

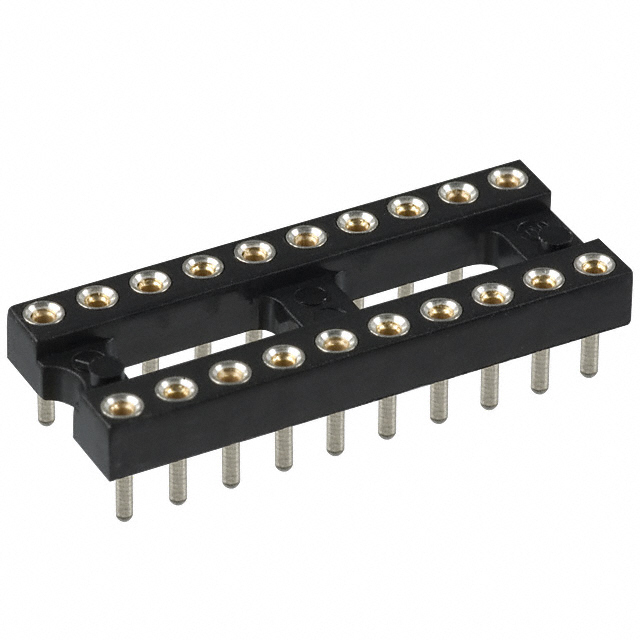

Mill-Max Manufacturing Corp. 115-47-320-41-003000	2.54 mm	0.1 in			DIP	0.3 "	7.62 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	20			Flash			2.41 mm	0.095 in
Mill-Max Manufacturing Corp. 115-47-318-41-001000	2.54 mm	0.1 in	0.108 in	2.74 mm	DIP	0.3 "	7.62 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	18			Flash

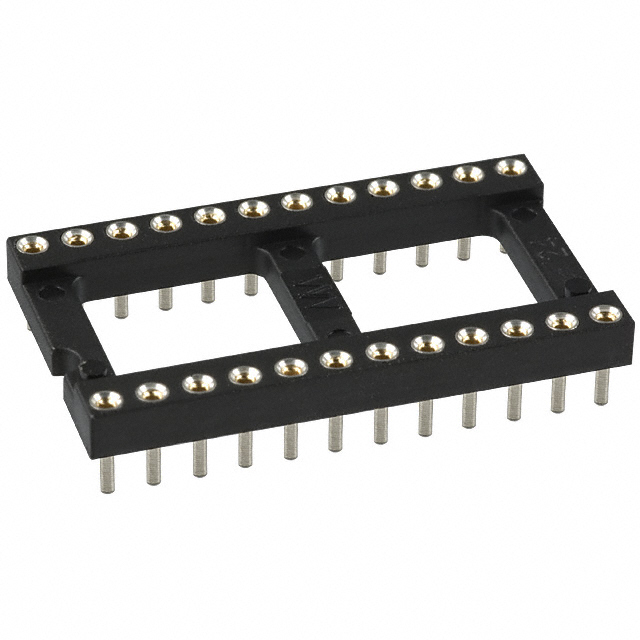

Mill-Max Manufacturing Corp. 115-47-624-41-001000	2.54 mm	0.1 in	0.108 in	2.74 mm	DIP	0.6 in	15.24 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	24			Flash
Mill-Max Manufacturing Corp. 115-47-424-41-003000	2.54 mm	0.1 in			DIP	0.4 in	10.16 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	24			Flash	10 mOhm	UL94 V-0	2.41 mm	0.095 in
Mill-Max Manufacturing Corp. 115-47-310-41-001000	2.54 mm	0.1 in	0.108 in	2.74 mm	DIP	0.3 "	7.62 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm				Flash	10 mOhm	UL94 V-0			2 x 5	10
Mill-Max Manufacturing Corp. 115-47-648-41-003000	2.54 mm	0.1 in			DIP	0.6 in	15.24 mm	Through Hole	Tin	Solder	Gold	Brass Alloy	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Beryllium Copper	200 µin	5.08 µm	48			Flash	10 mOhm	UL94 V-0	2.41 mm	0.095 in
