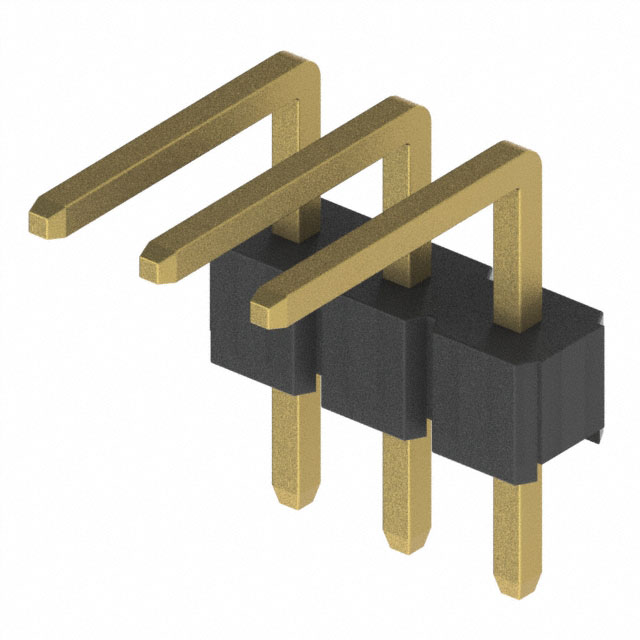

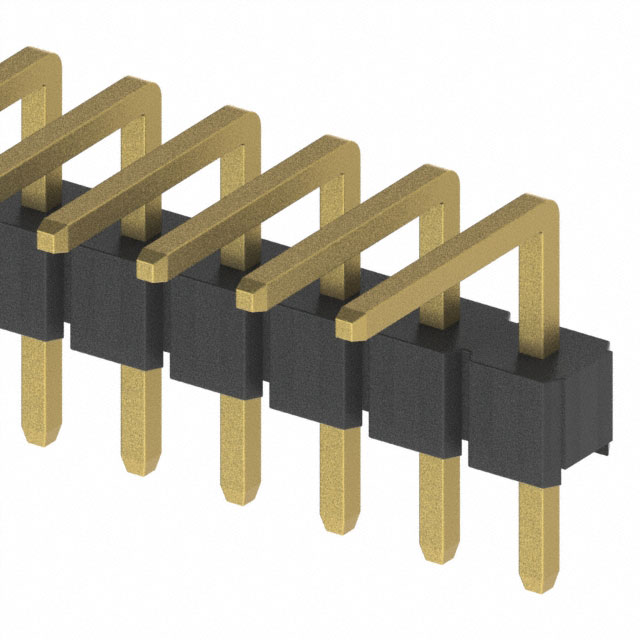

PH1RA Series

Manufacturer: Adam Tech

Catalog

CONN HEADER R/A 10POS 2.54MM

Part	Contact Finish Thickness - Post	Connector Type	Contact Length - Mating	Contact Length - Mating	Insulation Material	Shrouding	Insulation Height	Insulation Height	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Color	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Mating	Contact Finish - Mating	Mounting Type	Voltage Rating	Contact Shape	Contact Type	Material Flammability Rating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Material	Contact Length - Post	Contact Length - Post	Termination
Adam Tech PH1RA-10-UA	Flash	Header	6 mm	0.236 in	Polybutylene Terephthalate (PBT) Glass Filled	Unshrouded	0.098 "	2.5 mm	3 A	0.1 "	2.54 mm	Push-Pull	Black	All	10	Flash	Gold	Right Angle Through Hole	250 VAC	Square	Male Pin	UL94 V-0	1	-40 C	105 ░C	Gold	Brass	0.118 in	3 mm	Solder
Adam Tech PH1RA-03-UA	Flash	Header	6 mm	0.236 in	Polybutylene Terephthalate (PBT) Glass Filled	Unshrouded	0.098 "	2.5 mm	3 A	0.1 "	2.54 mm	Push-Pull	Black	All		Flash	Gold	Right Angle Through Hole	250 VAC	Square	Male Pin	UL94 V-0	1	-40 C	105 ░C	Gold	Brass	0.118 in	3 mm	Solder
Adam Tech PH1RA-06-UA	Flash	Header	6 mm	0.236 in	Polybutylene Terephthalate (PBT) Glass Filled	Unshrouded	0.098 "	2.5 mm	3 A	0.1 "	2.54 mm	Push-Pull	Black	All	6	Flash	Gold	Right Angle Through Hole	250 VAC	Square	Male Pin	UL94 V-0	1	-40 C	105 ░C	Gold	Brass	0.118 in	3 mm	Solder
Adam Tech PH1RA-16-UA	Flash	Header	6 mm	0.236 in	Polybutylene Terephthalate (PBT) Glass Filled	Unshrouded	0.098 "	2.5 mm	3 A	0.1 "	2.54 mm	Push-Pull	Black	All	16	Flash	Gold	Right Angle Through Hole	250 VAC	Square	Male Pin	UL94 V-0	1	-40 C	105 ░C	Gold	Brass	0.118 in	3 mm	Solder
Adam Tech PH1RA-12-UA	Flash	Header	6 mm	0.236 in	Polybutylene Terephthalate (PBT) Glass Filled	Unshrouded	0.098 "	2.5 mm	3 A	0.1 "	2.54 mm	Push-Pull	Black	All	12	Flash	Gold	Right Angle Through Hole	250 VAC	Square	Male Pin	UL94 V-0	1	-40 C	105 ░C	Gold	Brass	0.118 in	3 mm	Solder
Adam Tech PH1RA-08-UA	Flash	Header	6 mm	0.236 in	Polybutylene Terephthalate (PBT) Glass Filled	Unshrouded	0.098 "	2.5 mm	3 A	0.1 "	2.54 mm	Push-Pull	Black	All	8	Flash	Gold	Right Angle Through Hole	250 VAC	Square	Male Pin	UL94 V-0	1	-40 C	105 ░C	Gold	Brass	0.118 in	3 mm	Solder
Adam Tech PH1RA-19-UA	Flash	Header	6 mm	0.236 in	Polybutylene Terephthalate (PBT) Glass Filled	Unshrouded	0.098 "	2.5 mm	3 A	0.1 "	2.54 mm	Push-Pull	Black	All	19	Flash	Gold	Right Angle Through Hole	250 VAC	Square	Male Pin	UL94 V-0	1	-40 C	105 ░C	Gold	Brass	0.118 in	3 mm	Solder
Adam Tech PH1RA-02-UA		Header	6 mm	0.236 in	Polybutylene Terephthalate (PBT) Glass Filled	Unshrouded	0.098 "	2.5 mm	3 A	0.1 "	2.54 mm	Push-Pull	Black	All	2	Flash	Gold	Right Angle Through Hole	250 VAC	Square	Male Pin	UL94 V-0	1	-40 C	105 ░C	Gold	Brass	0.118 in	3 mm	Solder
Adam Tech PH1RA-18-UA	Flash	Header	6 mm	0.236 in	Polybutylene Terephthalate (PBT) Glass Filled	Unshrouded	0.098 "	2.5 mm	3 A	0.1 "	2.54 mm	Push-Pull	Black	All	18	Flash	Gold	Right Angle Through Hole	250 VAC	Square	Male Pin	UL94 V-0	1	-40 C	105 ░C	Gold	Brass	0.118 in	3 mm	Solder
Adam Tech PH1RA-09-UA	Flash	Header	6 mm	0.236 in	Polybutylene Terephthalate (PBT) Glass Filled	Unshrouded	0.098 "	2.5 mm	3 A	0.1 "	2.54 mm	Push-Pull	Black	All	9	Flash	Gold	Right Angle Through Hole	250 VAC	Square	Male Pin	UL94 V-0	1	-40 C	105 ░C	Gold	Brass	0.118 in	3 mm	Solder
