CNX_482 Series

Manufacturer: Visual Communications Company - VCC

Catalog

PMT INDCTR MS CLR ANDZD ALUM RED

Part	Type	Ingress Protection	Voltage	Lamp Color	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Lens Color	Lens Size [diameter]	Lens Transparency	Lens Style	Current	Termination Style	Panel Cutout Shape	Millicandela Rating

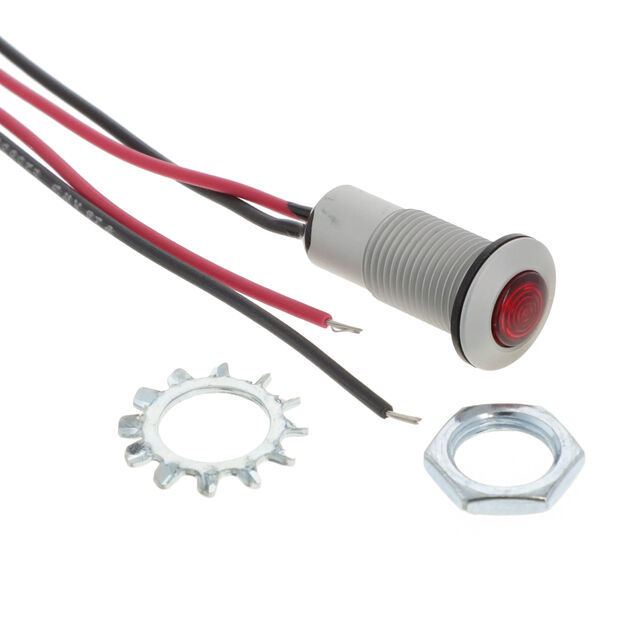

Visual Communications Company - VCC CNX_482_2_RTP_12	LED	NEMA 4	1.8 V	Red	10.16 mm	0.4 in	Red	12.7 mm	Fresnel	Round with Domed Top	20 mA	Wire Leads - 12" (304.80mm)	Round	295 mcd
Visual Communications Company - VCC CNX_482_2_CTP_12	LED	NEMA 4			10.16 mm	0.4 in	Colorless	12.7 mm	Fresnel	Round with Domed Top	20 mA	Wire Leads - 12" (304.80mm)	Round
Visual Communications Company - VCC CNX_482_1_BTP_12	LED	NEMA 4	3 V	Blue	10.16 mm	0.4 in	Blue	12.7 mm	Fresnel	Round with Domed Top	20 mA	Wire Leads - 12" (304.80mm)	Round	1125 mcd

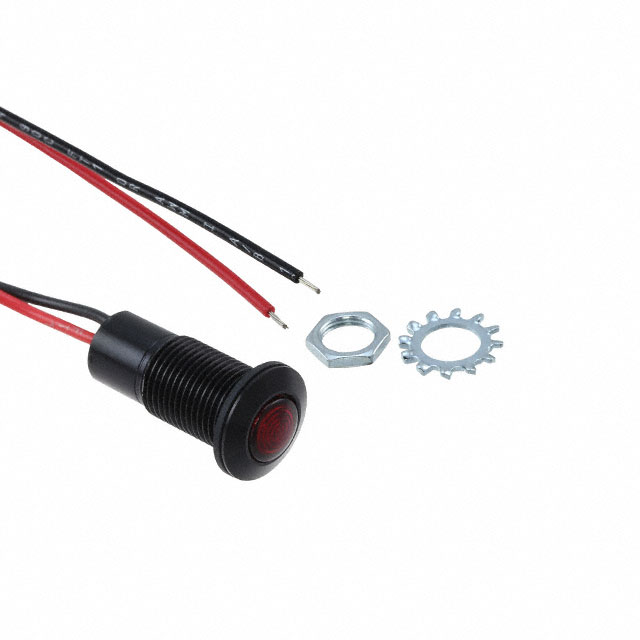

Visual Communications Company - VCC CNX_482_1_RTP_12	LED	NEMA 4	1.8 V	Red	10.16 mm	0.4 in	Red	12.7 mm	Fresnel	Round with Domed Top	20 mA	Wire Leads - 12" (304.80mm)	Round	295 mcd
Visual Communications Company - VCC CNX_482_1_CTP_12	LED	NEMA 4			10.16 mm	0.4 in	Colorless	12.7 mm	Fresnel	Round with Domed Top	20 mA	Wire Leads - 12" (304.80mm)	Round

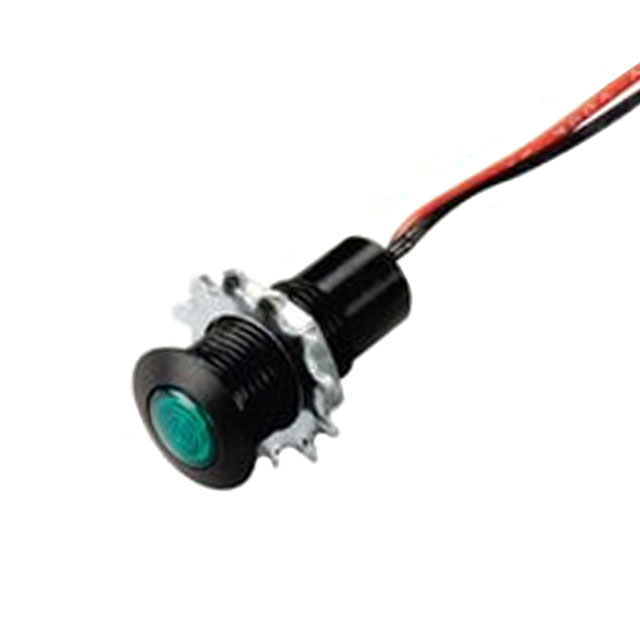

Visual Communications Company - VCC CNX_482_2_GTP_12	LED	NEMA 4	1.9 V	Green	10.16 mm	0.4 in	Green	12.7 mm	Fresnel	Round with Domed Top	20 mA	Wire Leads - 12" (304.80mm)	Round	415 mcd
Visual Communications Company - VCC CNX_482_1_GTP_12	LED	NEMA 4	1.9 V	Green	10.16 mm	0.4 in	Green	12.7 mm	Fresnel	Round with Domed Top	20 mA	Wire Leads - 12" (304.80mm)	Round	415 mcd

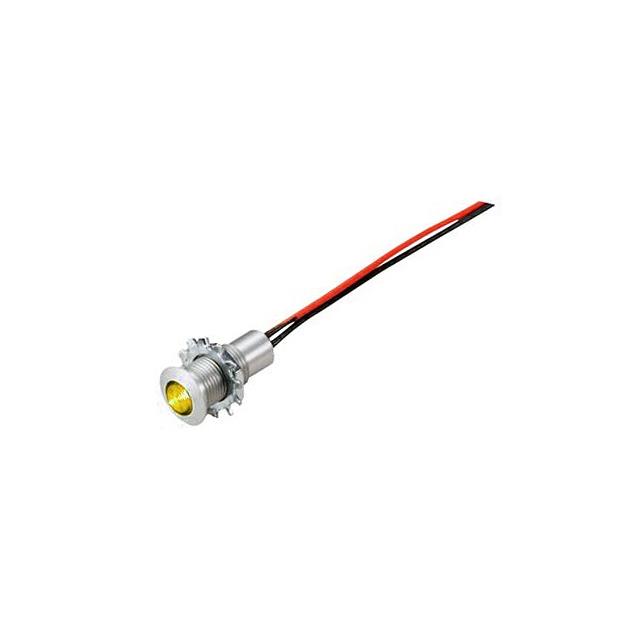

Visual Communications Company - VCC CNX_482_2_YTP_12	LED	NEMA 4	1.9 V	Yellow	10.16 mm	0.4 in	Yellow	12.7 mm	Fresnel	Round with Domed Top	20 mA	Wire Leads - 12" (304.80mm)	Round	330 mcd
