EPS060250 Series
Manufacturer: CUI Inc.
Beta
⌘K

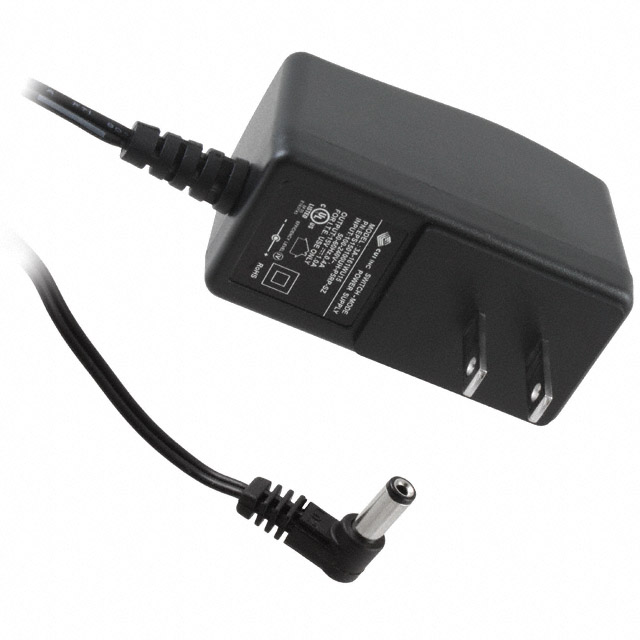

AC/DC WALL MOUNT ADAPTER 6V 15W
| Part | Cord Length | Cord Length | Current - Output (Max) [Max] | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Input Connector | Applications | Polarization | Weight | Weight | Efficiency | No Load Power Consumption | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Region Utilized | Form | Output Connector [custom] | Output Connector [custom] | Output Connector | Output Connector [x] | Power (Watts) | Input Type | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 1 m | 39.4 in | 2.5 A | 264 VAC | 90 VAC | 40 °C | 0 °C | NEMA 1-15P | ITE (Commercial) | Positive Center | 180.08 g | 0.397 lb | Level IV | 300 mW | 2.83 in | 72 mm | 47.6 mm | 35 mm | 1.38 in | 1.87 in | North America | Wall Mount | 2.1 mm | 5.5 mm | Barrel Plug | 12 mm | 15 W | Fixed Blade | 6 V |
