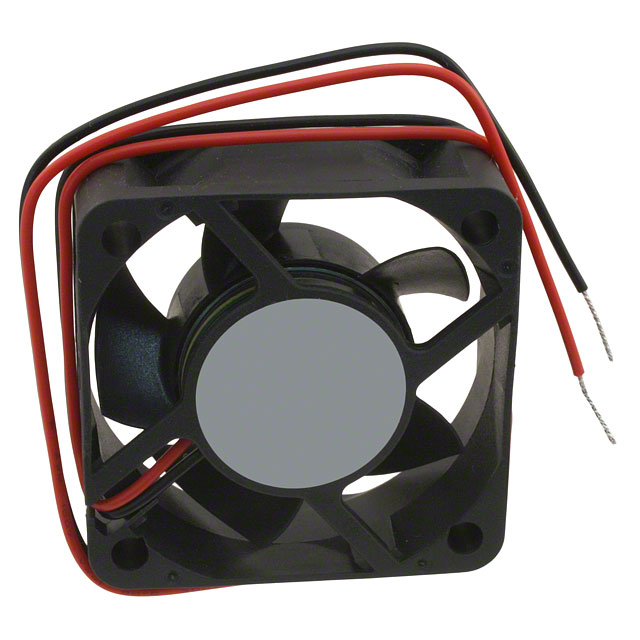

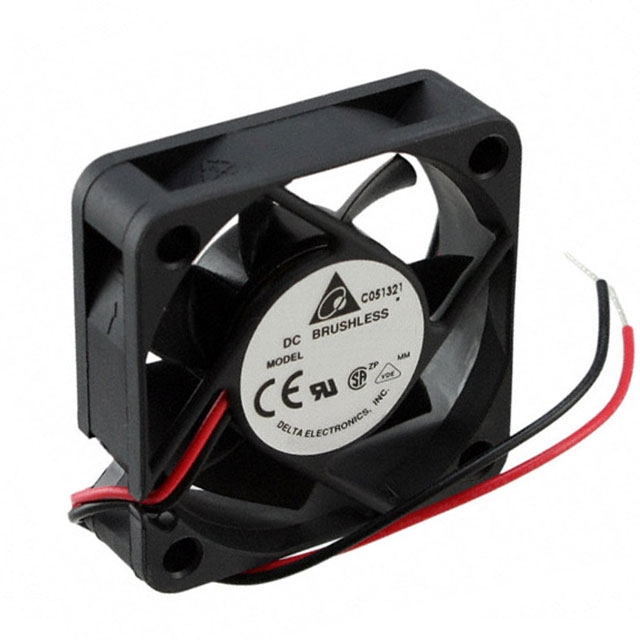

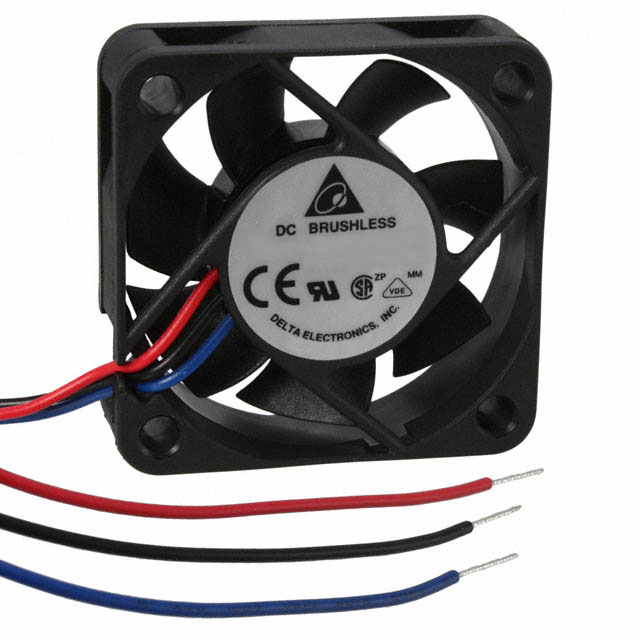

AFB0512 Series

Catalog

DC FAN AXIAL BALL BEARING 12V 7V TO 13.8V 16.24CFM 36DB 50 X 50 X 15MM

Part	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Material - Frame	Bearing Type	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	Approval Agency	Weight [custom]	Weight [custom]	Width [y]	RPM	Power (Watts)	Air Flow	Air Flow	Noise	Fan Type	Static Pressure	Static Pressure	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Weight [custom]	Weight [custom]	Features
Delta Electronics AFB0512HHB	70000 Hrs	13.8 VDC	7 V	Plastic	Plastic	Ball	50 mm	50 mm	12 VDC	CE CSA UL VDE	32.21 g	0.071 lb	15 mm	6400 RPM	1.56 W	16.2 CFM	0.454 m³/min	36 dB	Tubeaxial	0.315 in H2O	78.5 Pa	2 Wire Leads	70 °C	-10 °C
Delta Electronics AFB0512HD	70000 Hrs	13.8 VDC	7 V	Plastic	Plastic	Ball	50 mm	50 mm	12 VDC	CE CSA UL VDE			20 mm	5600 RPM	1.2 W	15.8 CFM	0.442 m³/min	33 dB(A)	Tubeaxial	0.182 in H2O	45.3 Pa	2 Wire Leads	70 °C	-10 °C	100 mA	0.085 lb	38.56 g

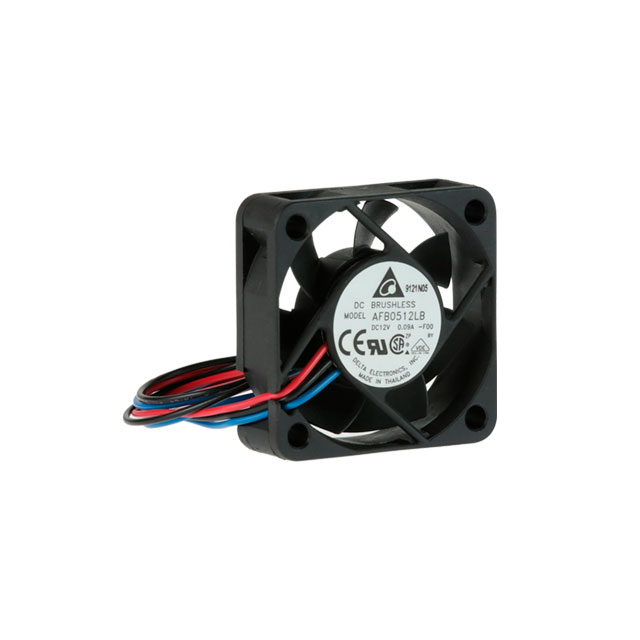

Delta Electronics AFB0512LB-F00	70000 Hrs	13.8 VDC	7 V	Plastic	Plastic	Ball	50 mm	50 mm	12 VDC	CE CSA UL VDE	32.21 g	0.071 lb	15 mm	4000 RPM	720 mW	9.9 CFM	0.277 m³/min	24 dB	Tubeaxial	0.126 in H2O	31.4 Pa	3 Wire Leads	70 °C	-10 °C	60 mA			Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0512VHD-F00	70000 Hrs	13.8 VDC	7 V	Plastic	Plastic	Ball	50 mm	50 mm	12 VDC	CE CSA UL VDE			20 mm	7000 RPM	1.92 W	20.3 CFM	0.568 m³/min	40.5 dB(A)	Tubeaxial	0.303 in H2O	75.5 Pa	3 Wire Leads	70 °C	-10 °C		0.085 lb	38.56 g	Locked Rotor Protection Speed Sensor (Tach)

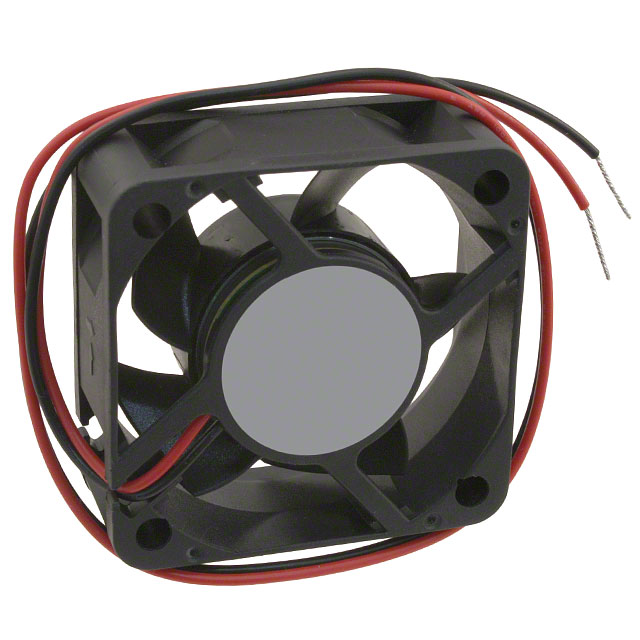

Delta Electronics AFB0512LD	70000 Hrs	13.8 VDC	7 V	Plastic	Plastic	Ball	50 mm	50 mm	12 VDC	CE CSA UL VDE			20 mm	4000 RPM	720 mW			25 dB(A)	Tubeaxial	0.095 in H2O	23.7 Pa	2 Wire Leads	70 °C	-10 °C	60 mA	0.085 lb	38.56 g
Delta Electronics AFB0512LD-R00	70000 Hrs	13.8 VDC	7 V	Plastic	Plastic	Ball	50 mm	50 mm	12 VDC	CE CSA UL VDE			20 mm	4000 RPM	720 mW			25 dB(A)	Tubeaxial	0.095 in H2O	23.7 Pa	3 Wire Leads	70 °C	-10 °C	60 mA	0.085 lb	38.56 g	Locked Rotor Sensor
Delta Electronics AFB0512HHB-F00	70000 Hrs	13.8 VDC	7 V	Plastic	Plastic	Ball	50 mm	50 mm	12 VDC	CE CSA UL VDE	32.21 g	0.071 lb	15 mm	6400 RPM	1.56 W	16.2 CFM	0.454 m³/min	36 dB	Tubeaxial	0.315 in H2O	78.5 Pa	3 Wire Leads	70 °C	-10 °C				Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0512HHD-R00	70000 Hrs	13.8 VDC	7 V	Plastic	Plastic	Ball	50 mm	50 mm	12 VDC	CE CSA UL VDE			20 mm	6400 RPM	1.68 W	18.3 CFM	0.512 mł/min	37 dB	Tubeaxial	0.254 in H2O	63.3 Pa	3 Wire Leads	70 °C	-10 °C	140 mA	0.085 lb	38.56 g	Locked Rotor Sensor
Delta Electronics AFB0512HB-F00	70000 Hrs	13.8 VDC	7 V	Plastic	Plastic	Ball	50 mm	50 mm	12 VDC	CE CSA UL VDE	32.21 g	0.071 lb	15 mm	5600 RPM	1.2 W	14.1 CFM	0.395 m³/min	32 dB	Tubeaxial	0.24 in H2O	59.8 Pa	3 Wire Leads	70 °C	-10 °C	100 mA			Locked Rotor Protection Speed Sensor (Tach)

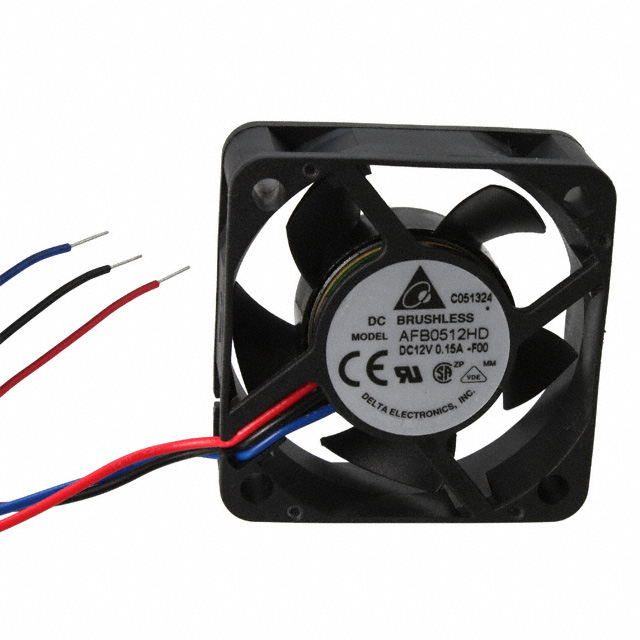

Delta Electronics AFB0512HD-F00	70000 Hrs	13.8 VDC	7 V	Plastic	Plastic	Ball	50 mm	50 mm	12 VDC	CE CSA UL VDE			20 mm	5600 RPM	1.2 W	15.8 CFM	0.442 m³/min	33 dB(A)	Tubeaxial	0.182 in H2O	45.3 Pa	3 Wire Leads	70 °C	-10 °C	100 mA	0.085 lb	38.56 g	Locked Rotor Protection Speed Sensor (Tach)
