SRCN2A21 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN RCPT FMALE 16 POS
| Part | Applications | Orientation | Fastening Type | Number of Positions | Primary Material | Shell Material | Shell Size - Insert | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Material Flammability Rating | Connector Type | Shell Finish | Current Rating (Amps) | Mounting Feature | Insert Material | Color | Voltage Rating | Mounting Type | Contact Finish - Mating | Current Rating (Amps) | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

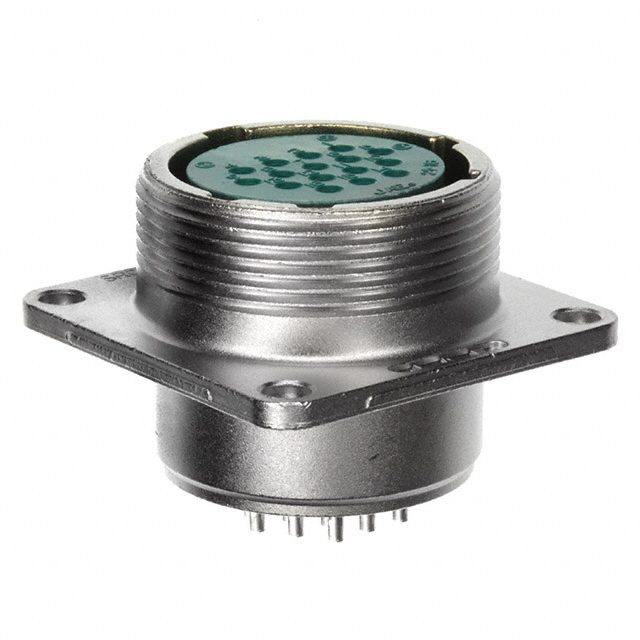

JAE Electronics | Communication Systems Measurement Telecommunications Test Equipment | N (Normal) | Threaded | 16 | Metal | Aluminum Alloy | 21-16 | 85 °C | -25 °C | Copper Alloy | UL94 V-0 | Receptacle Female Sockets | Nickel | ||||||||||

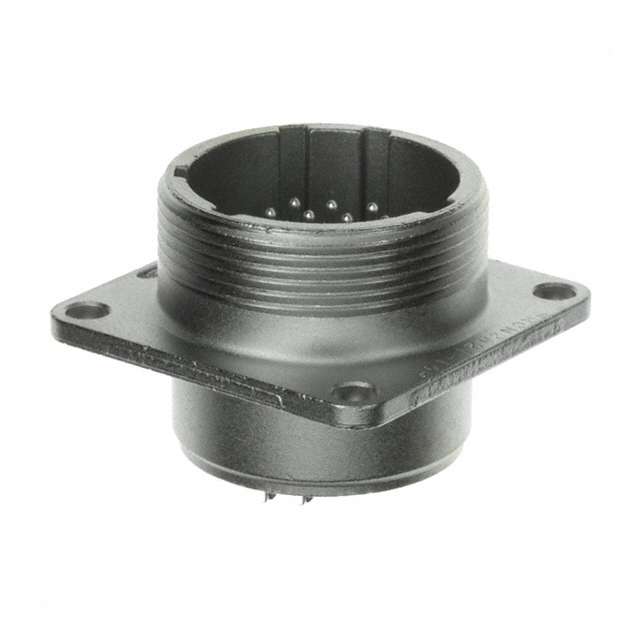

 JAE Electronics | Communication Systems Measurement Telecommunications Test Equipment | N (Normal) | Threaded | 16 | Metal | Aluminum Alloy | 21-16 | 85 °C | -25 °C | Copper Alloy | UL94 V-0 | Receptacle Male Pins | Nickel | 5 A | Flange | Plastic | Silver | 250 VAC 350 VDC | Panel Mount | Silver | |||

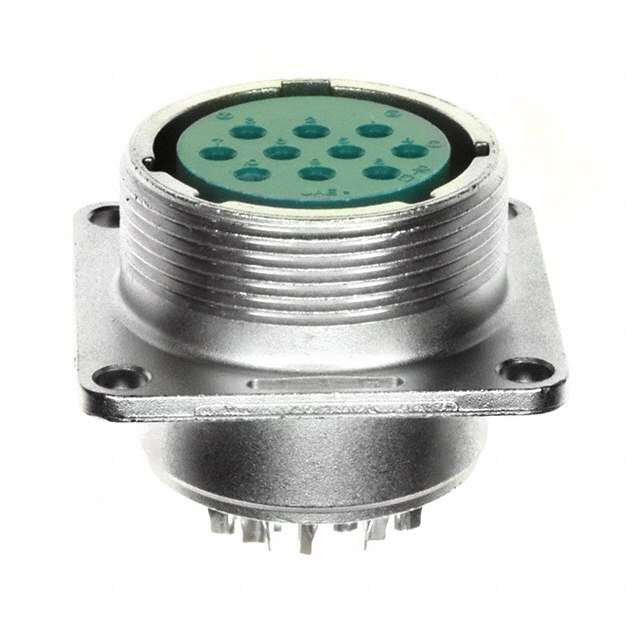

 JAE Electronics | Communication Systems Measurement Telecommunications Test Equipment | N (Normal) | Threaded | 10 | Metal | Aluminum Alloy | 21-10 | 85 °C | -25 °C | Copper Alloy | UL94 V-0 | Receptacle Female Sockets | Nickel | 10 A | Flange | Plastic | Silver | 250 VAC 350 VDC | Panel Mount | Silver | |||
JAE Electronics | Communication Systems Measurement Telecommunications Test Equipment | N (Normal) | Threaded | 18 | Metal | Aluminum Alloy | 85 °C | -25 °C | Copper Alloy | UL94 V-0 | Receptacle Female Sockets | Nickel | Flange | Plastic | Silver | 250 VAC 350 VDC | Panel Mount | Silver | 10A 5A | 21 | 18 | ||
 JAE Electronics | Communication Systems Measurement Telecommunications Test Equipment | N (Normal) | Threaded | 16 | Metal | Aluminum Alloy | 21-16 | 85 °C | -25 °C | Copper Alloy | UL94 V-0 | Receptacle Female Sockets | Nickel | 5 A | Flange | Plastic | Silver | 250 VAC 350 VDC | Panel Mount | Silver | |||

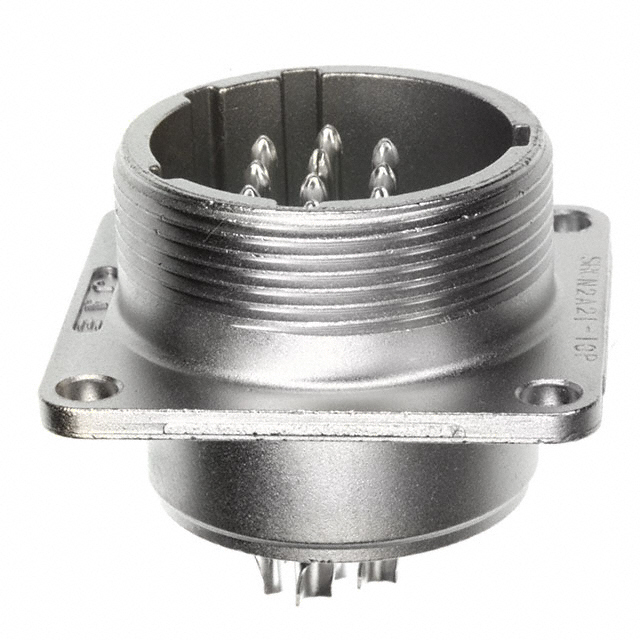

 JAE Electronics | Communication Systems Measurement Telecommunications Test Equipment | N (Normal) | Threaded | 10 | Metal | Aluminum Alloy | 21-10 | 85 °C | -25 °C | Copper Alloy | UL94 V-0 | Receptacle Male Pins | Nickel | 10 A | Flange | Plastic | Silver | 250 VAC 350 VDC | Panel Mount | Silver | |||
JAE Electronics |
