52-271 Series

Manufacturer: EAO

Catalog

SWITCH SELECT 2POS DPST 5A 250V

Part	Approval Agency	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Type	Panel Cutout Dimensions [diameter]	Number of Positions	Switch Function	Current Rating (Amps)	Circuit	Voltage Rating - AC	Termination Style	Ingress Protection	Mounting Type	Illumination
EAO 52-271.012	CB CE CSA UL	1000000 Cycles	55 °C	-25 °C	Standard	16.2 mm	2	Off-On On-Off	5 A	DPST-NO/NC	250 V	Solder Lug	IP65 - Dust Tight Water Resistant	Panel Mount	Illuminated

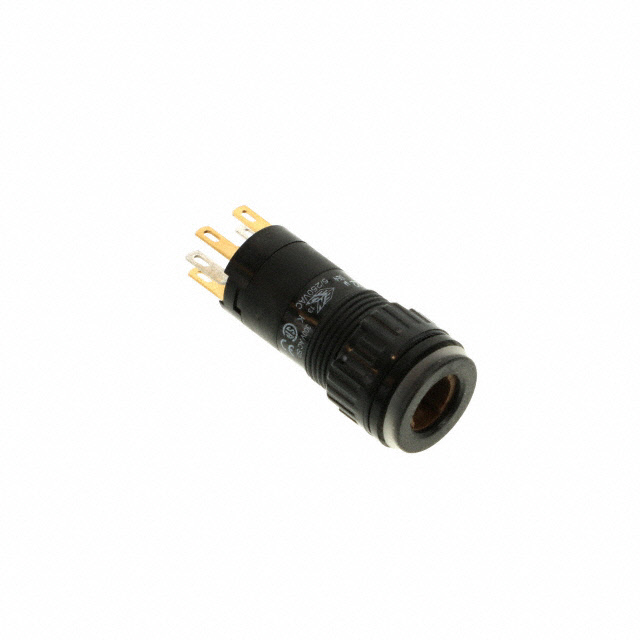

EAO 52-271.022	CB CE CSA UL	1000000 Cycles	55 °C	-25 °C	Standard	16.2 mm	2	Off-On On-Off	5 A	DPST-NO/NC	250 V	Solder Quick Connect - 0.110" (2.8mm)	IP65 - Dust Tight Water Resistant	Panel Mount	Illuminated

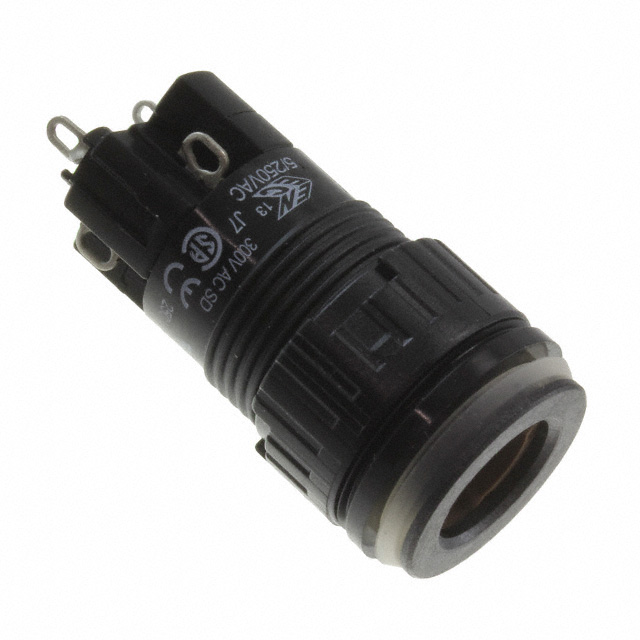

EAO 52-271.025	CB CE CSA UL	1000000 Cycles	55 °C	-25 °C	Standard	16.2 mm	2	Off-On On-Off	5 A	DPST-NO/NC	250 V	Solder Lug	IP65 - Dust Tight Water Resistant	Panel Mount	Illuminated
