5531-0 Series

Catalog

CONN RECEPT PIN .015-.021" .200"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter	Mounting Hole Diameter	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Contact Material	Termination	Contact Finish Thickness	Contact Finish Thickness	Length - Overall	Length - Overall	Tail Type	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Contact Finish	Tail Diameter [diameter]	Tail Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 5531-0-15-01-21-27-10-0	-55 C	125 °C	0.041 in	1.04 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	Beryllium Copper	Hex Press-Fit	30 Áin	0.76 Ám	0.34 in	8.64 mm	Standard Tail	0.031 in	0.79 mm	0.124 in	3.15 mm	Gold	0.019 in	0.48 mm	1.4 mm	0.055 in
Mill-Max Manufacturing Corp. 5531-0-15-15-21-14-10-0	-55 C	125 °C	0.041 in	1.04 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	Beryllium Copper	Hex Press-Fit	10 Áin	0.25 Ám	0.34 in	8.64 mm	Standard Tail	0.031 in	0.79 mm	0.124 in	3.15 mm	Gold	0.019 in	0.48 mm	1.4 mm	0.055 in

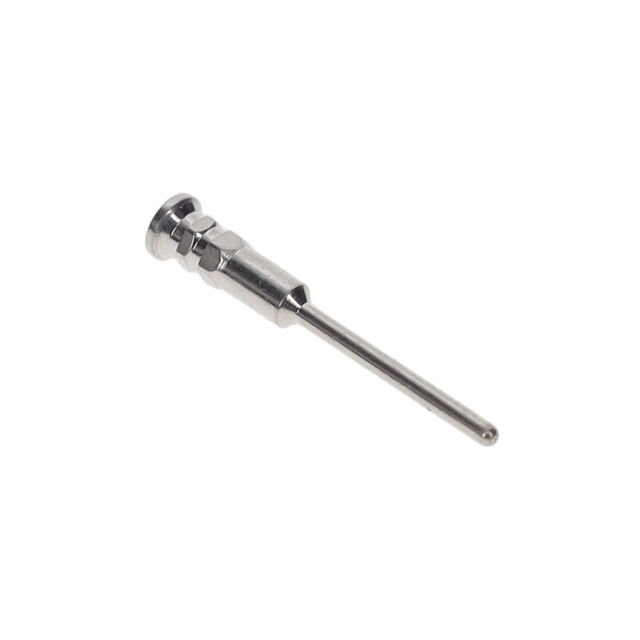

Mill-Max Manufacturing Corp. 5531-0-15-01-21-02-10-0	-55 C	125 °C	0.041 in	1.04 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	Beryllium Copper	Hex Press-Fit	100 µin	2.54 µm	0.34 in	8.64 mm	Standard Tail	0.031 in	0.79 mm	0.124 in	3.15 mm	Tin-Lead	0.019 in	0.48 mm	1.4 mm	0.055 in
