RD2-1A Series

Catalog

SWITCH ROCKER SPST 30A 12V

Part	Mechanical Life	Electrical Life	Panel Cutout Dimensions [diameter]	Switch Function	Voltage Rating - DC	Actuator Type	Color - Actuator/Cap	Circuit	Illumination Voltage (Nominal)	Mounting Type	Termination Style	Actuator Marking	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]
Switch Components RD2-1A-DC-1-RL	10000 Steps	6000 Cycles	12.2 mm Dia	On-Off	12 V	Concave (Curved) - Illuminated	Black	SPST	12 VDC	Panel Mount Threaded Body with Nut	Quick Connect - 0.250" (6.3mm)	No Marking	LED Red	85 °C	-25 °C

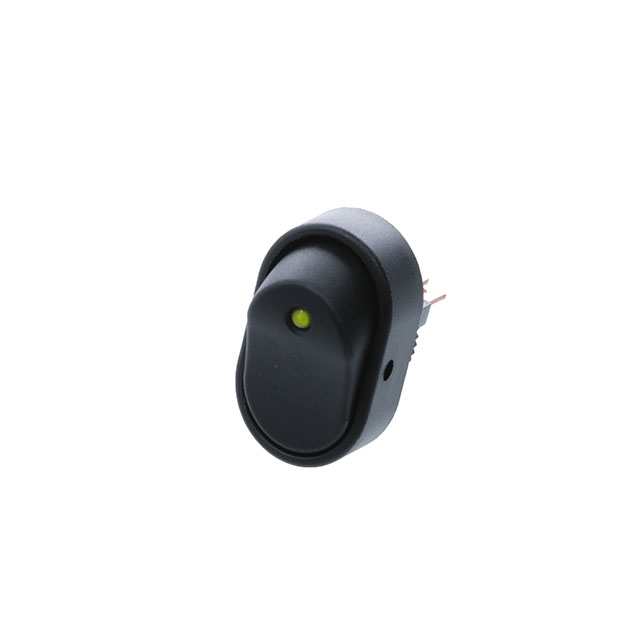

Switch Components RD2-1A-DC-1-AL	10000 Steps	6000 Cycles	12.2 mm Dia	On-Off	12 V	Concave (Curved) - Illuminated	Black	SPST	12 VDC	Panel Mount Threaded Body with Nut	Quick Connect - 0.250" (6.3mm)	No Marking	Amber LED	85 °C	-25 °C

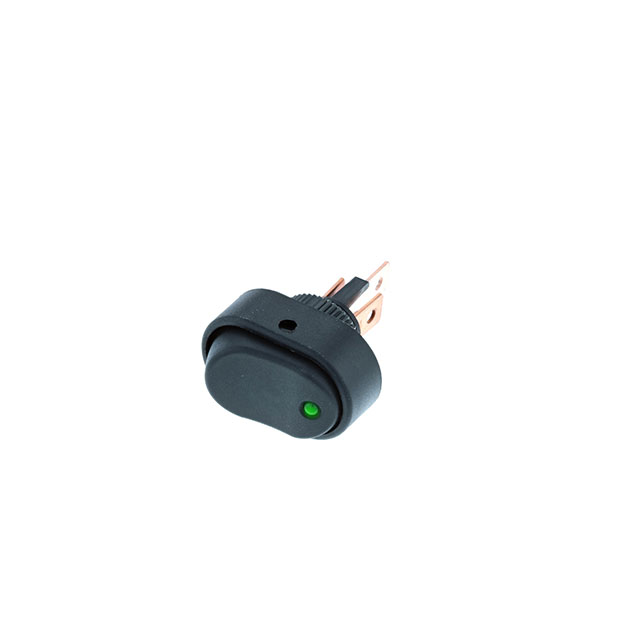

Switch Components RD2-1A-DC-1-GL	10000 Steps	6000 Cycles	12.2 mm Dia	On-Off	12 V	Concave (Curved) - Illuminated	Black	SPST	12 VDC	Panel Mount Threaded Body with Nut	Quick Connect - 0.250" (6.3mm)	No Marking	Green LED	85 °C	-25 °C

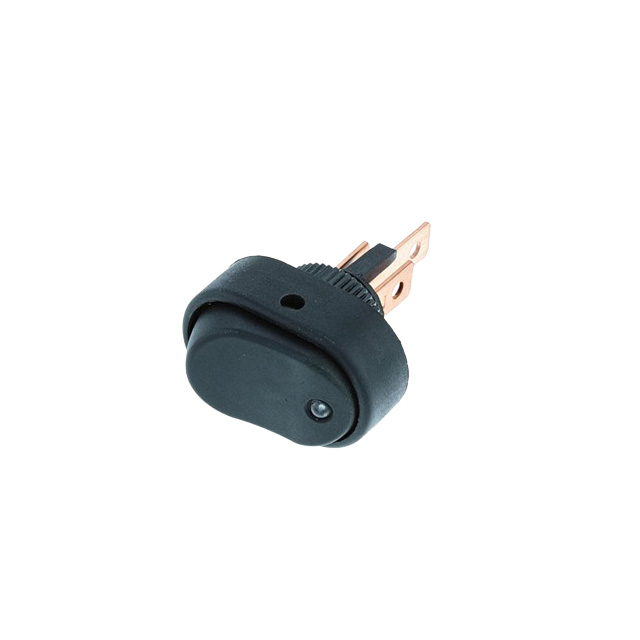

Switch Components RD2-1A-DC-1-UL	10000 Steps	6000 Cycles	12.2 mm Dia	On-Off	12 V	Concave (Curved) - Illuminated	Black	SPST	12 VDC	Panel Mount Threaded Body with Nut	Quick Connect - 0.250" (6.3mm)	No Marking	Blue LED	85 °C	-25 °C
