317-080 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 80POS 0.156

Part	Material - Insulation	Gender	Number of Positions/Bay/Row [custom]	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Read Out	Contact Type	Number of Positions	Mounting Type	Contact Finish	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Flange Feature	Number of Rows [custom]	Color	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 317-080-542-808	Diallyl Phthalate (DAP)	Female	40	3.96 mm	0.156 in	0.25 Ám	10 Áin	Dual	Cantilever	80	Through Hole	Gold	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	-65 ░C	125 °C	Wire Wrap	4-40 Threaded Insert Top Mount Opening	2	Green	Non Specified - Dual Edge
EDAC Inc. 317-080-542-804	Diallyl Phthalate (DAP)	Female	40	3.96 mm	0.156 in	0.25 Ám	10 Áin	Dual	Cantilever	80	Through Hole	Gold	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	-65 ░C	125 °C	Wire Wrap		2	Green	Non Specified - Dual Edge	0.156 "	3.96 mm
EDAC Inc. 317-080-542-802	Diallyl Phthalate (DAP)	Female	40	3.96 mm	0.156 in	0.25 Ám	10 Áin	Dual	Cantilever	80	Through Hole	Gold	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	-65 ░C	125 °C	Wire Wrap		2	Green	Non Specified - Dual Edge
EDAC Inc. 317-080-542-807	Diallyl Phthalate (DAP)	Female	40	3.96 mm	0.156 in	0.25 Ám	10 Áin	Dual	Cantilever	80	Through Hole	Gold	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	-65 ░C	125 °C	Wire Wrap	M3 Threaded Insert Top Mount Opening	2	Green	Non Specified - Dual Edge
EDAC Inc. 317-080-540-807	Diallyl Phthalate (DAP)	Female	40	3.96 mm	0.156 in	0.25 Ám	10 Áin	Dual	Cantilever	80	Through Hole	Gold	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	-65 ░C	125 °C	Wire Wrap	M3 Threaded Insert Top Mount Opening	2	Green	Non Specified - Dual Edge

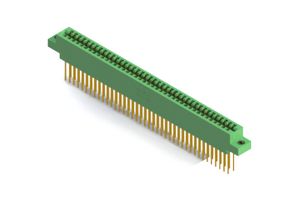

EDAC Inc. 317-080-540-878	Diallyl Phthalate (DAP)	Female	40	3.96 mm	0.156 in	0.25 Ám	10 Áin	Dual	Cantilever	80	Through Hole	Gold	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	-65 ░C	125 °C	Wire Wrap	4-40 Threaded Insert Top Mount Opening	2	Green	Non Specified - Dual Edge			Card Guides
EDAC Inc. 317-080-542-801	Diallyl Phthalate (DAP)	Female	40	3.96 mm	0.156 in	0.25 Ám	10 Áin	Dual	Cantilever	80	Through Hole	Gold	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	-65 ░C	125 °C	Wire Wrap		2	Green	Non Specified - Dual Edge
EDAC Inc. 317-080-540-808	Diallyl Phthalate (DAP)	Female	40	3.96 mm	0.156 in	0.25 Ám	10 Áin	Dual	Cantilever	80	Through Hole	Gold	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	-65 ░C	125 °C	Wire Wrap	4-40 Threaded Insert Top Mount Opening	2	Green	Non Specified - Dual Edge
EDAC Inc. 317-080-542-878	Diallyl Phthalate (DAP)	Female	40	3.96 mm	0.156 in	0.25 Ám	10 Áin	Dual	Cantilever	80	Through Hole	Gold	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	-65 ░C	125 °C	Wire Wrap	4-40 Threaded Insert Top Mount Opening	2	Green	Non Specified - Dual Edge			Card Guides
