F221L1/4 Series

Catalog

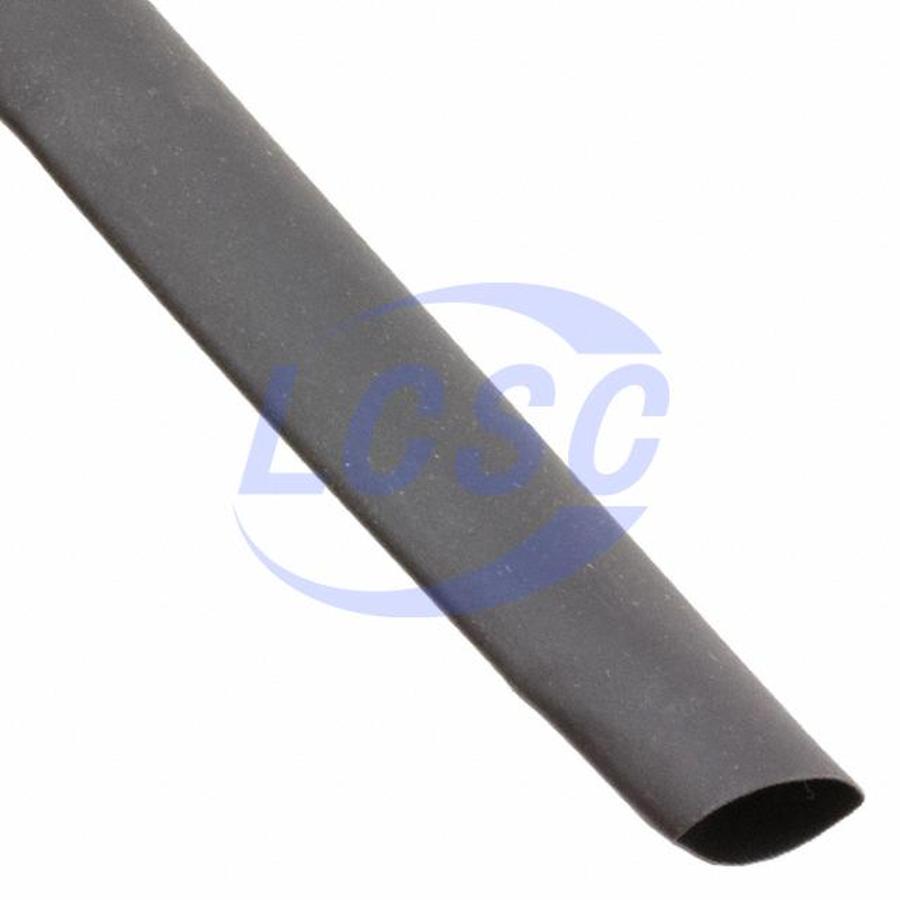

HEAT SHRINK TUBING, FIT 221L LSZH, 2:1, 0.25 ", 6.35 MM, BLACK, 200 FT, 60.96 M

Part	Shelf Life Start	Length	Length	Type	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Color	Length [x]	Length [x]	Features	Shrink Temperature	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Shelf Life	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]
ALPHA WIRE F221L1/4 BK004	Date of Manufacture	1.52 m 3.05 m 7.6 m 15.2 m 61 m	10 ft 25 ft 50 ft 60 in 200 ft	Tubing Flexible	0.022 in	0.56 mm	125 °C	-40 C	Black	100 ft	30.5 m	Flame Retardant Low Smoke	100 °C	1	2	0.25 "	6.35 mm	Polyolefin (PO) Irradiated	300 Months	0.125 in	3.18 mm
