2132415 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

EP2.5 SHROUDED HDR ASSY 15P VERT W/OBOSS

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Length - Post [x]	Contact Length - Post	Contact Type	Mounting Type	Number of Positions	Voltage Rating	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Rows	Insulation Height [z]	Insulation Height [z]	Contact Material	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Shape	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Style	Connector Type	Number of Positions Loaded	Termination	Contact Finish - Post	Insulation Color	Shrouding
TE Connectivity AMP Connectors 1-2132415-5	2.03 µm	80 µin	General Purpose Industrial Lighting	0.134 "	3.4 mm	Male Pin	Through Hole	15	250 VAC	UL94 V-0	2.5 mm	0.098 in	2.03 µm	80 µin	1	8.8 mm	0.346 in	Brass	Nylon 6/6 Polyamide (PA66)	-55 C	105 ░C	Friction Lock	Circular	4.2 A	0.141 in	3.6 mm	Board to Cable/Wire	Header	All	Kinked Pin Solder	Tin	Natural	Shrouded - 4 Wall
TE Connectivity AMP Connectors 2-2132415-0	2.03 µm	80 µin	General Purpose Industrial Lighting	0.134 "	3.4 mm	Male Pin	Through Hole	20	250 VAC	UL94 V-0	2.5 mm	0.098 in	2.03 µm	80 µin	1	8.8 mm	0.346 in	Brass	Nylon 6/6 Polyamide (PA66)	-55 C	105 ░C	Friction Lock	Circular	4.2 A	0.141 in	3.6 mm	Board to Cable/Wire	Header	All	Kinked Pin Solder	Tin	Natural	Shrouded - 4 Wall

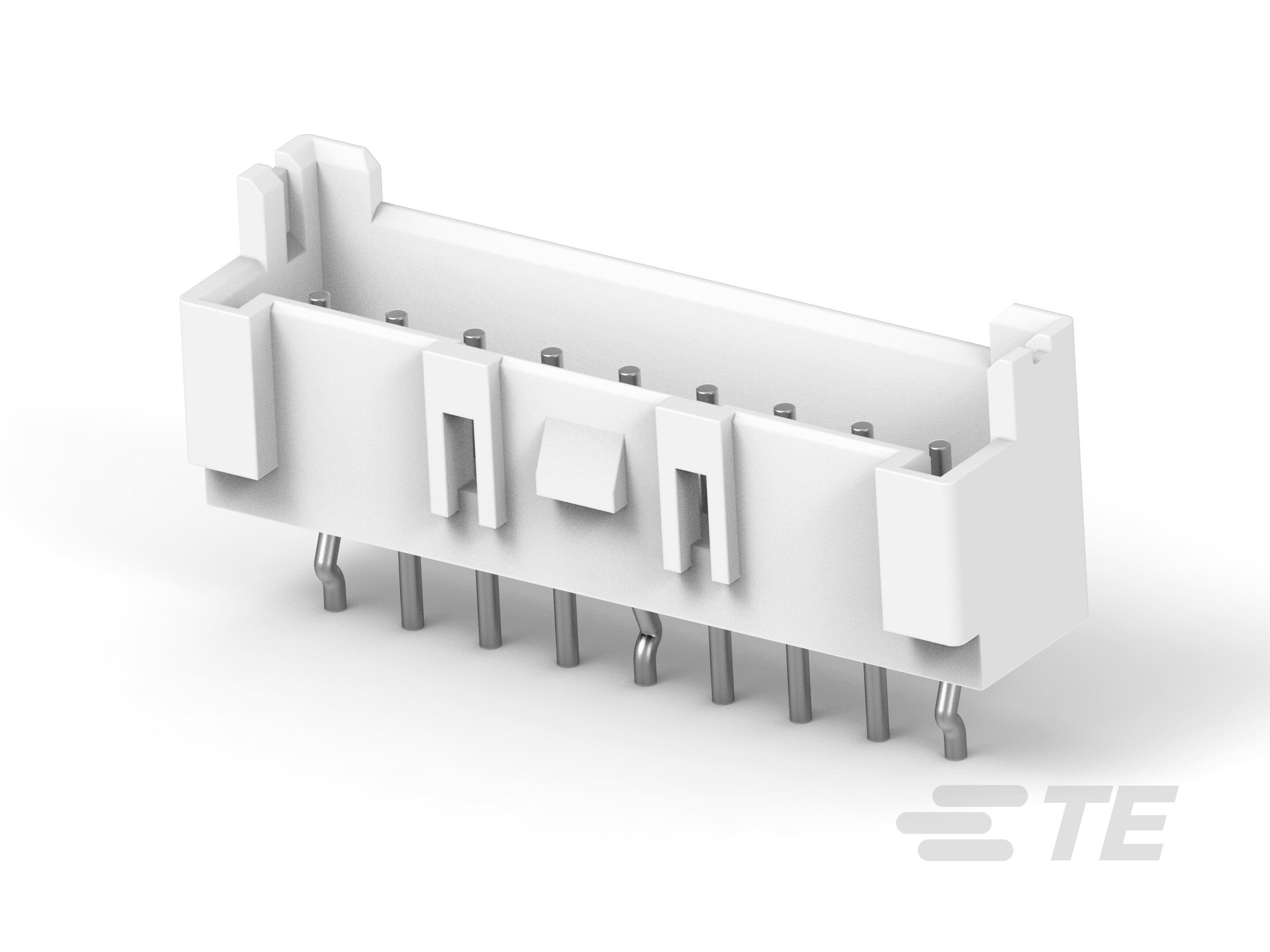

TE Connectivity AMP Connectors 2132415-9	2.03 µm	80 µin	General Purpose Industrial Lighting	0.134 "	3.4 mm	Male Pin	Through Hole	9	250 VAC	UL94 V-0	2.5 mm	0.098 in	2.03 µm	80 µin	1	8.8 mm	0.346 in	Brass	Nylon 6/6 Polyamide (PA66)	-55 C	105 ░C	Friction Lock	Circular	4.2 A	0.141 in	3.6 mm	Board to Cable/Wire	Header	All	Kinked Pin Solder	Tin	Natural	Shrouded - 4 Wall

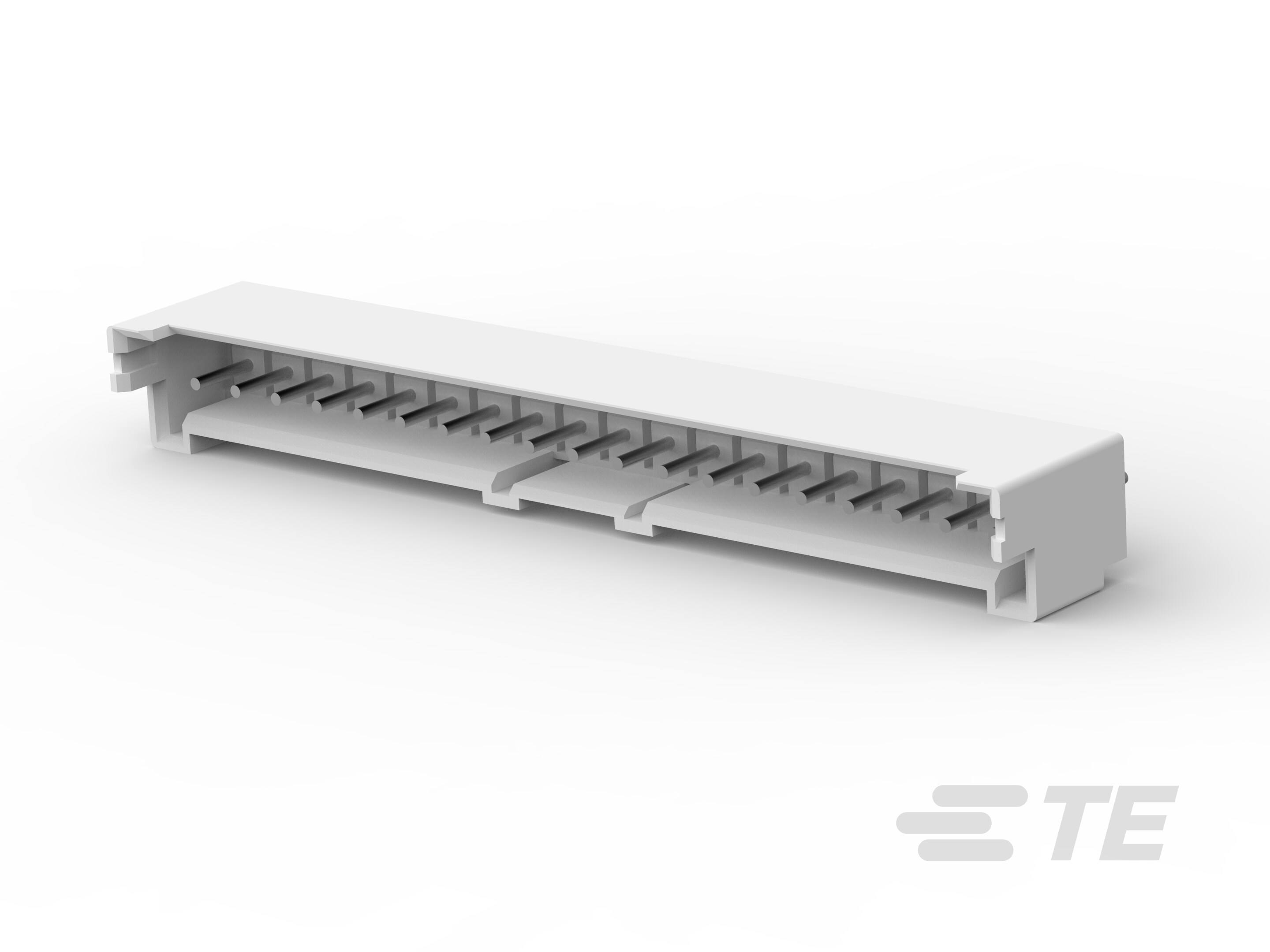

TE Connectivity AMP Connectors 1-2132415-9	2.03 µm	80 µin	General Purpose Industrial Lighting	0.134 "	3.4 mm	Male Pin	Through Hole	19	250 VAC	UL94 V-0	2.5 mm	0.098 in	2.03 µm	80 µin	1	8.8 mm	0.346 in	Brass	Nylon 6/6 Polyamide (PA66)	-55 C	105 ░C	Friction Lock	Circular	4.2 A	0.141 in	3.6 mm	Board to Cable/Wire	Header	All	Kinked Pin Solder	Tin	Natural	Shrouded - 4 Wall

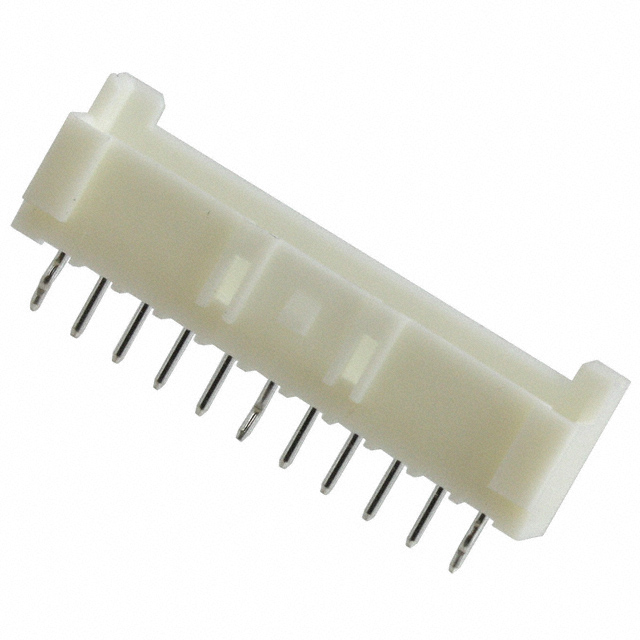

TE Connectivity AMP Connectors 1-2132415-1	2.03 µm	80 µin	General Purpose Industrial Lighting	0.134 "	3.4 mm	Male Pin	Through Hole	11	250 VAC	UL94 V-0	2.5 mm	0.098 in	2.03 µm	80 µin	1	8.8 mm	0.346 in	Brass	Nylon 6/6 Polyamide (PA66)	-55 C	105 ░C	Friction Lock	Circular	4.2 A	0.141 in	3.6 mm	Board to Cable/Wire	Header	All	Kinked Pin Solder	Tin	Natural	Shrouded - 4 Wall
