CBTL04083 Series
Manufacturer: NXP USA Inc.
Beta
⌘K

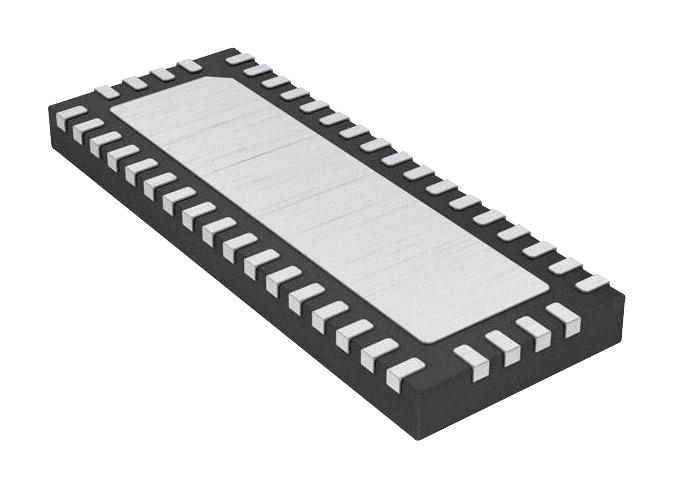

3.3 V, 4 DIFFERENTIAL CHANNEL, 2 : 1 MULTIPLEXER/DEMULTIPLEXER SWITCH FOR PCI EXPRESS GEN3/ REEL ROHS COMPLIANT: YES
| Part | Voltage - Supply, Single (V+) (Minimum) | Voltage - Supply, Single (V+) (Maximum) | Applications | -3db Bandwidth | Package / Case | Operating Temperature (Max) | Operating Temperature (Min) | On-State Resistance (Typ) | Multiplexer Inputs | Demultiplexer Outputs | Mounting Type | Features | Package Name | Package Width | Package Length | Number of Channels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | 3 V | 3.6 V | DisplayPort PCIe USB | 8.3 GHz | 42-VFQFN Exposed Pad | 85 °C | -40 °C | 6 Ohm | 2 | 1 | Surface Mount | Bi-Directional SATA | 42-HVQFN | 9 mm | 3.5 mm | 4 |
 NXP USA Inc. | 3 V | 3.6 V | DisplayPort PCIe USB | 8 GHz | 42-VFQFN Exposed Pad | 85 °C | -40 °C | 6 Ohm | 2 | 1 | Surface Mount | Bi-Directional SATA | 42-HVQFN | 9 mm | 3.5 mm | 4 |
