PM5-S17R110 Series
Manufacturer: Bivar Inc.
Beta
⌘K

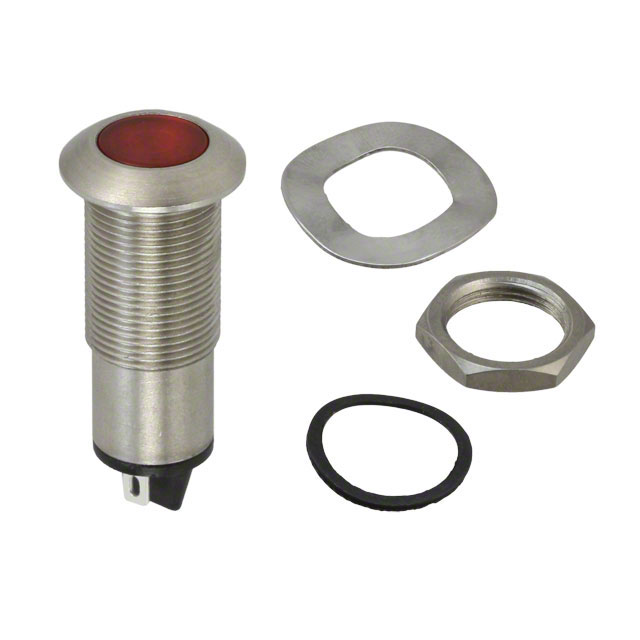

PANEL MOUNT ASSEMBLY RED, 12.7MM
| Part | Panel Cutout Dimensions | Panel Cutout Dimensions | Termination Style | Lens Style | Viewing Angle | Millicandela Rating | Panel Cutout Shape | Lamp Color | Type | Voltage | Ratings | Ingress Protection | Current | Wavelength - Peak | Lens Color | Lens Size [diameter] | Lens Transparency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bivar Inc. | 0.5 in | 12.7 mm | Quick Connect - 0.110" (2.8mm) | Round with Flat Top | 120 ° | 600 mcd | Round | Red | LED | 100 V | AC | IP67 | 20 mA | 630 nm | Red | 10.2 mm Dia | Fresnel |
