147734 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

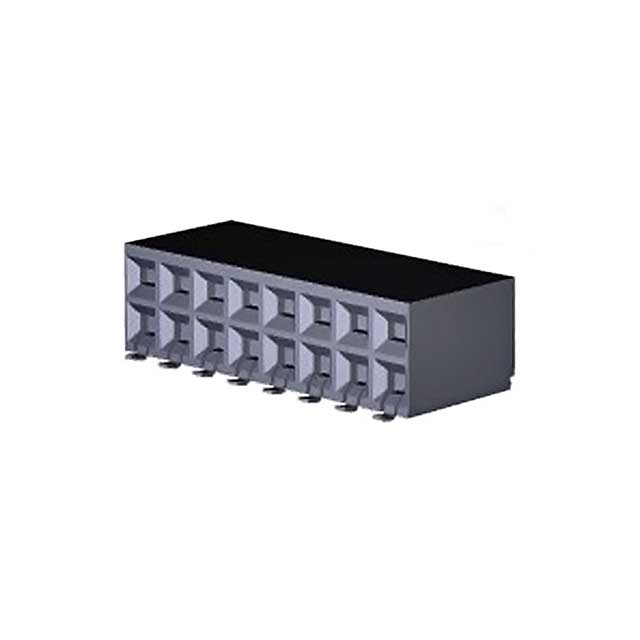

CONN RCPT 16POS 0.1 GOLD SMD R/A
| Part | Contact Finish Thickness - Post | Contact Material | Insulation Material | Contact Shape | Number of Positions | Connector Type | Number of Rows [custom] | Number of Positions Loaded | Fastening Type | Contact Type | Contact Finish - Post | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Mounting Type | Insulation Height [z] | Insulation Height [z] | Contact Finish - Mating | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | Phosphor Bronze | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Square | 16 | Receptacle | 2 | All | Push-Pull | Female Socket | Tin | Solder | 0.25 µm | 10 µin | -55 C | 125 °C | 0.1 " | 2.54 mm | 2 A | 0.1 in | 2.54 mm | Right Angle Surface Mount | 0.238 " | 6.05 mm | Gold | Black |
