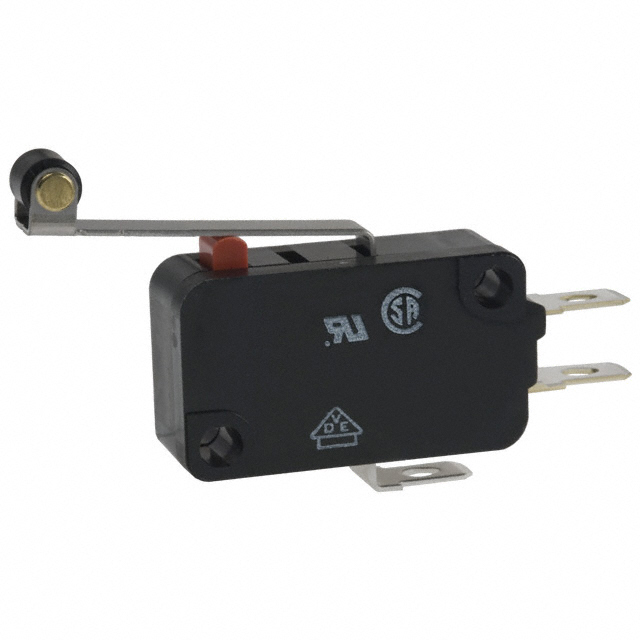

VX-56 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION SPDT 5A 125V
| Part | Current Rating (Amps) | Differential Travel | Differential Travel | Operating Position | Operating Position | Voltage Rating - AC | Circuit | Mounting Type | Ingress Protection | Voltage Rating - DC | Mechanical Life | Operating Temperature [Min] | Operating Temperature [Max] | Release Force | Electrical Life | Overtravel [custom] | Overtravel [custom] | Actuator Type | Switch Function | Termination Style | Termination Style | Termination Style | Operating Force | Pretravel | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 5 A | 2 mm | 0.08 in | 20.7 mm | 0.815 in | 125 V | SPDT | Chassis Mount | IP40 | 30 V | 50000000 Cycles | -25 °C | 80 °C | 1.02 gf | 500000 Cycles | 2.5 mm | 0.098 " | Lever Roller | On-Mom | 4.7 mm | 0.187 in | Solder Quick Connect | 18 gf | 7.2 mm | 0.283 in |
 Omron Electronics Inc-EMC Div | 5 A | 0.8 mm | 0.031 in | 20.7 mm | 0.815 in | 125 V | SPDT | Chassis Mount | IP40 | 30 V | 50000000 Cycles | -25 °C | 80 °C | 500000 Cycles | 1.6 mm | 0.062 " | Lever Roller | On-Mom | 4.7 mm | 0.187 in | Solder Quick Connect | 30 gf | 4 mm | 0.157 in |
