GH1F1C-P Series
Manufacturer: ODU
Beta
⌘K

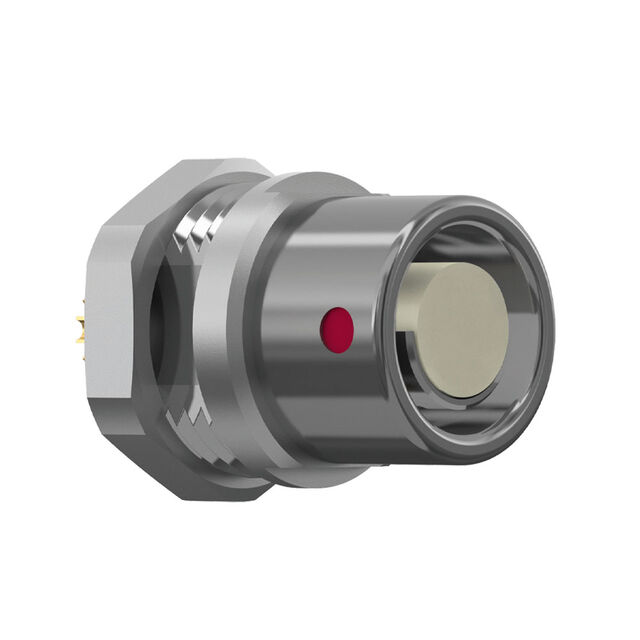

ODU MINI-SNAP RECEPT, STY H, SZ
| Part | Mounting Feature | Shielding | Shell Material | Fastening Type | Connector Type | Contact Finish - Mating | Insert Material | Orientation [custom] | Number of Positions | Ingress Protection | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Shell Finish | Shell Size - Insert | Mounting Type | Applications | Voltage Rating | Material Flammability Rating | Color | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bulkhead - Rear Side Nut | Unshielded | Brass | Push-Pull | Receptacle Female Sockets | Gold | Polyetheretherketone (PEEK) | 1 | 6 | IP50 - Dust Protected | 7.5 A | 120 °C | -40 C | Metal | Chrome over Nickel | 1 | Panel Mount | Industrial Medical Military Testing Equipment & Measurement | 333 V | UL94 V-0 | Silver | Brass |
