02S123 Series
Manufacturer: Rosenberger
Beta
⌘K

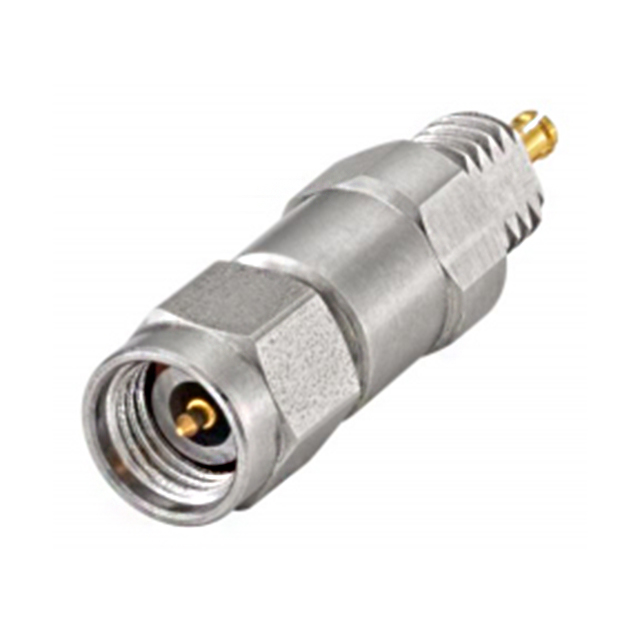

PRECISION 2.92/MINI-COAX ADAPTER
| Part | Body Finish | Body Material | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Insertion Loss | Center Contact Material | Mating Cycles | Center Contact Plating | Center Gender | Adapter Type | Style | Mounting Type | Convert To (Adapter End) | Conversion Type | Frequency - Max [Max] | Convert From (Adapter End) | Convert From (Adapter End) | Impedance | Adapter Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Gold | Beryllium Copper Stainless Steel | Polystyrene (PS) Polytetrafluoroethylene (PTFE) | 85 °C | -40 C | 0.25 dB | Beryllium Copper | 500 | Gold | Male to Male | Plug to Plug | Straight | Free Hanging (In-Line) | 2.92mm (OS-2.9) Plug Male Pin | Same Series | 40 GHz | Plug Male Pin | 2.92 mm | 50 Ohms | RPC-2.92 to RPC-2.92 |
