039503 Series

Manufacturer: Molex

Catalog

TERM BLOCK PLUG 14POS 3.5MM

PartNumber of LevelsMaterial Flammability RatingTermination StyleVoltage - ULNumber of PositionsTypeTorque - ScrewTorque - ScrewWire Gauge or Range - AWG [Max]Wire Gauge or Range - AWG [Min]Operating Temperature [Min]Operating Temperature [Max]Mounting TypeContact MaterialCurrent - ULColorPitch [x]Pitch [x]Positions Per LevelPlug Wire EntryContact Mating FinishInsulation HeightInsulation HeightWire Strip Length
Molex
0395032014
1
UL94 V-0
Screw - Rising Cage Clamp
300 V
14
Plug
Female Sockets
0.23 Nm
2 Lb-In
30 AWG
16 AWG
-40 °C
115 °C
Free Hanging (In-Line)
Phosphor Bronze
8 A
Black
3.5 mm
0.138 in
14
270 °
Tin
18.8 mm
0.74 in
6.5 mm

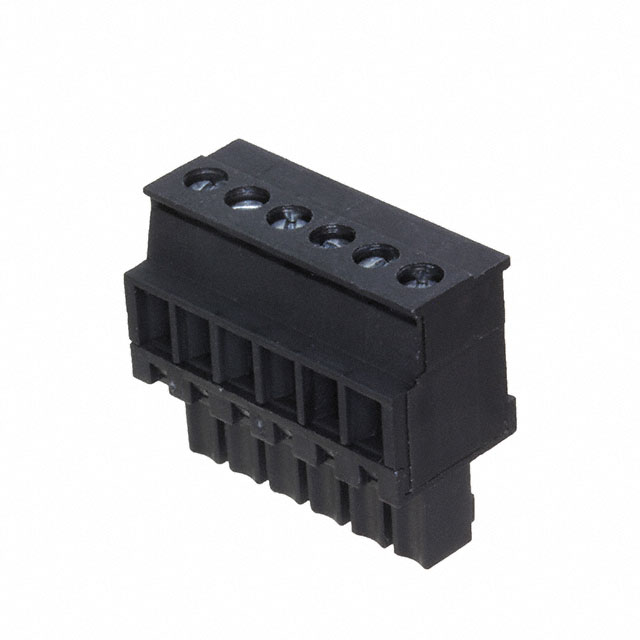

0395032006
Molex
0395032006
1
UL94 V-0
Screw - Rising Cage Clamp
300 V
6
Plug
Female Sockets
0.23 Nm
2 Lb-In
30 AWG
16 AWG
-40 °C
115 °C
Free Hanging (In-Line)
Phosphor Bronze
8 A
Black
3.5 mm
0.138 in
6
270 °
Tin
18.8 mm
0.74 in
6.5 mm
0395038004
Molex
0395038004
1
UL94 V-0
Screw - Rising Cage Clamp
300 V
4
Plug
Female Sockets
0.23 Nm
2 Lb-In
30 AWG
16 AWG
-40 °C
115 °C
Free Hanging (In-Line)
Phosphor Bronze
8 A
Green
3.5 mm
0.138 in
4
90 °
Tin
18.8 mm
0.74 in
6.5 mm

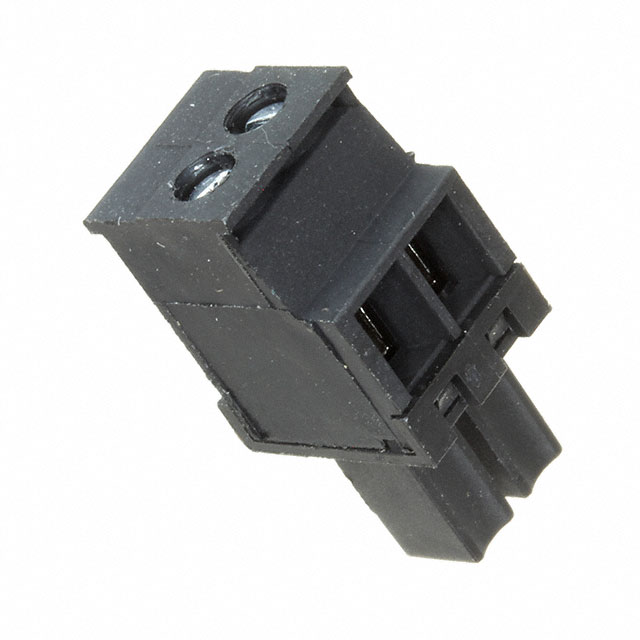

Eurostyle ESE 39503 Series
Molex
0395032002
1
UL94 V-0
Screw - Rising Cage Clamp
300 V
2
Plug
Female Sockets
0.23 Nm
2 Lb-In
30 AWG
16 AWG
-40 °C
115 °C
Free Hanging (In-Line)
Phosphor Bronze
8 A
Black
3.5 mm
0.138 in
2
270 °
Tin
18.8 mm
0.74 in
6.5 mm
Molex
0395038014
1
UL94 V-0
Screw - Rising Cage Clamp
300 V
14
Plug
Female Sockets
0.23 Nm
2 Lb-In
30 AWG
16 AWG
-40 °C
115 °C
Free Hanging (In-Line)
Phosphor Bronze
8 A
Green
3.5 mm
0.138 in
14
90 °
Tin
18.8 mm
0.74 in
6.5 mm

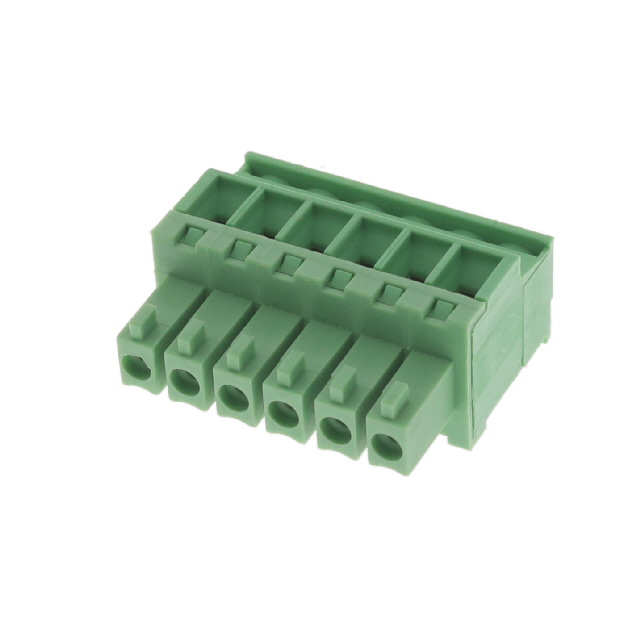

0395038006
Molex
0395038006
1
UL94 V-0
Screw - Rising Cage Clamp
300 V
6
Plug
Female Sockets
0.23 Nm
2 Lb-In
30 AWG
16 AWG
-40 °C
115 °C
Free Hanging (In-Line)
Phosphor Bronze
8 A
Green
3.5 mm
0.138 in
6
90 °
Tin
18.8 mm
0.74 in
6.5 mm
Molex-39503-3016 Connector Terminal Blocks Conn Eurostyle Block PL 16 POS 3.5mm Screw ST Cable Mount 8A/Contact Eurostyle™
Molex
0395033006
1
UL94 V-0
Screw - Rising Cage Clamp
300 V
6
Plug
Female Sockets
0.23 Nm
2 Lb-In
30 AWG
16 AWG
-40 °C
115 °C
Free Hanging (In-Line)
Phosphor Bronze
8 A
Black
3.5 mm
0.138 in
6
90 °
Tin
18.8 mm
0.74 in
6.5 mm
Molex
0395033003
1
UL94 V-0
Screw - Rising Cage Clamp
300 V
Plug
Female Sockets
0.23 Nm
2 Lb-In
30 AWG
16 AWG
-40 °C
115 °C
Free Hanging (In-Line)
Phosphor Bronze
8 A
Black
3.5 mm
0.138 in
3
90 °
Tin
18.8 mm
0.74 in
6.5 mm

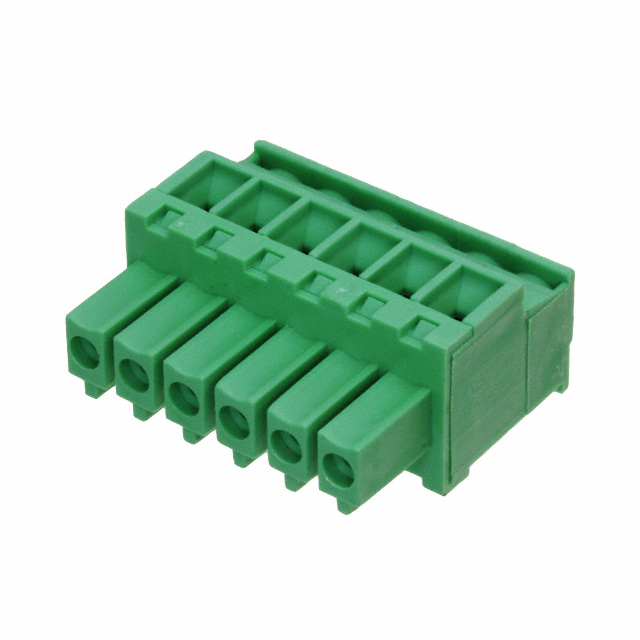

0395037006
Molex
0395037006
1
UL94 V-0
Screw - Rising Cage Clamp
300 V
6
Plug
Female Sockets
0.23 Nm
2 Lb-In
30 AWG
16 AWG
-40 °C
115 °C
Free Hanging (In-Line)
Phosphor Bronze
8 A
Green
3.5 mm
0.138 in
6
270 °
Tin
18.8 mm
0.74 in
6.5 mm
Molex
0395037017
1
UL94 V-0
Screw - Rising Cage Clamp
300 V
Plug
Female Sockets
0.23 Nm
2 Lb-In
30 AWG
16 AWG
-40 °C
115 °C
Free Hanging (In-Line)
Phosphor Bronze
8 A
Green
3.5 mm
0.138 in
17
270 °
Tin
18.8 mm
0.74 in
6.5 mm
