Sta-Strap Series

Catalog

WIRE LABELS & MARKERS MARKER TIE, 2-PIECE 6.7L STD

Part	Width [x]	Width [x]	Color	Mounting Type	Tensile Strength	Tensile Strength	Length - Approximate [x]	Material	Length - Actual	Length - Actual	Length - Actual	Wire/Cable Tie Type	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Features	Shelf Life	Shelf Life Start	Length - Approximate	Length - Actual [x]	Length - Actual [x]	Width	Width [y]

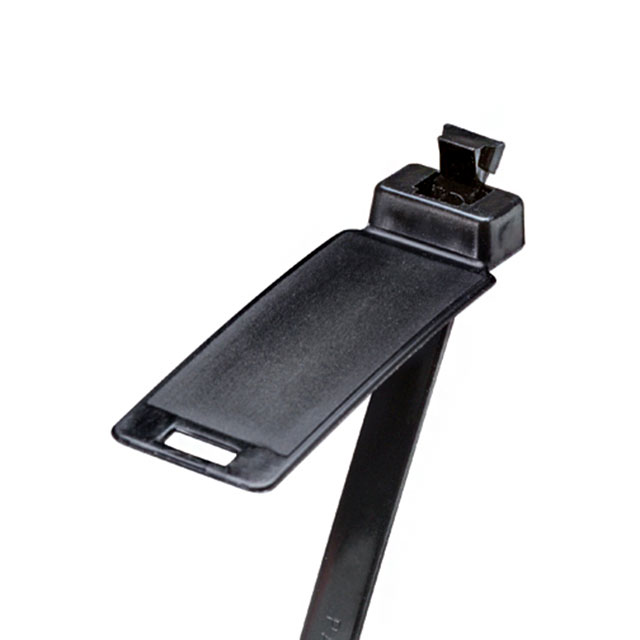

Panduit Corp SSM2S-D0	4.57 mm	0.18 in	Black	Free Hanging (In-Line)	22.68 kg	50 lbs	6.75 in	Polyamide (PA66) Nylon 6/6	6.7 in	0.558 ft	170.08 mm	Marker Strap/Flag Tie	1.75 in	44.45 mm	2-Piece Design Weather Resistant Write-On Area
Panduit Corp SST2S-M20	4.57 mm	0.18 in	Black	Free Hanging (In-Line)	22.68 kg	50 lbs	6.75 in	Polyamide (PA66) Nylon 6/6	6.7 in	0.558 ft	170.08 mm	Locking Standard	1.75 in	44.45 mm	2-Piece Design

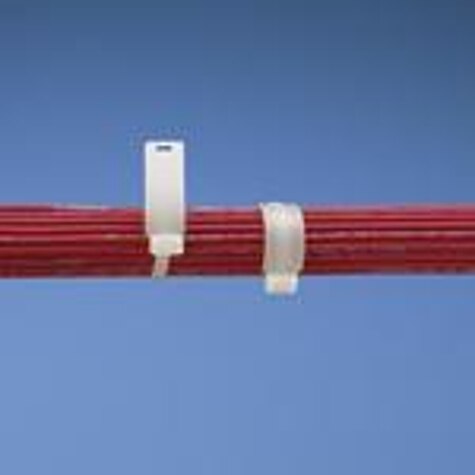

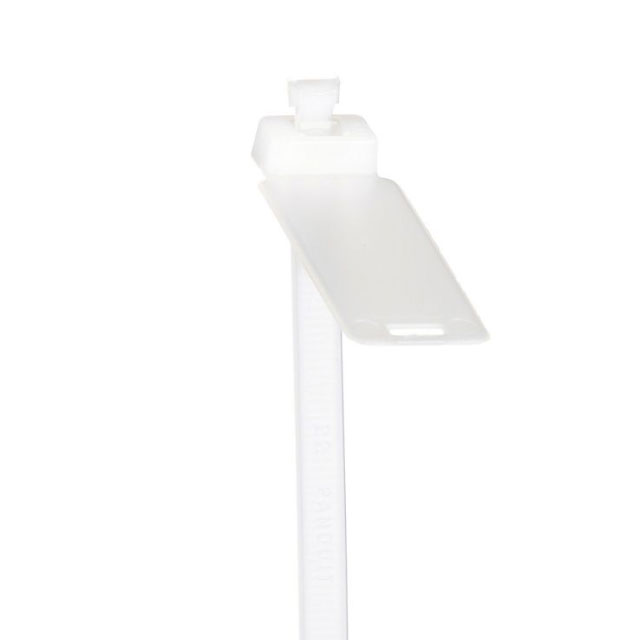

Panduit Corp SSM2S-D	4.57 mm	0.18 in	Natural	Free Hanging (In-Line)	22.68 kg	50 lbs	6.75 in	Polyamide (PA66) Nylon 6/6	6.7 in	0.558 ft	170.08 mm	Marker Strap/Flag Tie	1.75 in	44.45 mm	2-Piece Design Write-On Area
Panduit Corp SSB2S-M	4.57 mm	0.18 in	Natural	Free Hanging (In-Line)	13.61 kg	30 lbs	6.75 in	Polyamide (PA66) Nylon 6/6	6.75 in	0.563 '	171.45 mm	Double Head Locking	1.25 in	31.75 mm		48 Months	Date of Manufacture

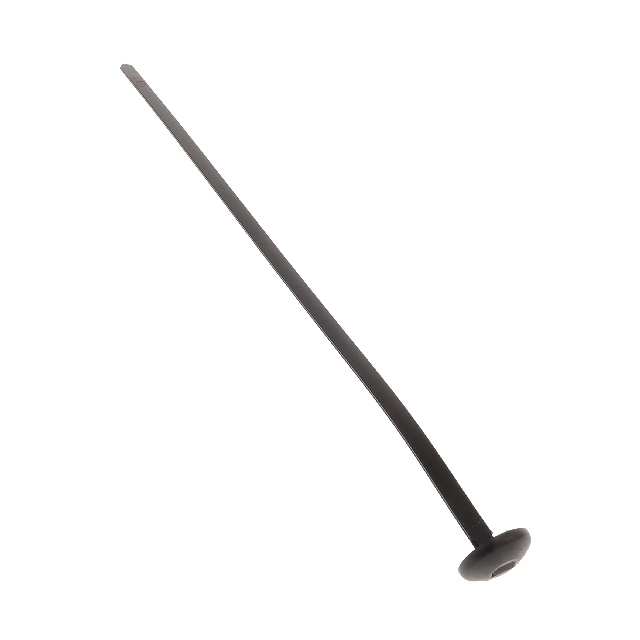

Panduit Corp SSPM4HP-L300		0.3 in	Black	Panel Mount	54.43 kg	120 lbs		Polyamide (PA66) Nylon 6/6				Locking Standard	4 in	101.6 mm	Centering Pilot Heat Stabilized Weather Resistant			14.75 in	375.92 mm	1.233 ft	7.62 mm
Panduit Corp SST3I-C			Natural	Free Hanging (In-Line)	18.14 kg	40 lbs		Polyamide (PA66) Nylon 6/6	11 "		279.4 mm	Locking Standard	3 in	76.2 mm	2-Piece Design			11 in		0.917 '	3.43 mm	0.135 "
