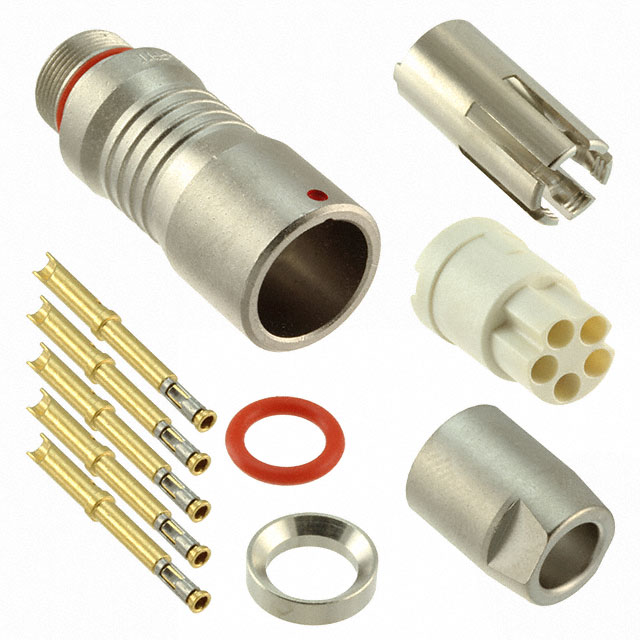

HS2L5F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K
CONN RCPT FMALE 5POS GOLD CRIMP
| Part | Termination | Shielding | Insert Material | Applications | Voltage Rating | Primary Material | Contact Finish - Mating | Connector Type | Ingress Protection | Fastening Type | Orientation | Color | Shell Finish | Mounting Type | Shell Material | Material Flammability Rating | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Crimp Solder Cup | Shielded | Liquid Crystal Polymer (LCP) | Agriculture Audio General Medical Testing Equipment & Measurement | 125 VAC | Metal | Gold | Receptacle Female Sockets | IP66 IP67 IP68 | Push-Pull | Keyed | Silver | Electroless Nickel | Free Hanging (In-Line) | Copper Alloy | UL94 HF-1 | 5.49 mm | 4.57 mm | 0.18 in | 0.216 in | 135 °C | -40 °C | Copper Alloy |
