5GSH Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Actuator Material	Switch Travel	Mechanical Life	Mounting Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Operating Force	Actuator Orientation	Features	Actuator Type	Illumination	Ingress Protection	Contact Rating @ Voltage	Illumination Voltage (Nominal)	Circuit	Switch Function	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical [z]

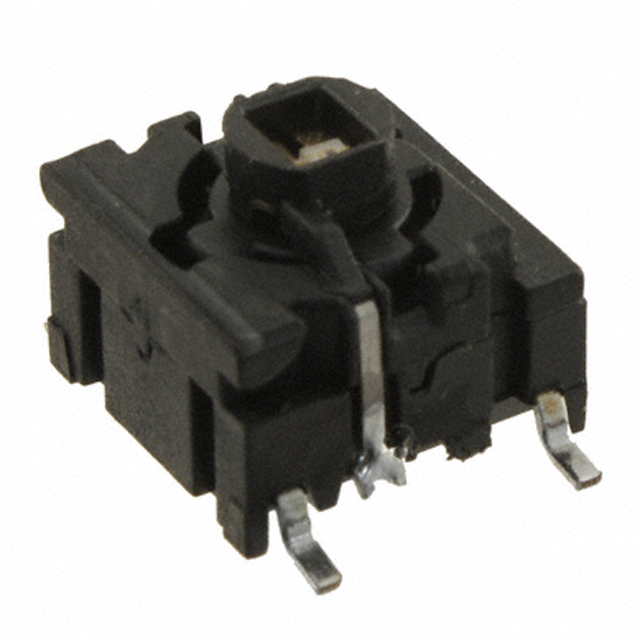

MEC Switches 5GSH93542	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles	Surface Mount	Gull Wing	160 °C	-40 C	LED Yellow	350 gf	Top Actuated	Sealed - Flux Protection	Plunger for Cap	Illuminated	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	2 VDC	SPST-NO	Off-Mom	10.1 mm	10.1 mm	6.4 mm

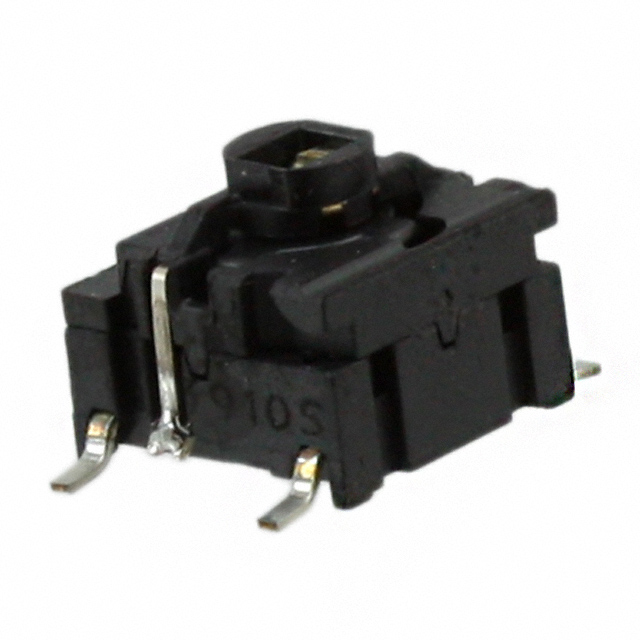

MEC Switches 5GSH93501	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles	Surface Mount	Gull Wing	160 °C	-40 C	Blue LED	350 gf	Top Actuated	Sealed - Flux Protection	Plunger for Cap	Illuminated	IP67 - Dust Tight Waterproof	0.05 A 24 VDC		SPST-NO	Off-Mom	10.1 mm	10.1 mm	6.4 mm
MEC Switches 5GSH965	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles	Surface Mount	Gull Wing	160 °C	-40 C		650 gf	Top Actuated	Sealed - Flux Protection	Plunger for Cap	Non-Illuminated	IP67 - Dust Tight Waterproof	0.05 A 24 VDC		SPST-NO	Off-Mom	10.1 mm	10.1 mm	6.4 mm

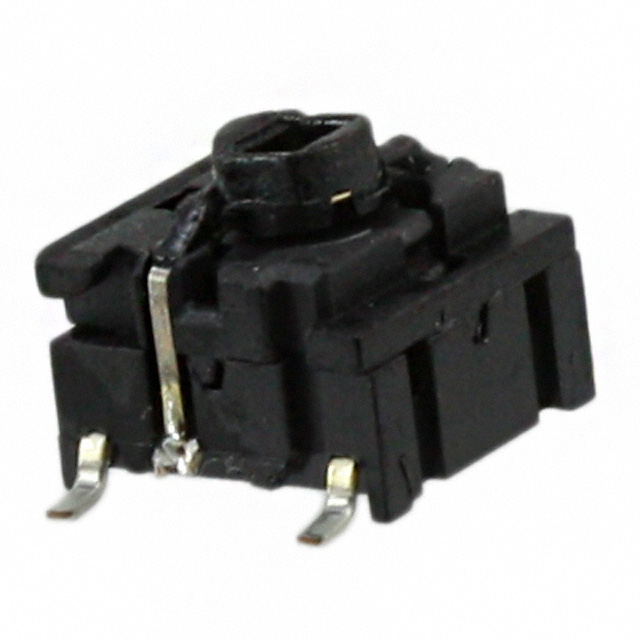

MEC Switches 5GSH93582	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles	Surface Mount	Gull Wing	160 °C	-40 C	LED Red	350 gf	Top Actuated	Sealed - Flux Protection	Plunger for Cap	Illuminated	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	2 VDC	SPST-NO	Off-Mom	10.1 mm	10.1 mm	6.4 mm

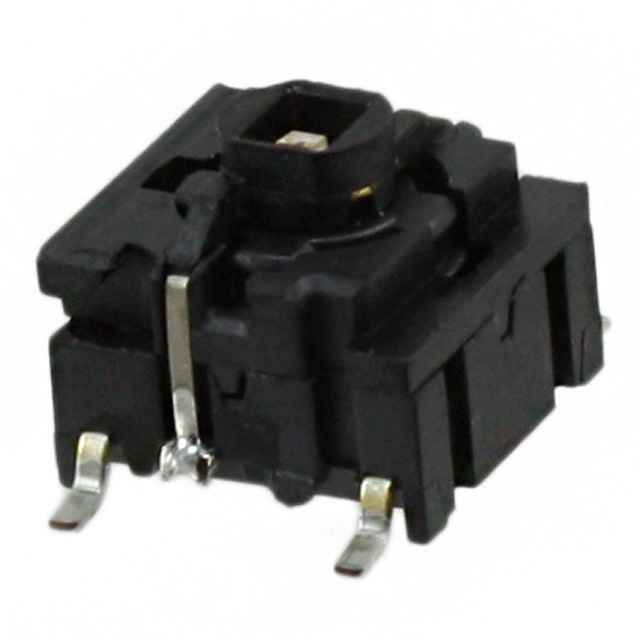

MEC Switches 5GSH93522	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles	Surface Mount	Gull Wing	160 °C	-40 C	Green LED	350 gf	Top Actuated	Sealed - Flux Protection	Plunger for Cap	Illuminated	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	2.2 VDC	SPST-NO	Off-Mom	10.1 mm	10.1 mm	6.4 mm

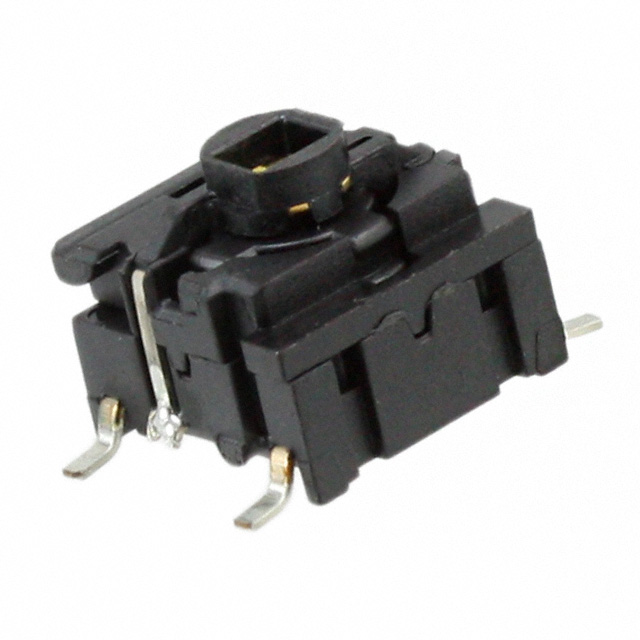

MEC Switches 5GSH93561	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles	Surface Mount	Gull Wing	160 °C	-40 C	LED White	350 gf	Top Actuated	Sealed - Flux Protection	Plunger for Cap	Illuminated	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	3.05 VDC	SPST-NO	Off-Mom	10.1 mm	10.1 mm	6.4 mm

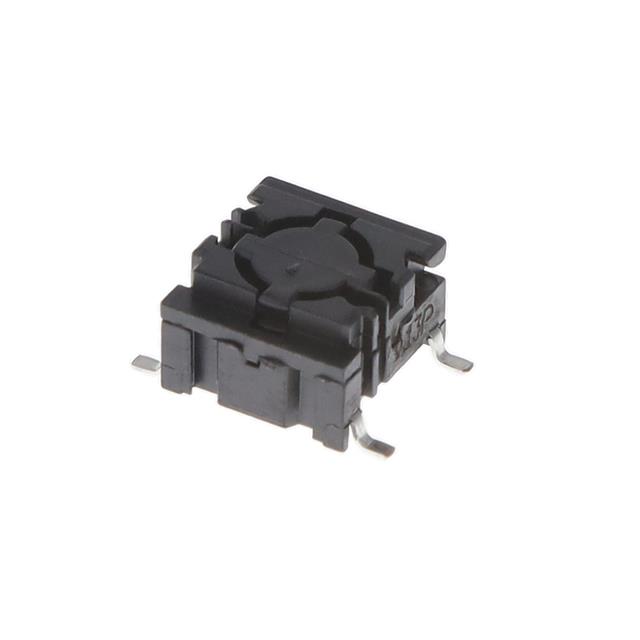

MEC Switches 5GSH920	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles	Surface Mount	Gull Wing	160 °C	-40 C		0.2 kgf	Top Actuated	Sealed - Flux Protection	Plunger for Cap	Non-Illuminated	IP67 - Dust Tight Waterproof	0.05 A 24 VDC		SPST-NO	Off-Mom	10.1 mm	10.1 mm	6.4 mm

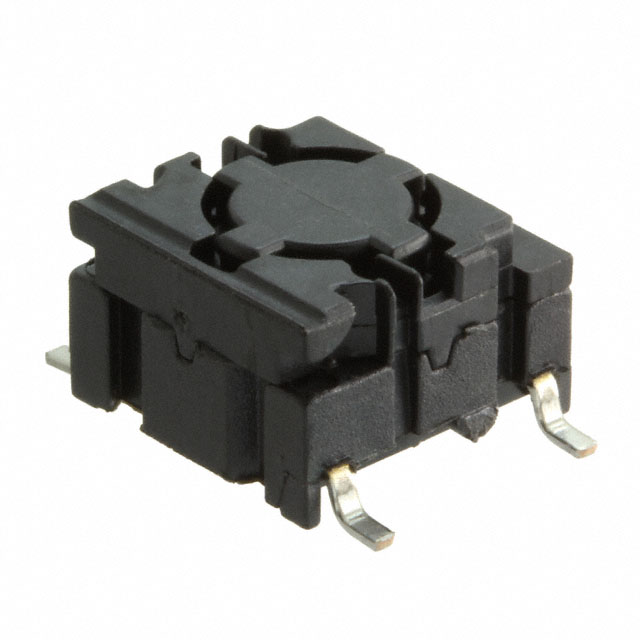

MEC Switches 5GSH935	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles	Surface Mount	Gull Wing	160 °C	-40 C		350 gf	Top Actuated	Sealed - Flux Protection	Plunger for Cap	Non-Illuminated	IP67 - Dust Tight Waterproof	0.05 A 24 VDC		SPST-NO	Off-Mom	10.1 mm	10.1 mm	6.4 mm
MEC Switches 5GSH93529	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles	Surface Mount	Gull Wing	160 °C	-40 C	Green LED	350 gf	Top Actuated		Plunger for Cap	Illuminated	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	3.3 VDC	SPST-NO	Off-Mom	10.1 mm	10.1 mm	6.4 mm

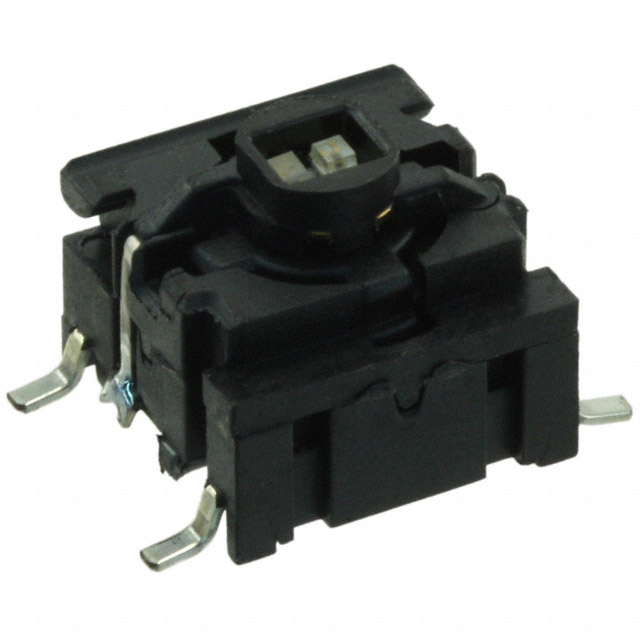

MEC Switches 5GSH9358222	Polyphenylene Sulfide (PPS)	1 mm	10000000 Cycles	Surface Mount	Gull Wing	160 °C	-40 C	Green/Red LED	350 gf	Top Actuated	Sealed - Flux Protection	Plunger for Cap	Illuminated	IP67 - Dust Tight Waterproof	0.05 A 24 VDC	2 VDC 2.2 VDC	SPST-NO	Off-Mom	10.1 mm	10.1 mm	6.4 mm
