A20LAC-P Series
Manufacturer: ODU
Beta
⌘K

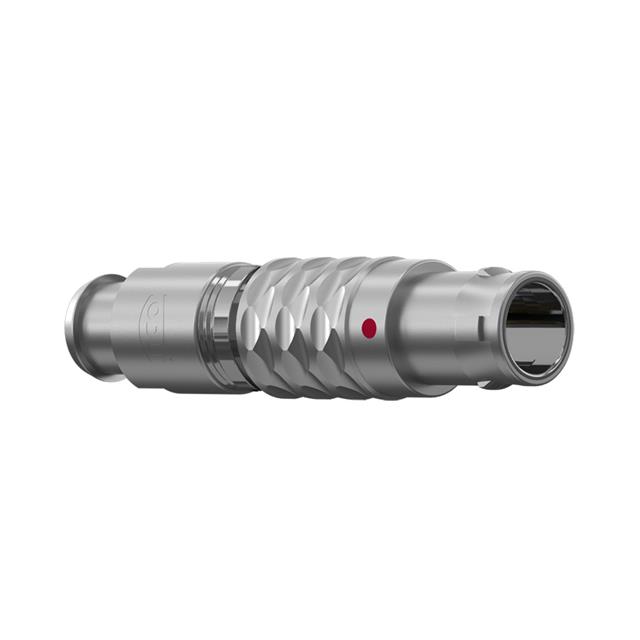

ODU MINI-SNAP PLUG, STY 2, SZ 0,
| Part | Applications | Shell Size - Insert [custom] | Shielding | Mounting Type | Primary Material | Contact Material | Cable Opening | Cable Opening [Max] | Cable Opening [Min] | Backshell Material, Plating | Number of Positions | Ingress Protection | Features | Current Rating (Amps) | Voltage Rating | Insert Material | Contact Finish - Mating | Color | Shell Finish | Connector Type | Fastening Type | Shell Material | Orientation | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Industrial Medical Military Testing Equipment & Measurement | 0 | Unshielded | Free Hanging (In-Line) | Metal | Brass | 4 mm 5.2 mm | 0.205 in | 0.157 in | Brass Chrome over Nickel | 4 | IP50 - Dust Protected | Backshell Strain Relief | 7.5 A | 300 VDC | Polyetheretherketone (PEEK) | Gold | Silver | Chrome over Nickel | Plug Male Pins | Push-Pull | Brass | A | 120 °C | -40 C | |
Industrial Medical Military Testing Equipment & Measurement | 0 | Unshielded | Free Hanging (In-Line) | Metal | Brass | 4 mm 5.2 mm | 0.205 in | 0.157 in | Brass Chrome over Nickel | 7 | IP50 - Dust Protected | Backshell Strain Relief | 4 A | 300 VDC | Polyetheretherketone (PEEK) | Gold | Silver | Chrome over Nickel | Plug Male Pins | Push-Pull | Brass | A | 120 °C | -40 C | |
Industrial Medical Military Testing Equipment & Measurement | 0 | Unshielded | Free Hanging (In-Line) | Metal | Brass | 0.126 in 3.2 mm | 0.079 in 2 mm | Brass Chrome over Nickel | 2 | IP50 - Dust Protected | Backshell Strain Relief | 7.5 A | 500 V | Polyetheretherketone (PEEK) | Gold | Silver | Chrome over Nickel | Plug Male Pins | Push-Pull | Brass | A | 120 °C | -40 C |
