XR76205 Series
Manufacturer: MaxLinear, Inc.
Beta
⌘K

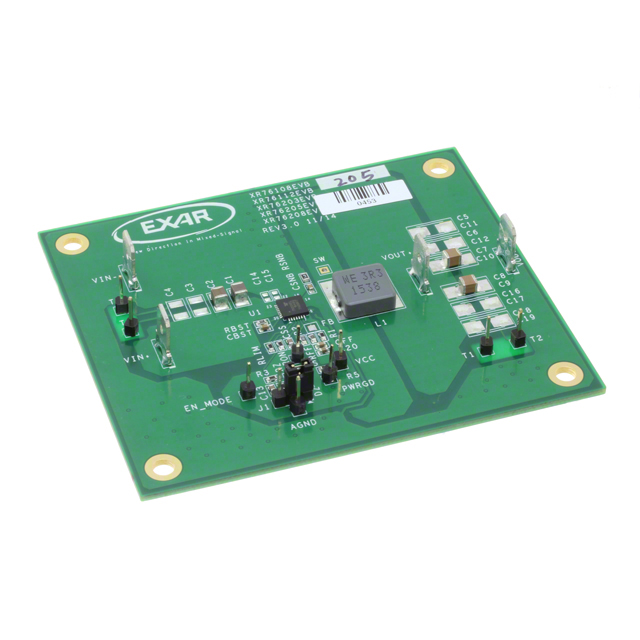

EVAL BOARD FOR XR76205-Q
| Part | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Contents | Current - Output | Regulator Topology | Frequency - Switching | Utilized IC / Part | Main Purpose | Voltage - Output | Voltage - Input | Voltage - Input [Max] | Voltage - Input [Min] | Mounting Type | Topology | Package / Case | Frequency - Switching [Max] | Frequency - Switching [Min] | Output Configuration | Voltage - Output (Min/Fixed) | Supplier Device Package | Voltage - Input (Min) [Min] | Function | Number of Outputs | Output Type | Voltage - Output (Max) [Max] | Synchronous Rectifier | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MaxLinear, Inc. | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | Board(s) | 5 A | Buck | 400 kHz | XR76205-Q | DC/DC Step Down | 3.3 V | 24 VDC | ||||||||||||||||||
 MaxLinear, Inc. | 1 Non-Isolated Output | Board(s) | 5 A | Buck | XR76205 | DC/DC Step Down | 3.3 V | 40 V | 5 V | |||||||||||||||||||||
 MaxLinear, Inc. | 5 A | Surface Mount | Buck | 30-PowerVFQFN | 800 kHz | 100 kHz | Positive | 0.6 V | 30-QFN (5x5) | 5 V | Step-Down | 1 | Adjustable | 40 V | -40 C | 125 °C |
