FODM217D Series

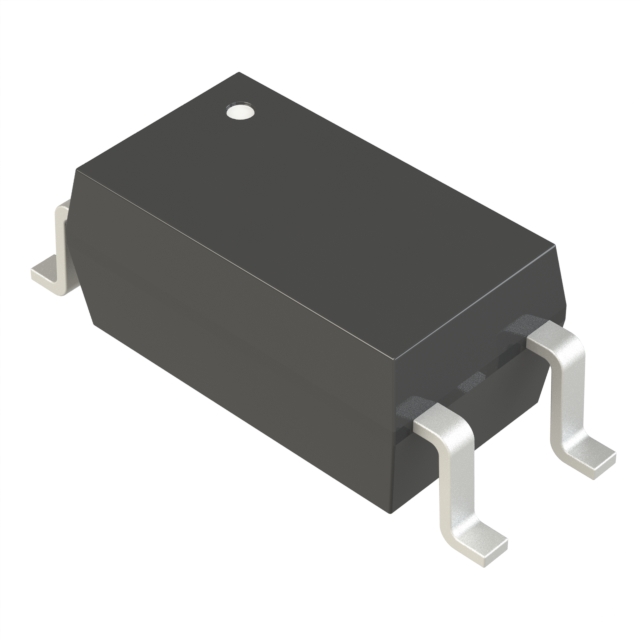

Single Channel, DC Sensing Input, Phototransistor Optocoupler In Half-Pitch Mini-Flat 4-Pin Package

Catalog

Single Channel, DC Sensing Input, Phototransistor Optocoupler In Half-Pitch Mini-Flat 4-Pin Package

Part	Output Type	Package / Case [y]	Package / Case	Package / Case [x]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Turn On / Turn Off Time (Typ)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Output / Channel	Vce Saturation (Max) [Max]	Voltage - Isolation	Current - DC Forward (If) (Max)	Current Transfer Ratio (Min) [Min]	Number of Channels	Mounting Type	Input Type	Current Transfer Ratio (Max) [Max]	Current Transfer Ratio (Max)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]
ON Semiconductor FODM217A	1.81 mOhm	4.4 mm	4-SOIC	0.173 in	-55 °C	110 °C	4-SOP	3 µs	3 µs	2 µs	50 mA	400 mV	3750 Vrms	50 mA	80 %	1	Surface Mount	DC	160 %
ON Semiconductor FODM217CV	1.81 mOhm	4.4 mm	4-SOIC	0.173 in	-55 °C	110 °C	4-SOP	3 µs	3 µs	2 µs	50 mA	400 mV	3750 Vrms	50 mA	200 %	1	Surface Mount	DC		400 %
ON Semiconductor FODM217CR2V	1.81 mOhm	4.4 mm	4-SOIC	0.173 in	-55 °C	110 °C	4-SOP	3 µs			50 mA	400 mV	3750 Vrms	50 mA	200 %	1	Surface Mount	DC		400 %	3 µs	3 µs
ON Semiconductor FODM217C	1.81 mOhm	4.4 mm	4-SOIC	0.173 in	-55 °C	110 °C	4-SOP	3 µs	3 µs	2 µs	50 mA	400 mV	3750 Vrms	50 mA	200 %	1	Surface Mount	DC		400 %
ON Semiconductor FODM217CR2	1.81 mOhm	4.4 mm	4-SOIC	0.173 in	-55 °C	110 °C	4-SOP	3 µs	3 µs	2 µs	50 mA	400 mV	3750 Vrms	50 mA	200 %	1	Surface Mount	DC		400 %
ON Semiconductor FODM217AV	1.81 mOhm	4.4 mm	4-SOIC	0.173 in	-55 °C	110 °C	4-SOP	3 µs	3 µs	2 µs	50 mA	400 mV	3750 Vrms	50 mA	80 %	1	Surface Mount	DC	160 %
ON Semiconductor FODM217BV	1.81 mOhm	4.4 mm	4-SOIC	0.173 in	-55 °C	110 °C	4-SOP	3 µs			50 mA	400 mV	3750 Vrms	50 mA	130 %	1	Surface Mount	DC		260 %	3 µs	3 µs
ON Semiconductor FODM217D	1.81 mOhm	4.4 mm	4-SOIC	0.173 in	-55 °C	110 °C	4-SOP	3 µs	3 µs	2 µs	50 mA	400 mV	3750 Vrms	50 mA	300 %	1	Surface Mount	DC	600 %

Catalog

Single Channel, DC Sensing Input, Phototransistor Optocoupler In Half-Pitch Mini-Flat 4-Pin Package

Key Features

• Current Transfer Ratio Ranges from 80 to 600% at IF = 5 mA, VCE = 5 V, TA = 25ºC- FODM217A - 80 to 160%- FODM217B - 130 to 260%- FODM217C - 200 to 400%- FODM217D - 300 to 600%

• Safety and Regulatory Approvals: - UL1577, 3750 VACRMS for 1 min - DIN EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage

• Applicable to Infrared Ray Reflow, 260ºC

Description

The FODM217 Series single channel, DC sensing input, optocoupler consists of one gallium arsenide (GaAs) infrared light emitting diode optically coupled to one phototransistor, in a compact, half-pitch, mini-flat, 4-pin package. The input-output isolation voltage, VISO, is rated at 3,750 VACRMS.
