TIL111M Series

6-Pin DIP Phototransistor Output Optocoupler

Catalog

6-Pin DIP Phototransistor Output Optocoupler

Part	Package / Case	Package / Case	Package / Case	Input Type	Rise / Fall Time (Typ) [Max]	Rise / Fall Time (Typ)	Current - DC Forward (If) (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output / Channel	Number of Channels	Supplier Device Package	Voltage - Output (Max) [Max]	Voltage - Isolation	Vce Saturation (Max) [Max]	Package / Case
ON Semiconductor TIL111VM	6-DIP	0.3 in	7.62 mm	DC	10 µs	10 µs	60 mA	Through Hole	100 °C	-40 °C	2 mA	1	6-DIP	30 V	7500 Vpk	400 mV
ON Semiconductor TIL111300	6-DIP	0.3 in	7.62 mm	DC	10 µs	10 µs	100 mA	Through Hole	100 °C	-55 °C	2 mA	1	6-DIP	30 V	5300 Vrms	400 mV
ON Semiconductor TIL111SR2M	6-SMD Gull Wing			DC	10 µs	10 µs	60 mA	Surface Mount	100 °C	-40 °C	2 mA	1	6-SMD	30 V	7500 Vpk	400 mV
ON Semiconductor TIL111300W	6-DIP		10.16 mm	DC	10 µs	10 µs	100 mA	Through Hole	100 °C	-55 °C	2 mA	1	6-DIP	30 V	5300 Vrms	400 mV	10.16 mm
ON Semiconductor TIL111SM	6-SMD Gull Wing			DC	10 µs	10 µs	60 mA	Surface Mount	100 °C	-40 °C	2 mA	1	6-SMD	30 V	7500 Vpk	400 mV
ON Semiconductor TIL111W	6-DIP		10.16 mm	DC			100 mA	Through Hole	100 °C	-55 °C	2 mA	1	6-DIP	30 V	5300 Vrms	400 mV	10.16 mm

Catalog

6-Pin DIP Phototransistor Output Optocoupler

Key Features

• UL recognized (File #E90700)

• VDE recognized (File #94766); (File #102497 for white package)

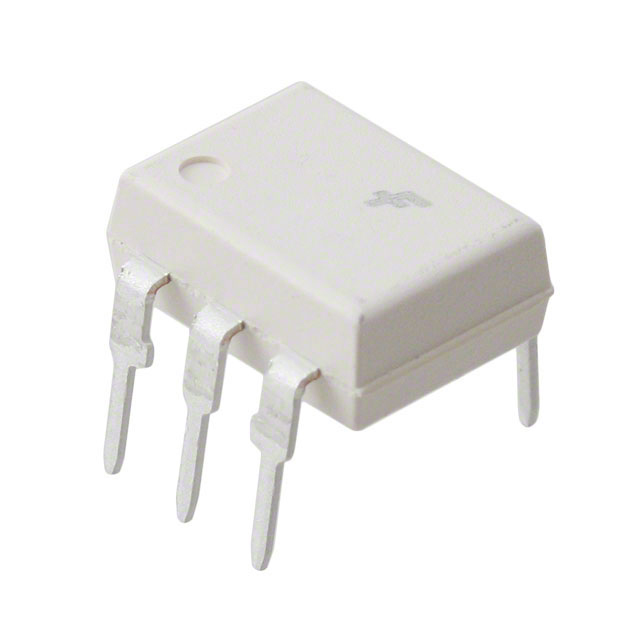

• Add option V for white package (e.g., TIL111VM)

Description

The MOC8100, TIL111 and TIL117 optocouplers consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package.
