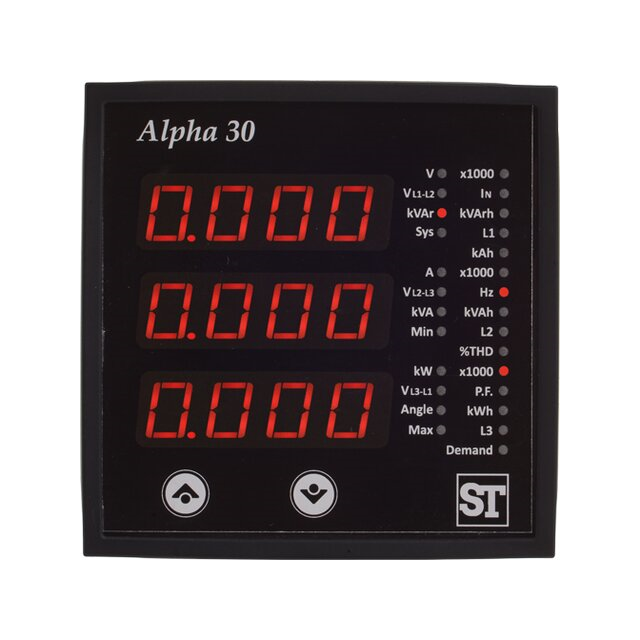

AP30-23G Series
Manufacturer: Sifam Tinsley Instrumentation Inc
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
MULTI METER 480V LCD PANEL MOUNT
| Part | Ingress Protection (Front) | Ingress Protection (Rear) | Type | Termination Style | Operating Temperature (Max) | Operating Temperature (Min) | Ingress Protection IP Rating | Ingress Protection Description | Measuring Range (Current) Maximum | Measuring Range (Voltage) Minimum | Measuring Range (Voltage) Maximum | Number of Characters Per Row (Row 1) | Number of Characters Per Row (Row 2) | Number of Characters Per Row (Row 3) | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Voltage - Supply (Range 2 Minimum) | Voltage - Supply (Range 1 Minimum) | Voltage - Supply (Range 2 Maximum) | Voltage - Supply (Range 1 Maximum) | Display Type | Measuring Type | Mounting Type | Display Characters - Height | Analog (Count) | Output Type | Features | Measuring Range (Current) Minimum | Measuring Range (Frequency) Maximum | Measuring Range (Frequency) Minimum | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sifam Tinsley Instrumentation Inc | IP65 | IP20 | Energy Monitor Frequency Multifunction Meter (Current Power) Voltage | Screw Terminal Wire Leads | 70 °C | -20 °C | IP54 | Dust Protected Water Resistant | 5 A | 100 V | 500 VAC | 4 characters | 4 characters | 4 characters | 92 mm | Square | 92 mm | 45 Hz | 60 VAC/DC | 65 Hz | 300 VAC | LCD - Red Characters | Current (3-Phase) Voltage Wattage | Panel Mount | 0.713 in | 2 | Analog Relay | Pulse Meter | |||||
 Sifam Tinsley Instrumentation Inc | Energy Monitor Frequency Multifunction Meter (Current Power) Voltage | Screw Terminal Wire Leads | 70 °C | -20 °C | IP54 | Dust Protected Water Resistant | 5 A | 0 V | 480 VAC 500 VAC | 4 characters | 4 characters | 4 characters | 92.8 mm | Square | 92.8 mm | LCD - Red Characters | Current (3-Phase) Voltage Wattage | Panel Mount | 0.713 in | 2 | Analog Relay | Pulse Meter | 0 A 1 A | 65 Hz | 45 Hz | 100 VAC | 250 VAC |
