317-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K

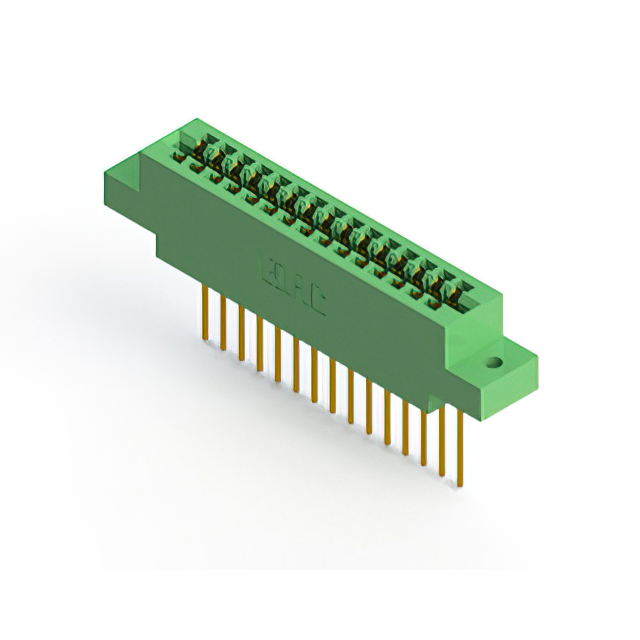

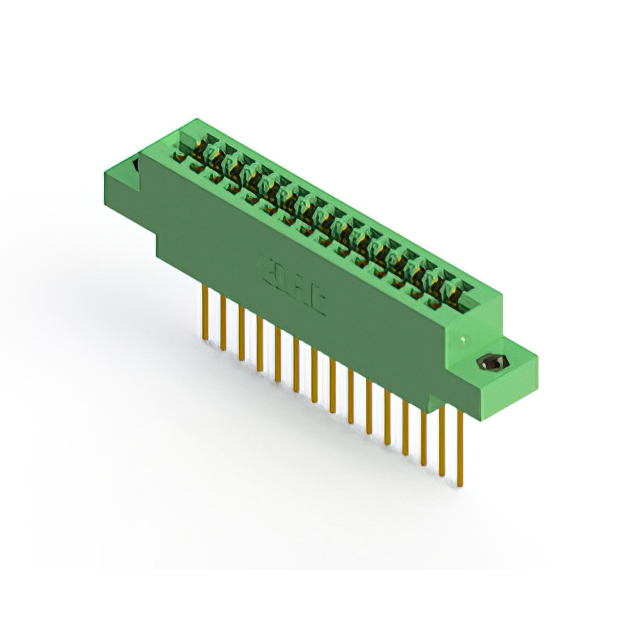

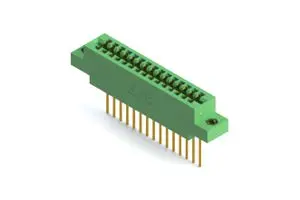

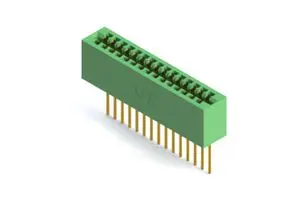

CONN EDGE DUAL FMALE 30POS 0.156
| Part | Material - Insulation | Number of Positions | Contact Material | Color | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Contact Finish | Flange Feature | Features | Card Type | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Gender | Number of Positions/Bay/Row | Number of Rows [custom] | Read Out | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 30 | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | 4-40 Threaded Insert Top Mount Opening | Card Guides | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Cantilever | Through Hole | -65 ░C | 125 °C | Wire Wrap | Female | 15 | 2 | Single | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 30 | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Cantilever | Through Hole | -65 ░C | 125 °C | Wire Wrap | Female | 15 | 2 | Single | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 30 | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Cantilever | Through Hole | -65 ░C | 125 °C | Wire Wrap | Female | 15 | 2 | Single | 0.156 " | 3.96 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 30 | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Cantilever | Through Hole | -65 ░C | 125 °C | Wire Wrap | Female | 15 | 2 | Single | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 30 | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Cantilever | Through Hole | -65 ░C | 125 °C | Wire Wrap | Female | 15 | 2 | Single | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 30 | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Gold | Floating Bobbin Flush Mount | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Cantilever | Through Hole | -65 ░C | 125 °C | Wire Wrap | Female | 15 | 2 | Single | 0.116 " | 2.95 mm |
