GX-8M Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

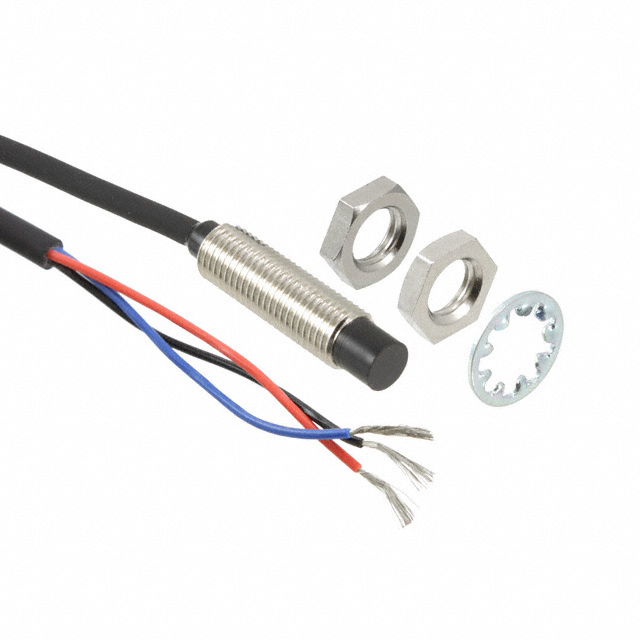

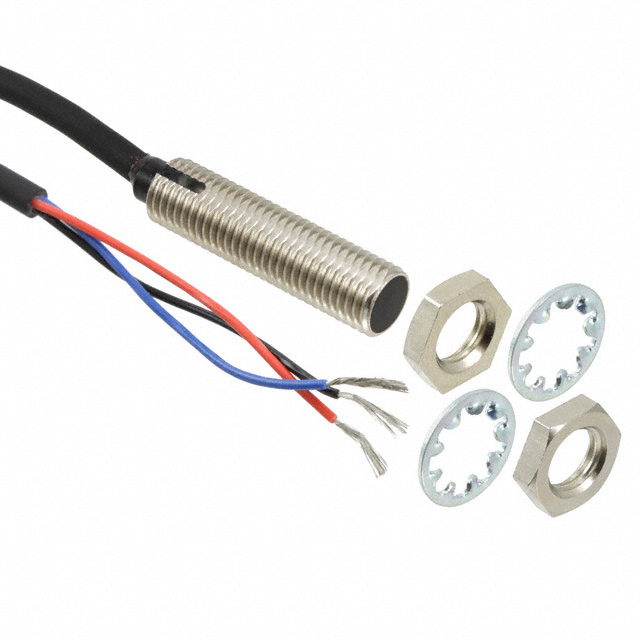

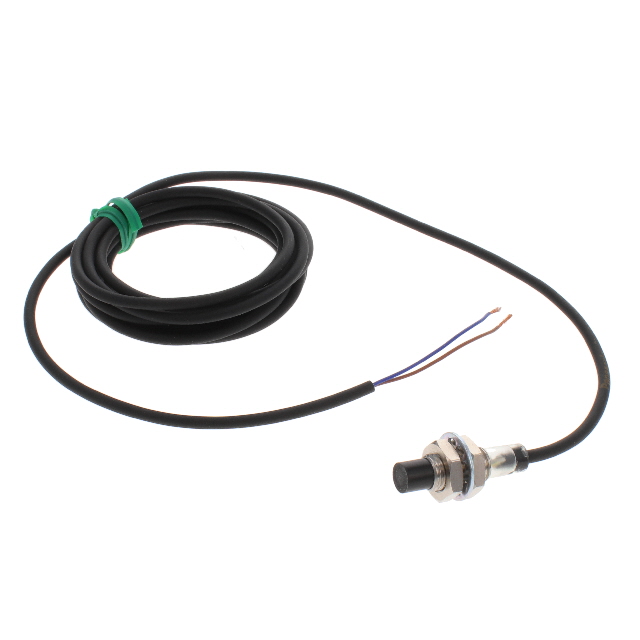

SENSOR PROX INDUCT 0.8MM CYLIND
| Part | Indicator [custom] | Shielding | Termination Style | Response Frequency | Sensor Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensing Distance | Sensing Distance | Material - Body | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | LED | Shielded | Cable Leads | 1 kHz | Inductive | 30 VDC | 10 VDC | 0.8 mm | 0.031 " | Nickel-Plated Brass | NPN-NC 3-Wire | 70 °C | -25 °C | IP67 | Cylinder Threaded - M8 |
 Panasonic Industrial Automation Sales | LED | Shielded | Cable Leads | 1.2 kHz | Inductive | 24 V | 12 V | 1.6 mm | 0.063 " | Stainless Steel | NPN-NC 2-Wire | 70 °C | -25 °C | IP67 | Cylinder Threaded - M8 |
Panasonic Industrial Automation Sales | LED | Shielded | Cable Leads | 1.2 kHz | Inductive | 24 V | 12 V | 1.6 mm | 0.063 " | Stainless Steel | 2-Wire NPN-NO | 70 °C | -25 °C | IP67 | Cylinder Threaded - M8 |
Panasonic Industrial Automation Sales | LED | Shielded | Cable Leads | 1 kHz | Inductive | 30 VDC | 10 VDC | 0.8 mm | 0.031 " | Nickel-Plated Brass | NPN-NC 3-Wire | 70 °C | -25 °C | IP67 | Cylinder Threaded - M8 |
 Panasonic Industrial Automation Sales | LED | Shielded | Cable Leads | 1 kHz | Inductive | 30 VDC | 10 VDC | 0.8 mm | 0.031 " | Nickel-Plated Brass | NPN-NO 3-Wire | 70 °C | -25 °C | IP67 | Cylinder Threaded - M8 |
 Panasonic Industrial Automation Sales | LED | Unshielded | Cable Leads | 500 Hz | Inductive | 30 VDC | 10 VDC | 1.6 mm | 0.063 " | Nickel-Plated Brass | NPN-NC 3-Wire | 70 °C | -25 °C | IP67 | Cylinder Threaded - M8 |
 Panasonic Industrial Automation Sales | LED | Unshielded | Cable Leads | 1 kHz | Inductive | 24 V | 12 V | 3.2 mm | 0.126 " | Stainless Steel | NPN-NC 2-Wire | 70 °C | -25 °C | IP67 | Cylinder Threaded - M8 |
Panasonic Industrial Automation Sales | LED | Unshielded | Cable Leads | 500 Hz | Inductive | 30 VDC | 10 VDC | 1.6 mm | 0.063 " | Nickel-Plated Brass | NPN-NO 3-Wire | 70 °C | -25 °C | IP67 | Cylinder Threaded - M8 |
Panasonic Industrial Automation Sales | LED | Shielded | Cable Leads | 1 kHz | Inductive | 30 VDC | 10 VDC | 0.8 mm | 0.031 " | Nickel-Plated Brass | NPN-NC 3-Wire | 70 °C | -25 °C | IP67 | Cylinder Threaded - M8 |
Panasonic Industrial Automation Sales | LED | Shielded | Cable Leads | 1.2 kHz | Inductive | 24 V | 12 V | 1.6 mm | 0.063 " | Stainless Steel | 2-Wire NPN-NO | 70 °C | -25 °C | IP67 | Cylinder Threaded - M8 |
