BGC87 Series
Manufacturer: TE Intercontec
Beta
⌘K

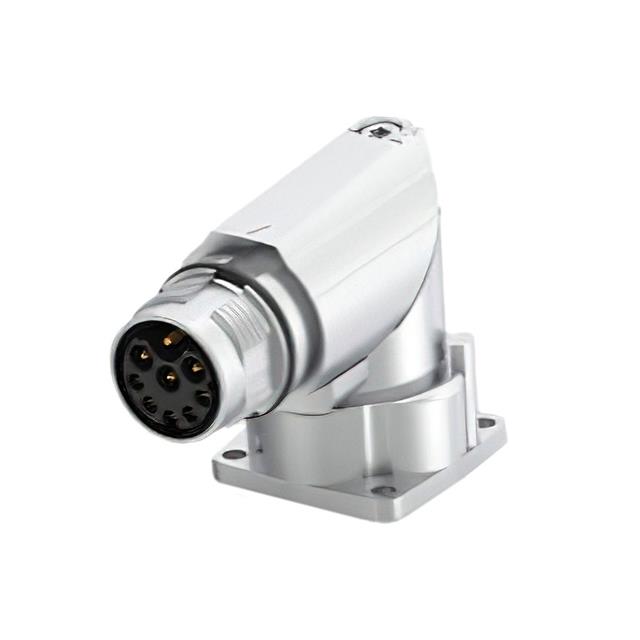

CONN RCPT HSG MALE 7P PNL MT RA
| Part | Note | Includes | Orientation | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Shell Material | Features | Insert Material | Shell Size - Insert | Contact Shape | Shielding | Fastening Type | Ingress Protection | Material Flammability Rating | Connector Type | Type | Housing Color | Shell Finish | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | Contacts Not Included | 1 Backshell 1 Connector 1 O-Ring | Keyed | Flange | -20 ░C | 130 °C | 7 | Zinc Die Cast | Backshell Rotatable | Polybutylene Terephthalate (PBT) | M17-7 | Circular | Unshielded | Push-Twist | IP66 IP67 | UL94 V-0 | Receptacle Housing | For Male Pins | Silver | Chromate | Panel Mount Right Angle |
 TE Intercontec | Contacts Not Included | 1 Backshell 1 Connector 1 O-Ring | Keyed | Flange | -20 ░C | 130 °C | 7 | Zinc Die Cast | Backshell Rotatable | Polybutylene Terephthalate (PBT) | M17-7 | Circular | Unshielded | Push-Twist | IP66 IP67 | UL94 V-0 | Receptacle Housing | For Male Pins | Silver | Chromate | Panel Mount Right Angle |
