R16124 Series

Catalog

N / STRAIGHT JACK FULL CRIMP-TYP

Part	Dielectric Material	Mating Cycles	Center Contact Plating	Voltage Rating	Body Material	Body Finish	Insertion Loss	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Mounting Type	Cable Group	Cable Group	Center Contact Material	Ingress Protection	Housing Color	Connector Type	Shield Termination	Connector Style	Frequency - Max [Max]	Impedance	Fastening Type	Contact Termination
Radiall USA, Inc. R161243000W	Polytetrafluoroethylene (PTFE)	500	Gold	1400 V	Brass	White Bronze	0.15 dB	155 C	-55 C	1	Free Hanging (In-Line)	225	RG-214	Beryllium Copper	IP67 - Dust Tight Waterproof	Silver	Female Socket Jack	Crimp	N Type	11 GHz	50 Ohms	Threaded	Crimp
Radiall USA, Inc. R161243000	Polytetrafluoroethylene (PTFE)	500	Gold	1400 V	Brass	White Bronze	0.15 dB	155 C	-55 C	1	Free Hanging (In-Line)	225	RG-214	Beryllium Copper	IP67 - Dust Tight Waterproof	Silver	Female Socket Jack	Crimp	N Type	11 GHz	50 Ohms	Threaded	Crimp

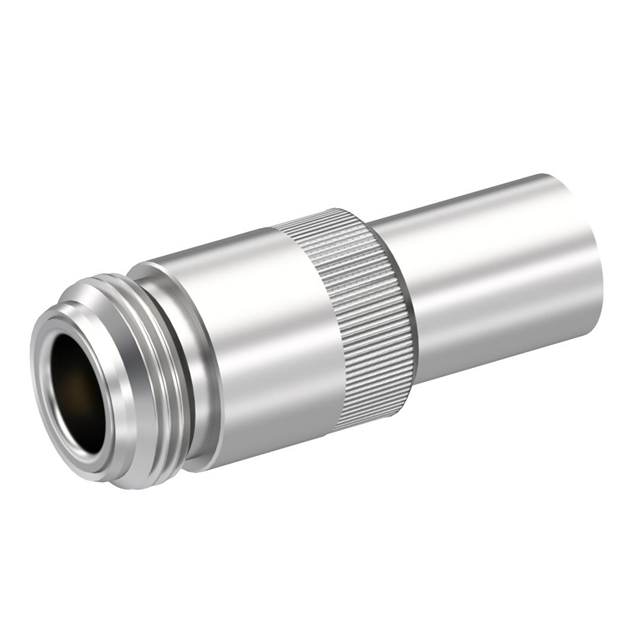

Radiall USA, Inc. R161241000	Polytetrafluoroethylene (PTFE)	500	Gold	1400 V	Brass	White Bronze	0.15 dB	155 C	-55 C	1	Free Hanging (In-Line)	213	RG-165	Beryllium Copper	IP67 - Dust Tight Waterproof	Silver	Female Socket Jack	Crimp	N Type	11 GHz	50 Ohms	Threaded	Crimp
Radiall USA, Inc. R161241000W	Polytetrafluoroethylene (PTFE)	500	Gold	1400 V	Brass	White Bronze	0.15 dB	155 C	-55 C	1	Free Hanging (In-Line)	213	RG-165	Beryllium Copper	IP67 - Dust Tight Waterproof	Silver	Female Socket Jack	Crimp	N Type	11 GHz	50 Ohms	Threaded	Crimp
