XC9501 Series

Catalog

2CH.STEP-UP/UP DC/DC CONTROLLER

Part	Package / Case	Topology	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Number of Outputs	Function	Control Features	Output Phases	Duty Cycle (Max) [Max]	Output Configuration	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Mounting Type	Frequency - Switching

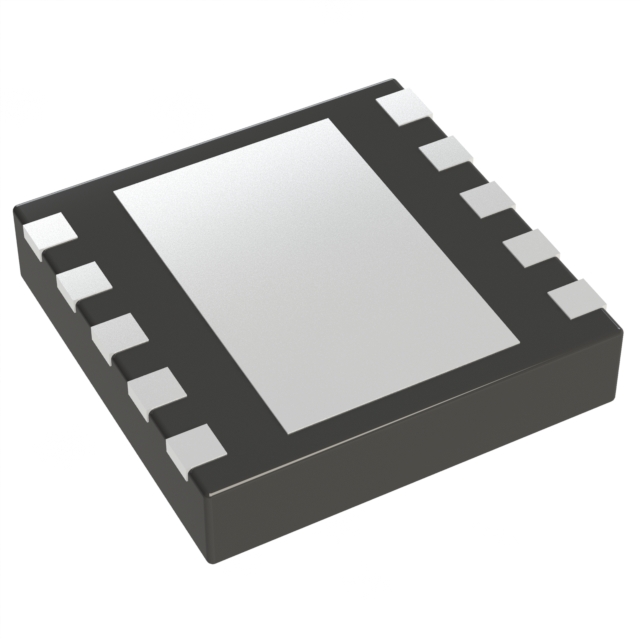

Torex Semiconductor Ltd XC9501B092DR-G	10-UFDFN Exposed Pad	Boost	10 V	2 V	2	Step-Up	Enable	2	80 %	Positive	2.5	10-USP	2.7	85 °C	-40 C	PWM Signal	Surface Mount	180 kHz
Torex Semiconductor Ltd XC9501B095DR-G	10-UFDFN Exposed Pad	Boost	10 V	2 V	2	Step-Up	Enable	2	80 %	Positive	2.5	10-USP	2.7	85 °C	-40 C	PWM Signal	Surface Mount	500 kHz
Torex Semiconductor Ltd XC9501B091DR-G	10-UFDFN Exposed Pad	Boost	10 V	2 V	2	Step-Up	Enable	2	80 %	Positive	2.5	10-USP	2.7	85 °C	-40 C	PWM Signal	Surface Mount	100 kHz
