R12568 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

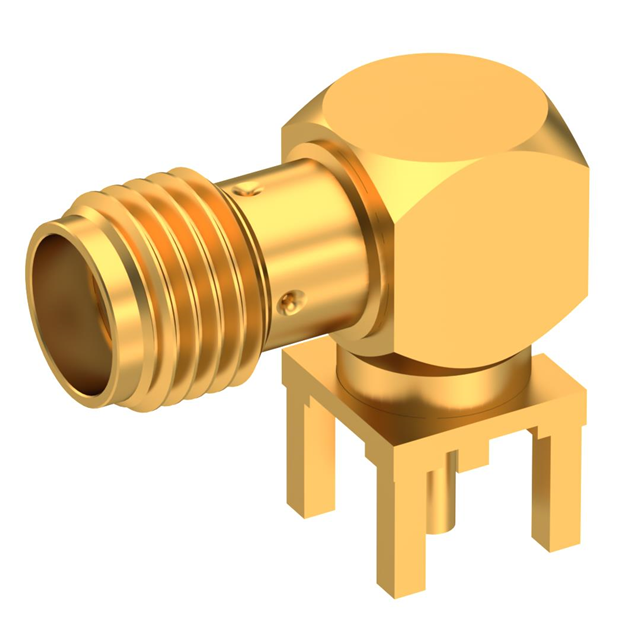

SMA F RA SMT C100
| Part | Voltage Rating | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Mating Cycles | Center Contact Plating | Connector Style | Frequency - Max [Max] | Shield Termination | Contact Termination | Housing Color | Mounting Type | Connector Type | Center Contact Material | Impedance | Number of Ports | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 V | Stainless Steel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | 500 | Gold | SMA | 18 GHz | Solder | Solder | Gold | Right Angle Through Hole | Female Socket Jack | Beryllium Copper | 50 Ohms | 1 | Threaded |
