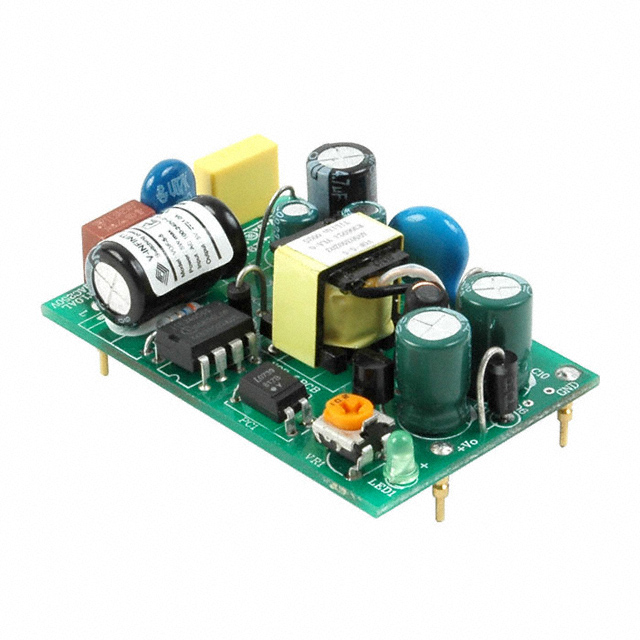

VOF-6 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 12V 6W

Part	Line Regulation	Load Regulation	Type	Mounting Type	Features	Power (Watts)	Operating Temperature [Max]	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Standard Number	Efficiency	Approval Agency	Package / Case	Voltage - Output 1	Load Regulation	Line Regulation
CUI Inc. VOF-6-12	0.5 %	±1%	Open Frame	Through Hole	Universal Input	6 W	60 °C	500 mA	1	85 VAC 120 VDC	264 VAC 375 VDC	ITE (Commercial)	2.16 in	35 mm	21 mm	54.9 mm	1.38 in	0.83 "	55024 60950-1 61000-3-2 61000-3-3	77 %	CB Scheme EN IEC SIQ TUV UL	4-DIP Module	12 V
CUI Inc. VOF-6-5	0.5 %	±1%	Open Frame	Through Hole	Universal Input	6 W	60 °C	1.2 A	1	85 VAC 120 VDC	264 VAC 375 VDC	ITE (Commercial)	2.16 in	35 mm	21 mm	54.9 mm	1.38 in	0.83 "	55024 60950-1 61000-3-2 61000-3-3	73 %	CB Scheme EN IEC SIQ TUV UL	4-DIP Module	5 V
CUI Inc. VOF-6-24	0.5 %	±1%	Open Frame	Through Hole	Universal Input	6 W	60 °C	250 mA	1	85 VAC 120 VDC	264 VAC 375 VDC	ITE (Commercial)	2.16 in	35 mm	21 mm	54.9 mm	1.38 in	0.83 "	55024 60950-1 61000-3-2 61000-3-3	80 %	CB Scheme EN IEC SIQ TUV UL	4-DIP Module	24 V
CUI Inc. VOF-6-15			Open Frame	Through Hole	Universal Input	6 W	60 °C	400 mA	1	85 VAC 120 VDC	264 VAC 375 VDC	ITE (Commercial)	2.16 in	35 mm	21 mm	54.9 mm	1.38 in	0.83 "	55024 60950-1 61000-3-2 61000-3-3	78 %	CB Scheme EN IEC SIQ TUV UL	4-DIP Module	15 V	1 %	Ý0.5%
