627W7W Series

Manufacturer: EDAC Inc.

Catalog

CONN D-SUB PLG 7POS PNL MNT SLDR

Part	Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Material	Dielectric Material	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Shell Material, Finish	Termination	Connector Style	Features	Contact Type	Connector Type	Material Flammability Rating	Ingress Protection	Contact Finish	Number of Rows [custom]	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Flange Feature	Flange Feature	Current Rating (Amps)	Contact Finish Thickness

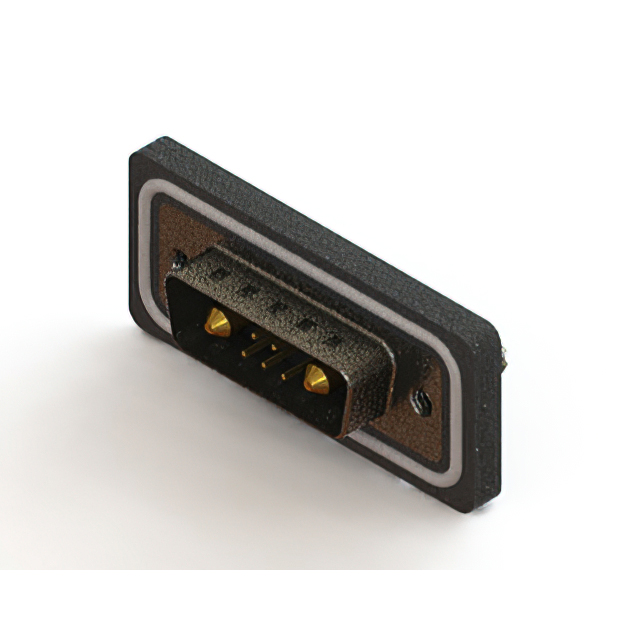

EDAC Inc. 627W7W2-624-1ND	Black	85 °C	-25 °C	125 VDC	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	7	5	2	Nickel Plated Steel	Solder	Combo D-Sub	Board Lock Grounding Indents Shielded	Signal and Power	Plug Male Pins	UL94 V-0	IP67 - Dust Tight Waterproof	Gold	2	10A 5A	A DA	2	7W2	30 Áin	0.76 Ám	Panel Mount Through Hole	Board Side (M3)
EDAC Inc. 627W7W2-124-1N2	Black	85 °C	-25 °C	125 VDC	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	7	5	2	Nickel Plated Steel	Solder	Combo D-Sub	Grounding Indents Shielded	Signal and Power	Plug Male Pins	UL94 V-0	IP67 - Dust Tight Waterproof	Gold	2	10A 5A	A DA	2	7W2	5 µin	0.127 µm	Panel Mount Through Hole	Housing/Shell	4-40
EDAC Inc. 627W7W2-122-4N2	Black	85 °C	-25 °C	125 VDC	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	7	5	2	Nickel Plated Steel		Combo D-Sub	Grounding Indents Shielded	Signal and Power	Plug Male Pins	UL94 V-0	IP67 - Dust Tight Waterproof	Gold	2		A DA	2	7W2	5 µin	0.127 µm	Panel Mount Through Hole	Housing/Shell	4-40	5 A 40 A
EDAC Inc. 627W7W2-222-1N2	Black	85 °C	-25 °C	125 VDC	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	7	5	2	Nickel Plated Steel		Combo D-Sub	Grounding Indents Shielded	Signal and Power	Plug Male Pins	UL94 V-0	IP67 - Dust Tight Waterproof	Gold	2	10A 5A	A DA	2	7W2			Panel Mount Through Hole	Housing/Shell	4-40		Flash

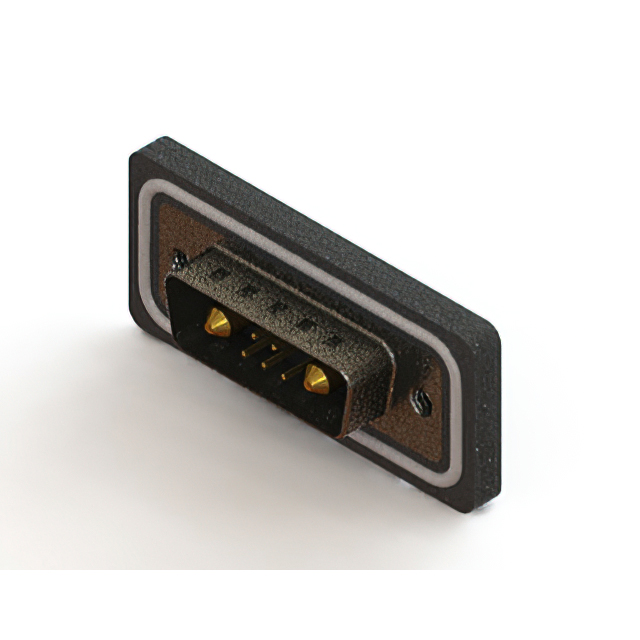

EDAC Inc. 627W7W2-124-3N2	Black	85 °C	-25 °C	125 VDC	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	7	5	2	Nickel Plated Steel	Solder	Combo D-Sub	Grounding Indents Shielded	Signal and Power	Plug Male Pins	UL94 V-0	IP67 - Dust Tight Waterproof	Gold	2		A DA	2	7W2	5 µin	0.127 µm	Panel Mount Through Hole	Housing/Shell	4-40	5 A 30 A
EDAC Inc. 627W7W2-124-2NA	Black	85 °C	-25 °C	125 VDC	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	7	5	2	Nickel Plated Steel	Solder	Combo D-Sub	Grounding Indents Shielded	Signal and Power	Plug Male Pins	UL94 V-0	IP67 - Dust Tight Waterproof	Gold	2	20A 5A	A DA	2	7W2	5 µin	0.127 µm	Panel Mount Through Hole	Housing/Shell (M3)
EDAC Inc. 627W7W2-122-1NA	Black	85 °C	-25 °C	125 VDC	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	7	5	2	Nickel Plated Steel		Combo D-Sub	Grounding Indents Shielded	Signal and Power	Plug Male Pins	UL94 V-0	IP67 - Dust Tight Waterproof	Gold	2	10A 5A	A DA	2	7W2	5 µin	0.127 µm	Panel Mount Through Hole	Housing/Shell (M3)

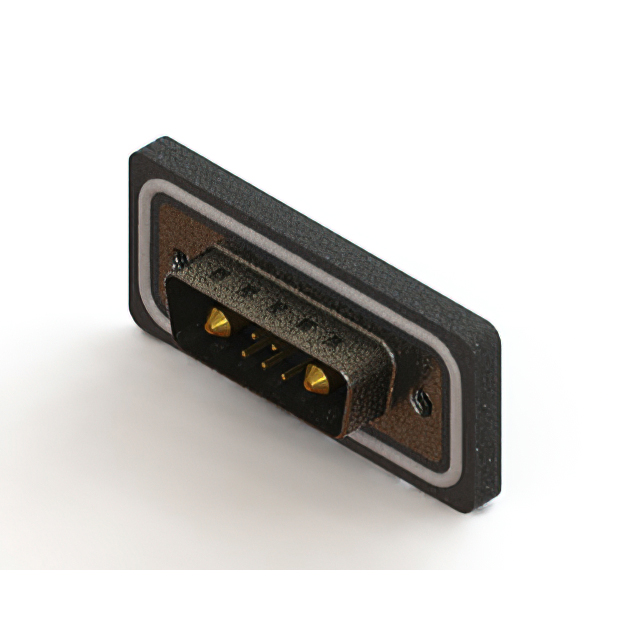

EDAC Inc. 627W7W2-324-4N2	Black	85 °C	-25 °C	125 VDC	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	7	5	2	Nickel Plated Steel	Solder	Combo D-Sub	Grounding Indents Shielded	Signal and Power	Plug Male Pins	UL94 V-0	IP67 - Dust Tight Waterproof	Gold	2		A DA	2	7W2	15 µin	0.38 µm	Panel Mount Through Hole	Housing/Shell	4-40	5 A 40 A

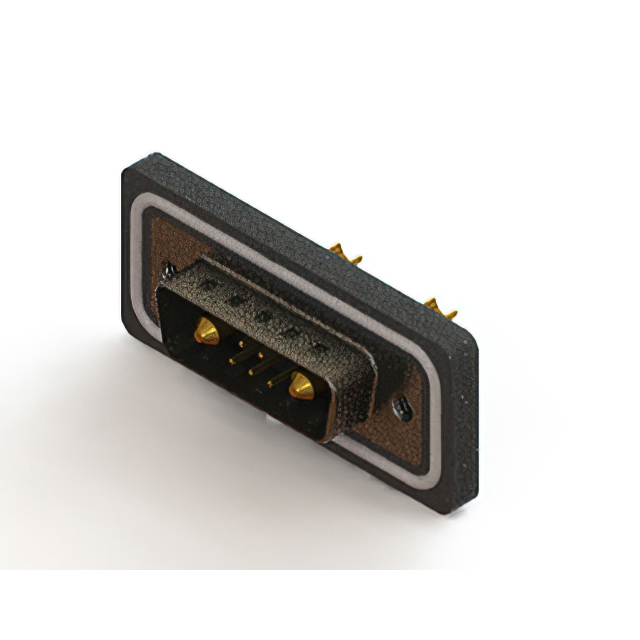

EDAC Inc. 627W7W2-122-2N2	Black	85 °C	-25 °C	125 VDC	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	7	5	2	Nickel Plated Steel		Combo D-Sub	Grounding Indents Shielded	Signal and Power	Plug Male Pins	UL94 V-0	IP67 - Dust Tight Waterproof	Gold	2	20A 5A	A DA	2	7W2	5 µin	0.127 µm	Panel Mount Through Hole	Housing/Shell	4-40
EDAC Inc. 627W7W2-322-1NA	Black	85 °C	-25 °C	125 VDC	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	7	5	2	Nickel Plated Steel		Combo D-Sub	Grounding Indents Shielded	Signal and Power	Plug Male Pins	UL94 V-0	IP67 - Dust Tight Waterproof	Gold	2	10A 5A	A DA	2	7W2	15 µin	0.38 µm	Panel Mount Through Hole	Housing/Shell (M3)
